12 41 041 Replacing solenoid switch

Turn off ignition.

Remove starter motor.

Release nut (1).

Remove cable lug (2).

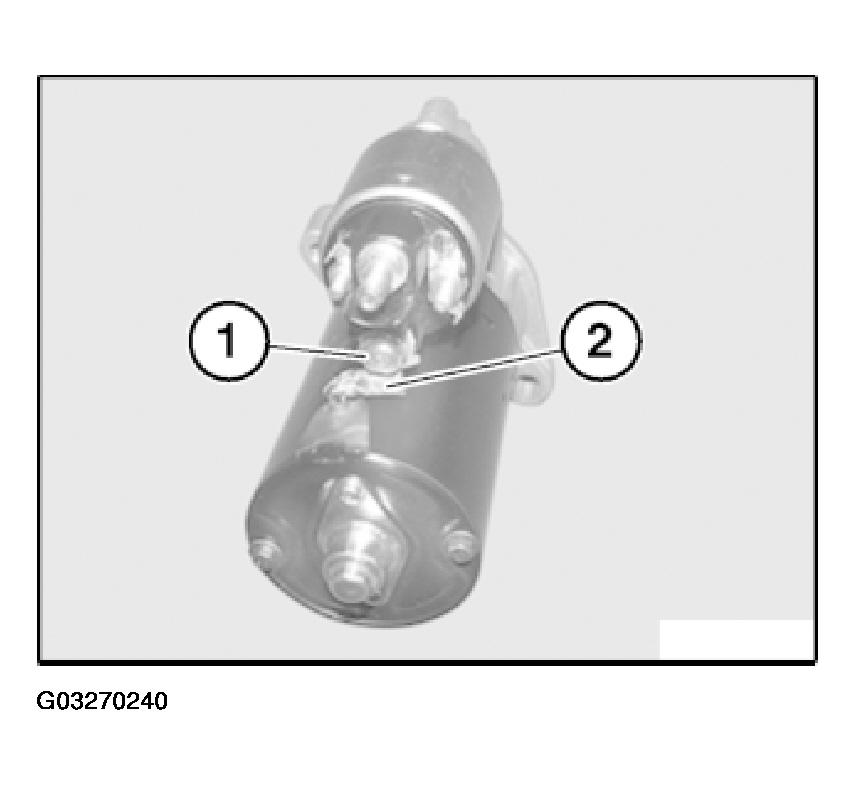

Fig 1: Removing Cable Lug

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not turn cable lug (2) while tightening down - risk of short circuit to starter motor housing. Tightening torque, refer to 12 41 4AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES - 545i (4.4L) E60/N62 .

Release screws (1).

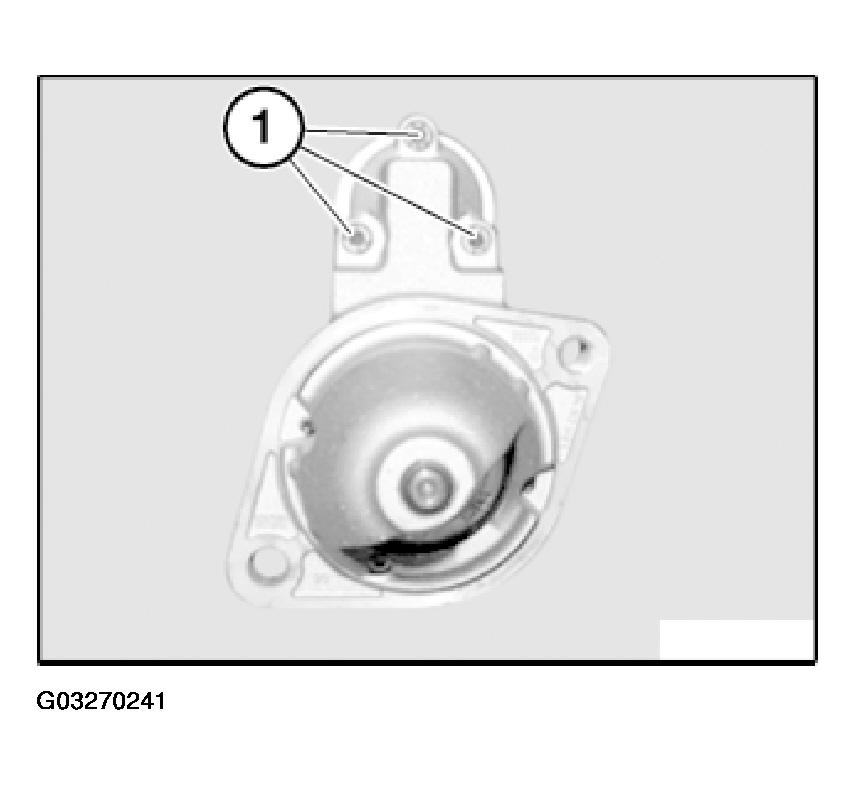

Fig 2: Identifying Retaining Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove solenoid switch (1) and spring (2).

Unhook pin (3).

Installation:

Check pin (3) for wear and apply grease.

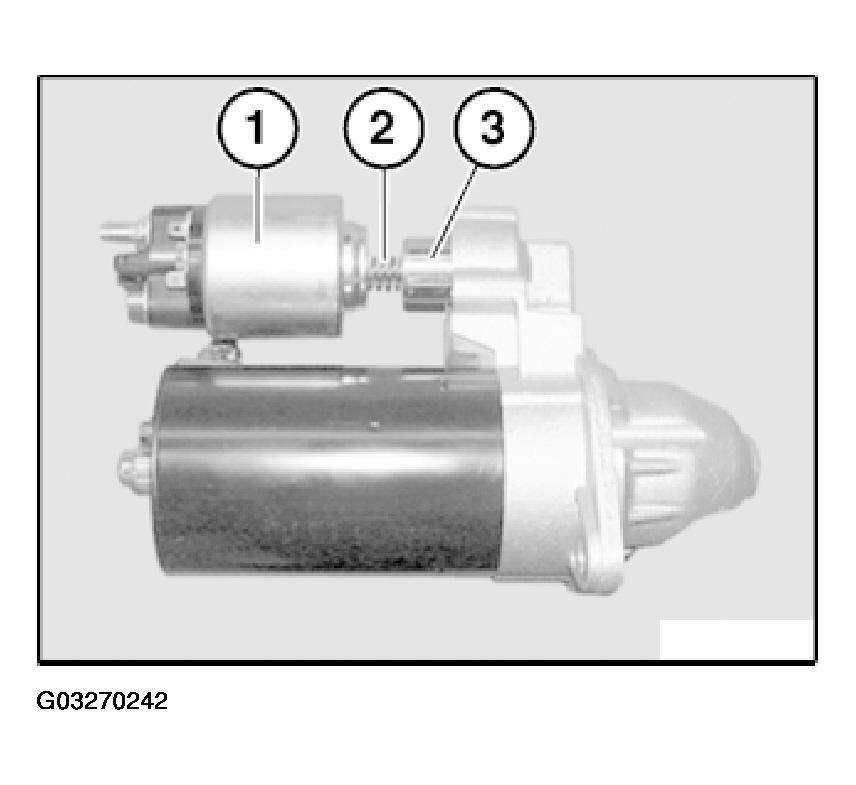

Fig 3: View Of Solenoid Switch And Spring

Courtesy of BMW OF NORTH AMERICA, INC.
