Wiring Diagrams

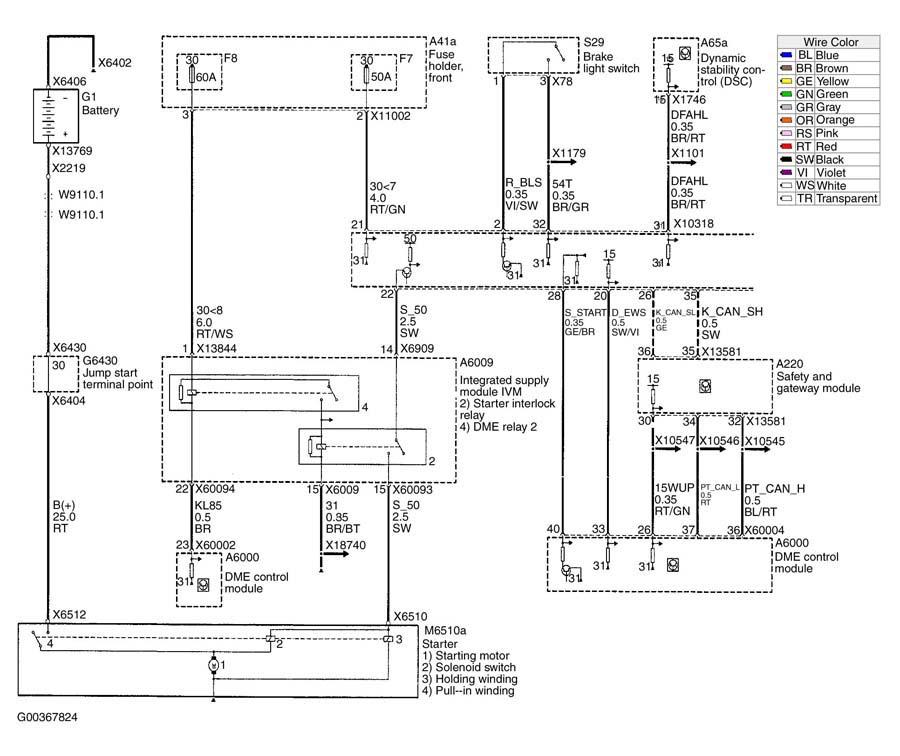

Fig 1: Starter System Wiring Diagram (1 Of 2)

G00367824

Courtesy of BMW OF NORTH AMERICA, INC.

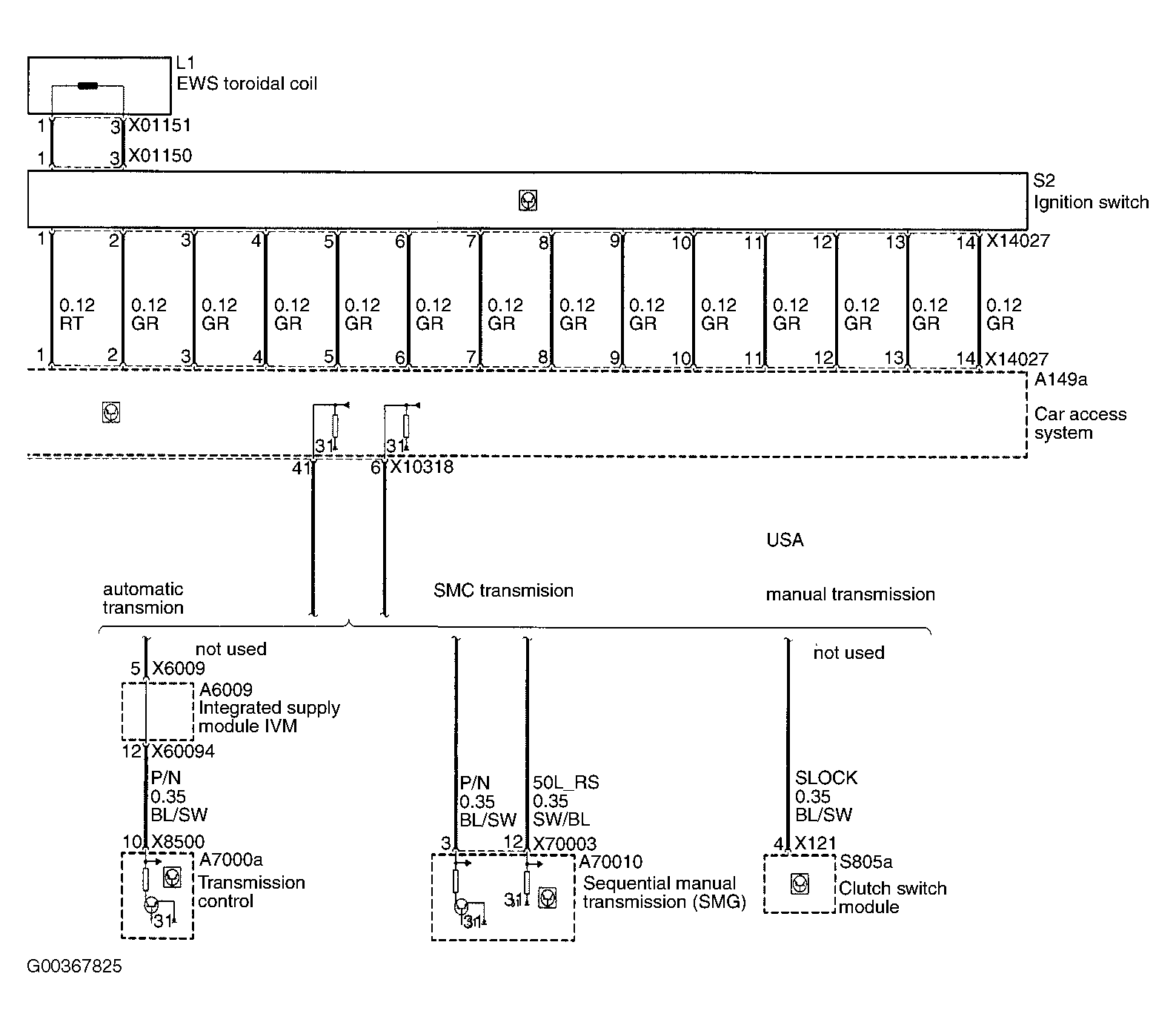

Fig 2: Starter System Wiring Diagram (2 Of 2)

G00367825

Courtesy of BMW OF NORTH AMERICA, INC.
