BMW
>>
2004
>>
545i Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Generators & Regulators
>>
Wiring Diagrams
Wiring Diagrams

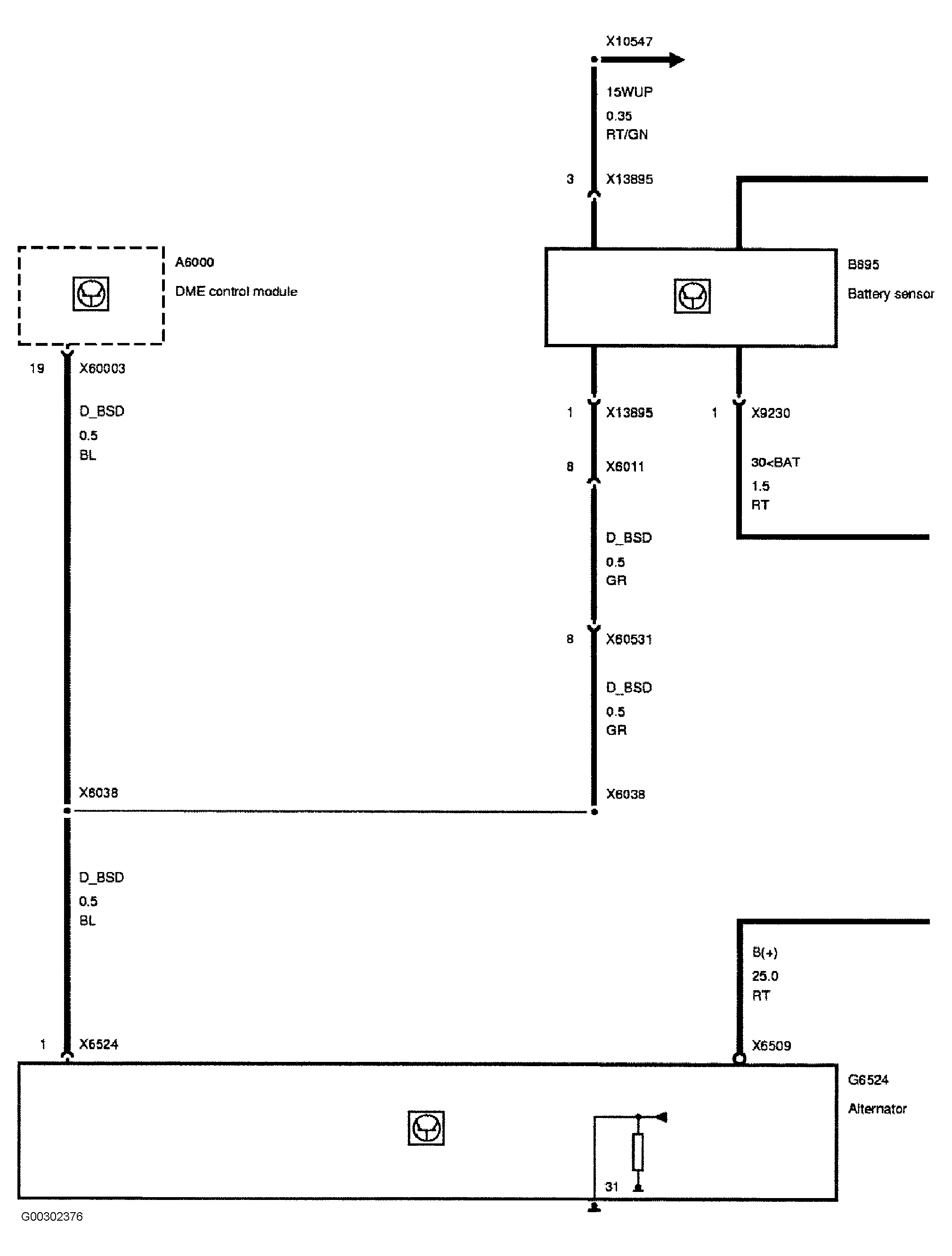

Fig 1: Wiring Diagram Charging System 545i (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

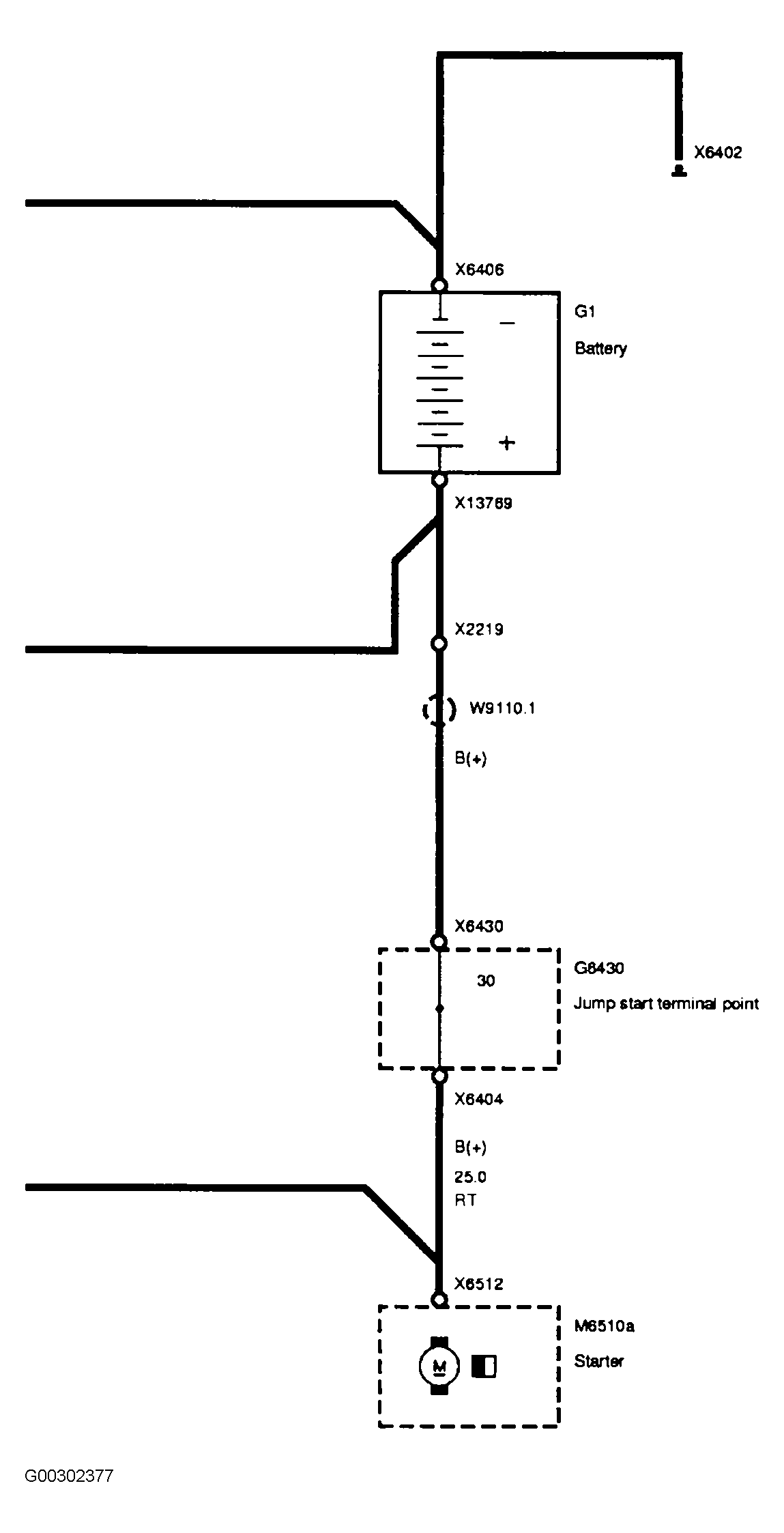

Fig 2: Wiring Diagram Charging System 545i (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
