51 21 ... Overview of front door locks

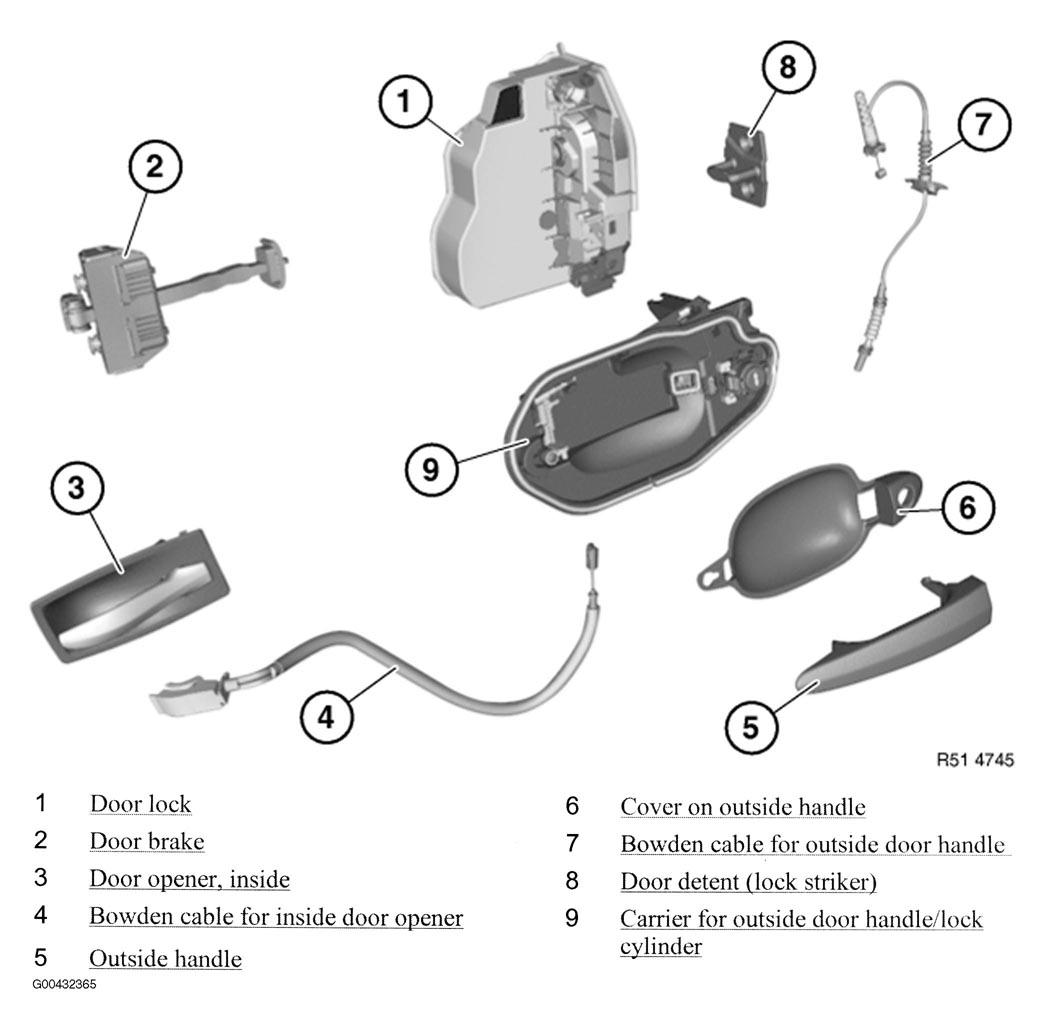

Fig 1: Overview Of Front Door Locks

G00432365

Courtesy of BMW OF NORTH AMERICA, INC.
