NEW MODEL TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B04 14 03, Date of Issue: September 2003

BMW:	E60
GROUP:	04 - Tools and Equipment

SUBJECT

New Model Tools

MODEL

E60

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. All prices on this bulletin are introductory prices and are only valid during the Automatic Tool Shipment.

TOOL INFORMATION

T25 Torx Driver

PN 90 88 6 512 220

Price = $12.25

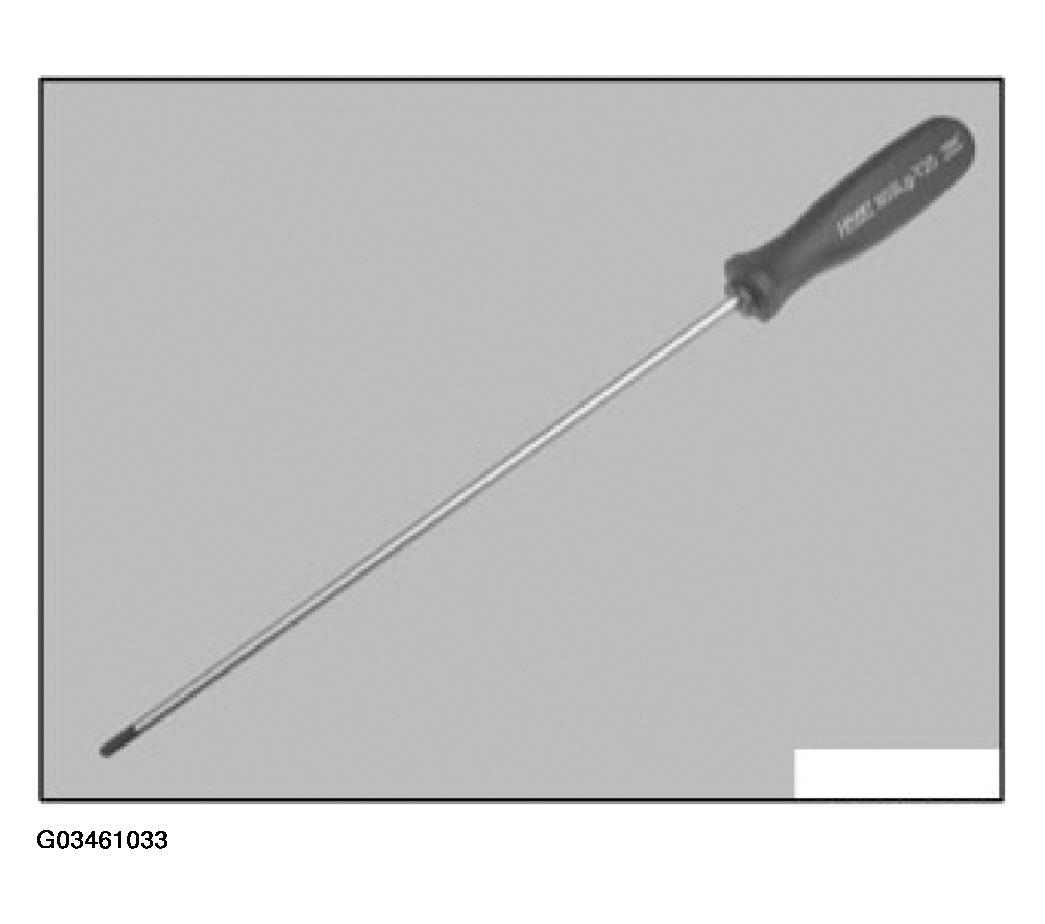

Fig 1: T25 Torx Driver Tool

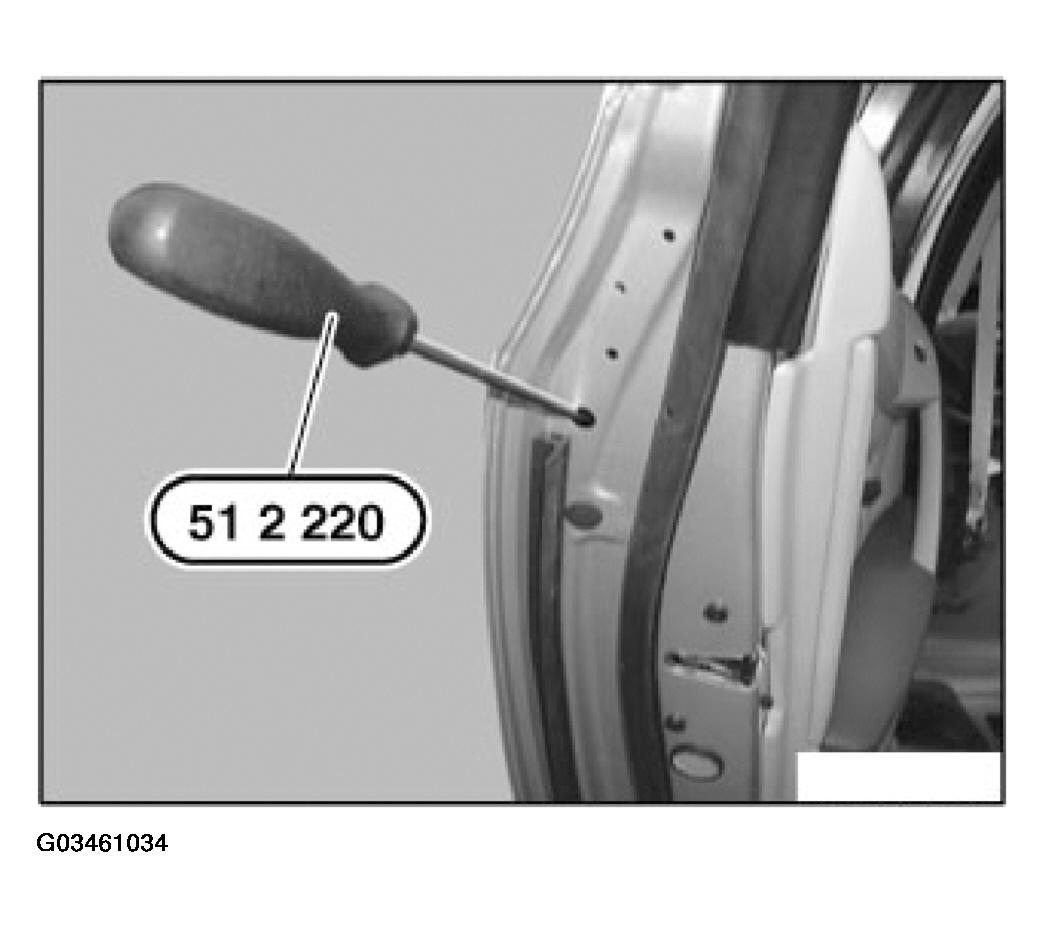

This extra long Torx driver is used to R & R the rear door handles.

Fig 2: Removing Rear Door Handle

Release Hook

PN 90 88 6 520 070

Price = $31.35

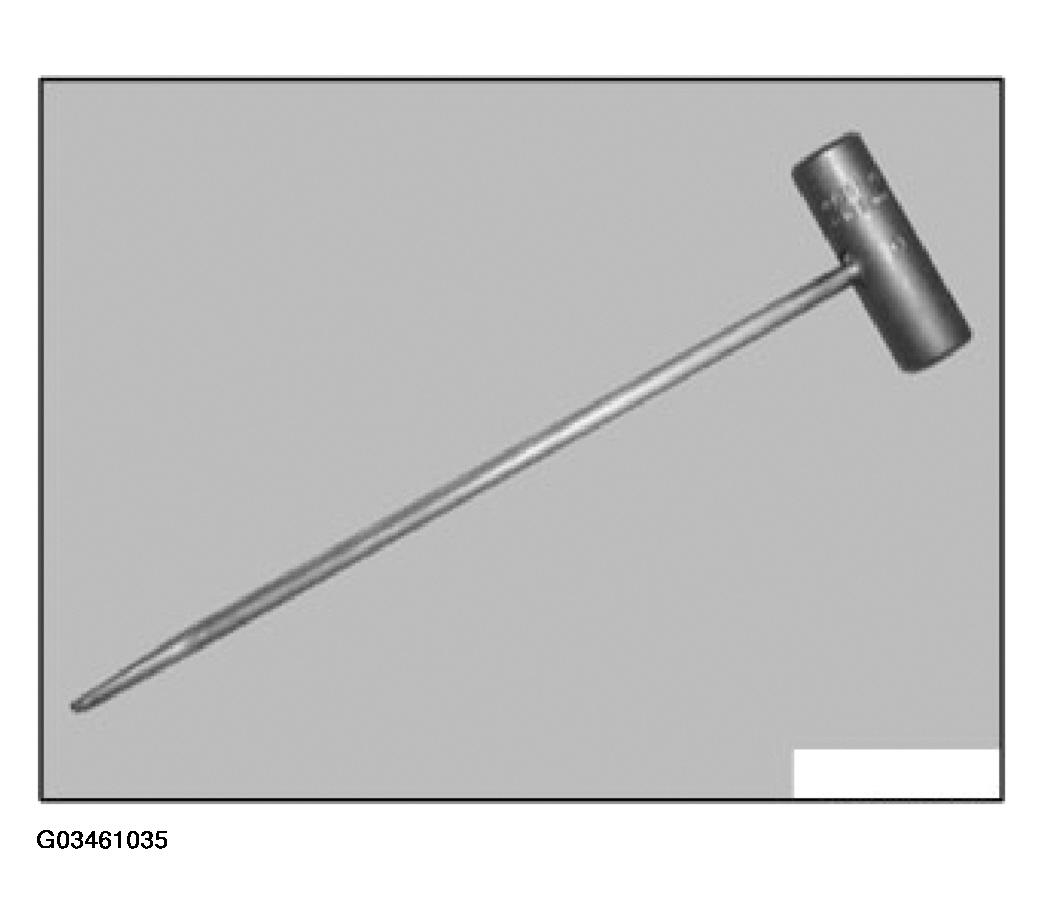

Fig 3: Release Hook

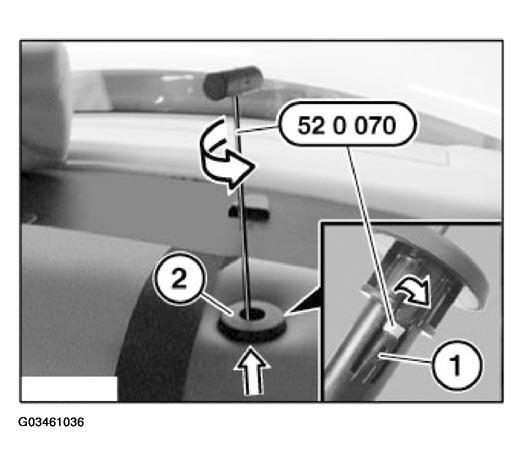

Used to remove the head restraint guides (2) by releasing the catch (1).

Fig 4: Removing Head Restraint Guide

Coolant System Adapters

PN 90 88 6 170 113/114

Price = $88.55

- Tank adapter
- Cap adapter

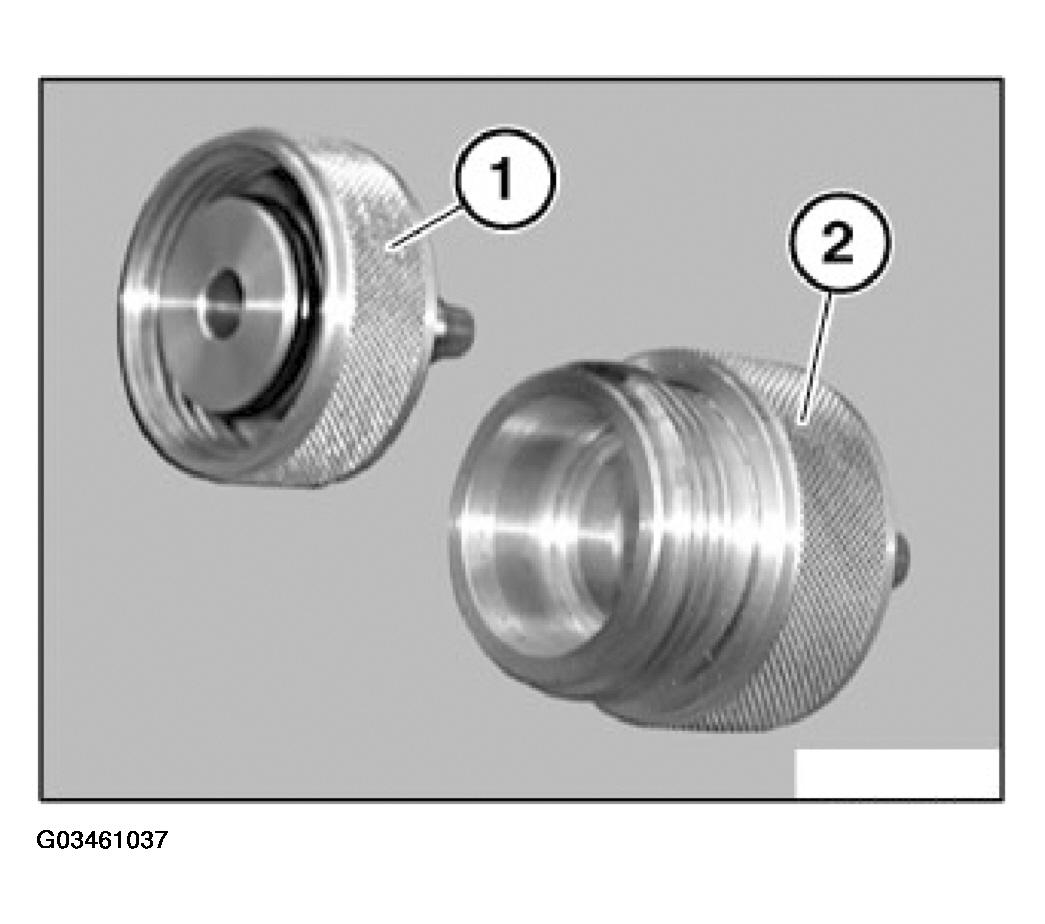

Fig 5: Coolant System Adapters

Used in conjunction with coolant system test kit 170 100 (SI B04 08 03 ) to check for leaks.

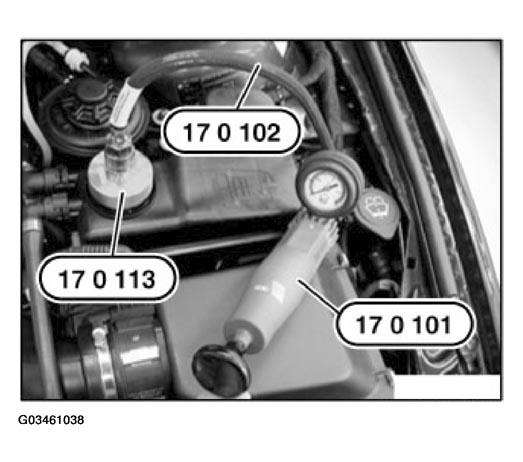

Fig 6: Coolant System Test Kit

Seal Drift

PN 90 88 6 242 400

Price = $31.20

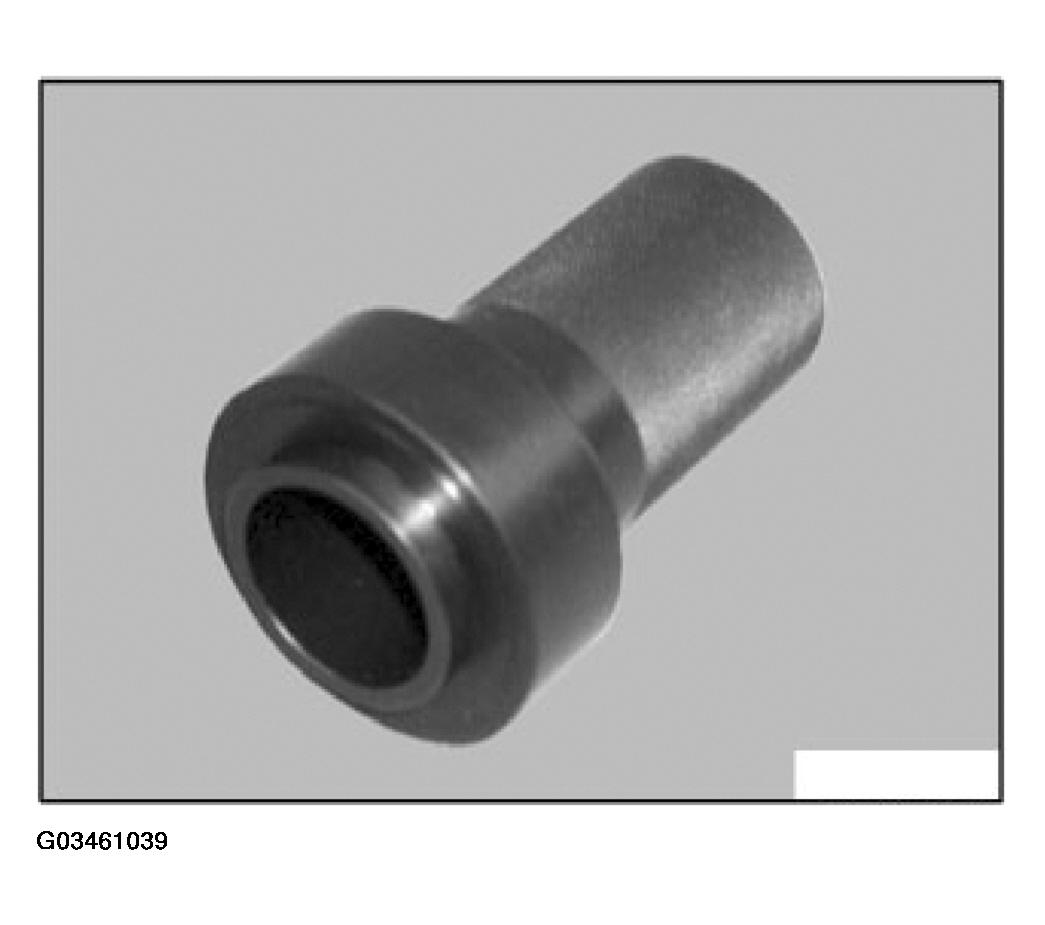

Fig 7: Seal Drift

Used to fit the radial oil seal (1) on the torque converter for the 6HP19 (GA6 HP19Z) transmission.

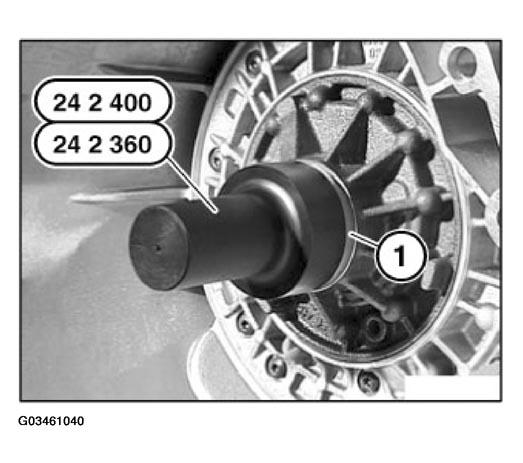

Fig 8: Fitting Torque Converter Radial Oil Seal

Camber Adjustment Tool

PN 90 88 6 323 190

Price = $62.30

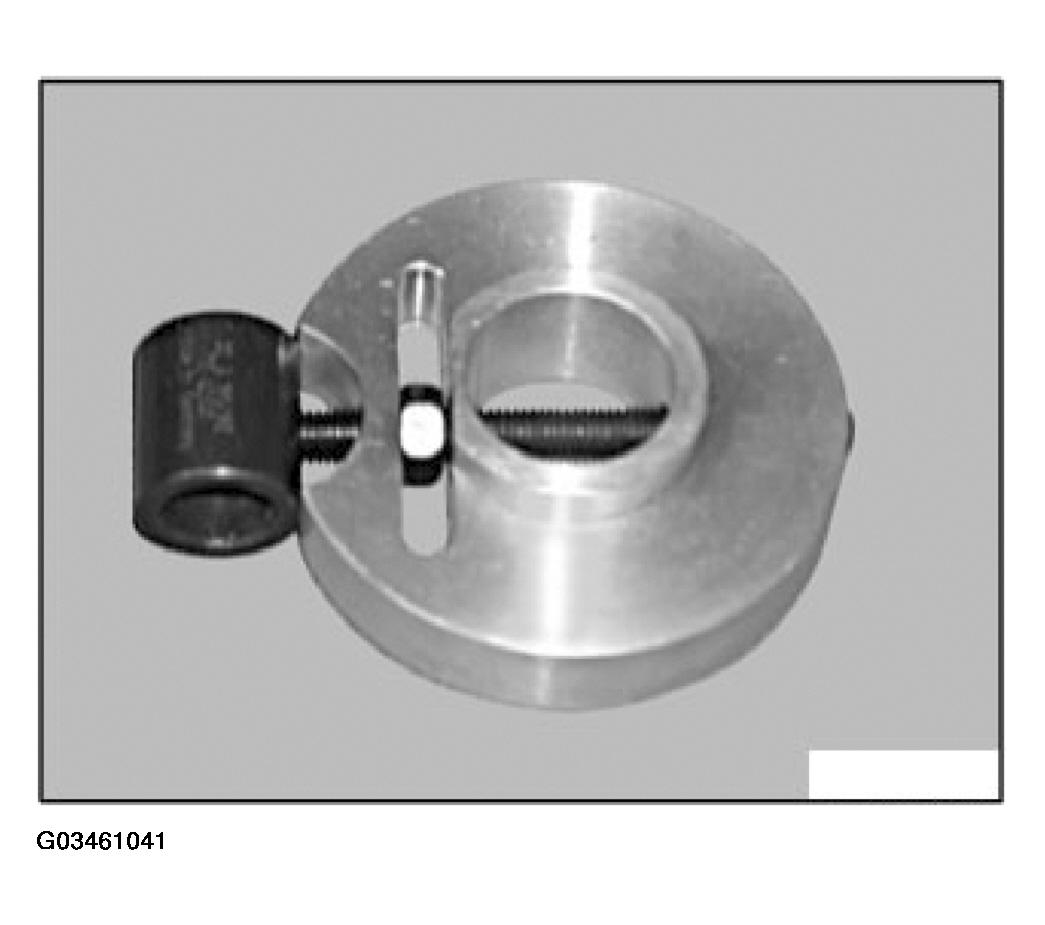

Fig 9: Camber Adjustment Tool

Used to adjust the front axle camber.

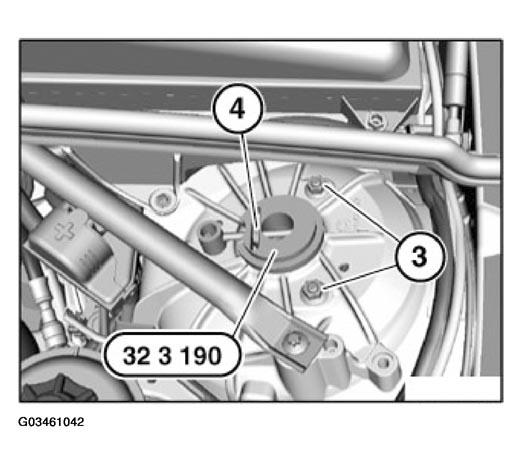

Fig 10: Adjusting Front Axle Camber

AFS Gauge

PN 90 88 6 324 150

Price = $331.90

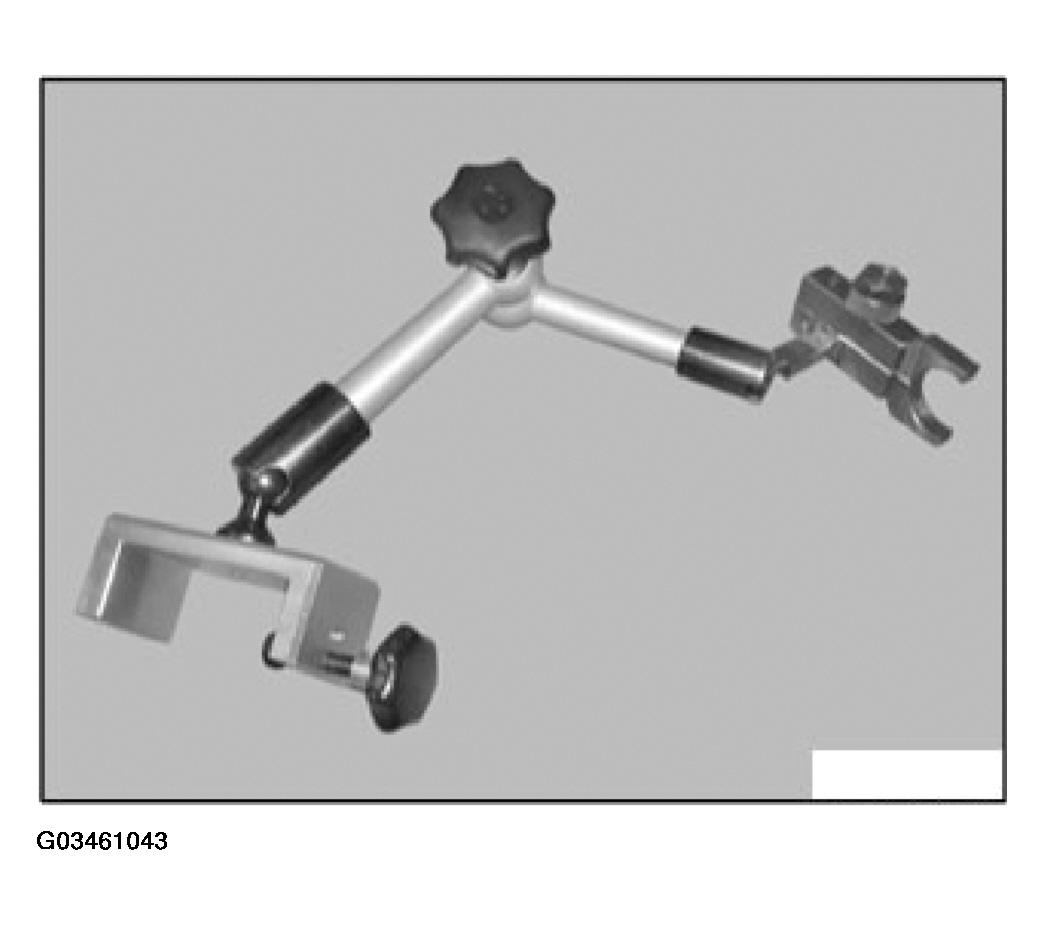

Fig 11: AFS Gauge

Must be used during wheel alignment to fix the steering shaft in place.

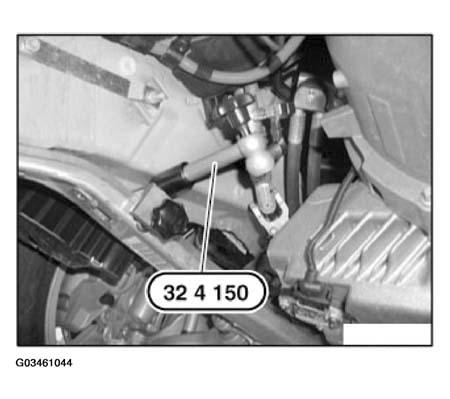

Fig 12: Fixing Steering Shaft In Place

ARS Gauge

PN 90 88 6 330 170

Price = $33.80

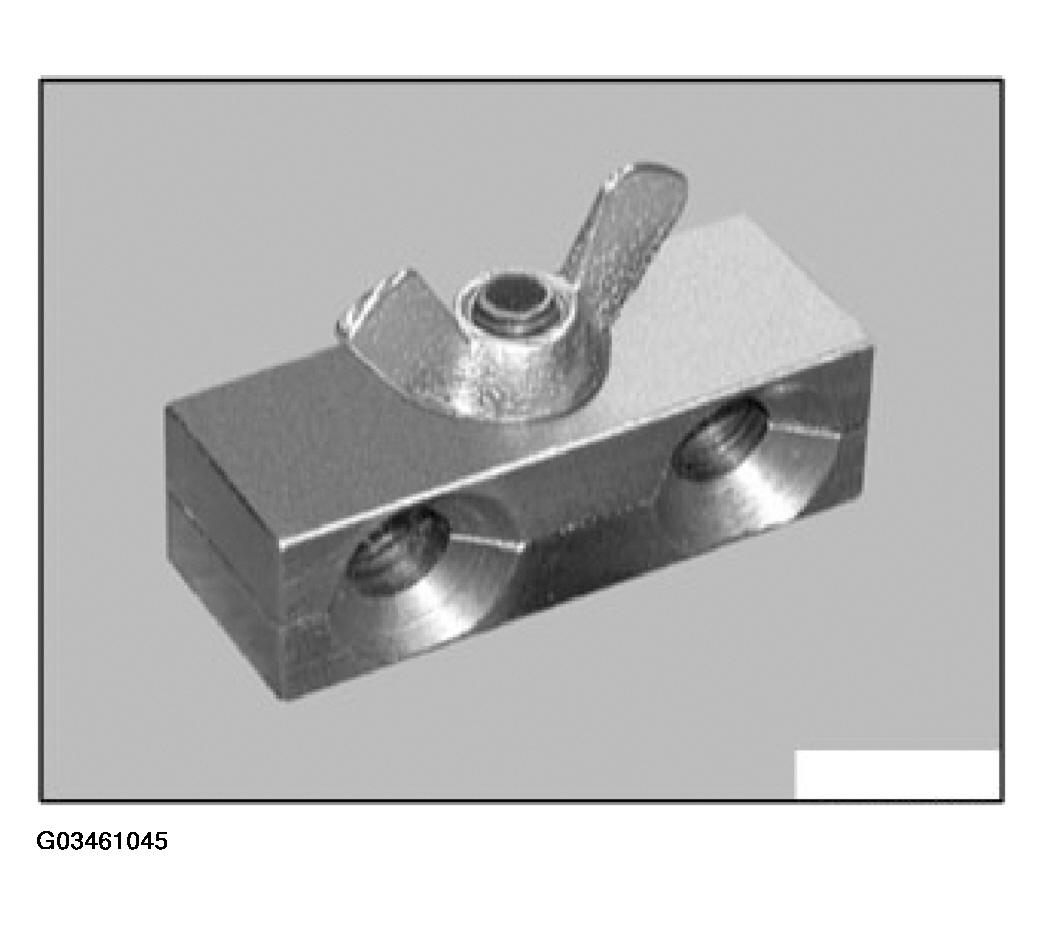

Fig 13: ARS Gauge

Used to properly position the ARS (Active Roll Stabilization lines) at the rear axle.

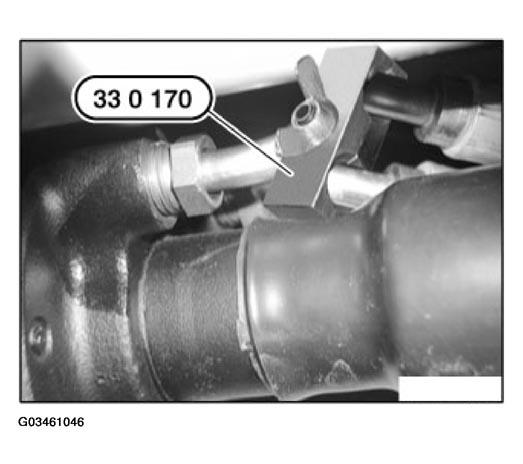

Fig 14: Positioning ARS (Active Roll Stabilization Lines) At Rear Axle

Bushing Tool

PN 90 88 6 334 270

Price = $208.60

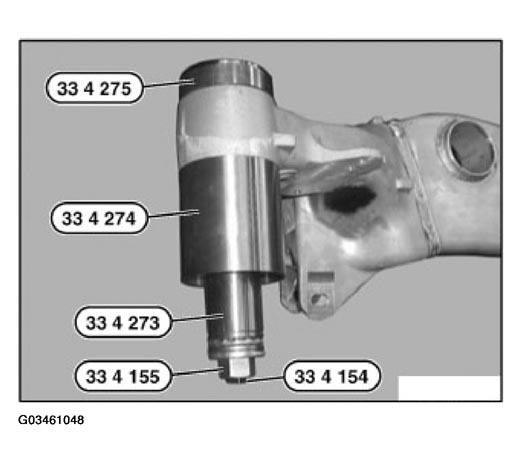

Pieces 1-5 are included with the Bushing tool.

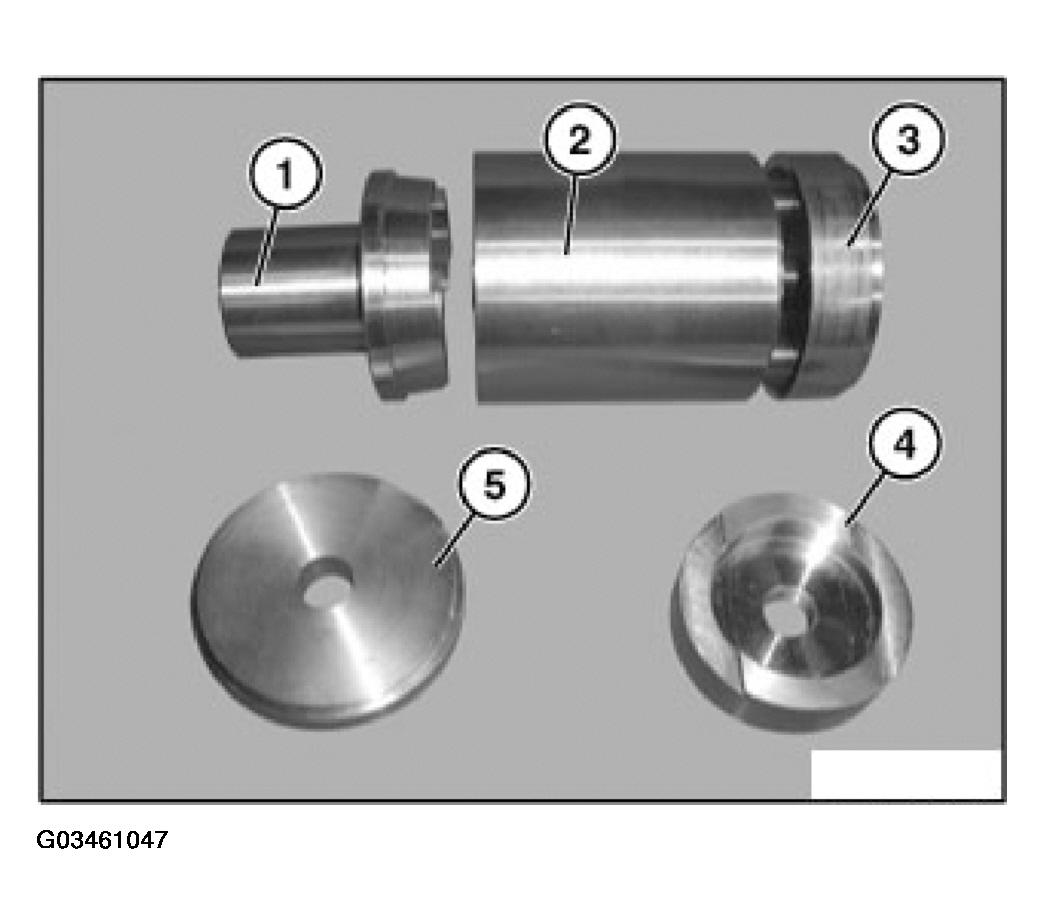

Fig 15: Bushing Tool

Used to R & R the rear axle carrier rubber mount.

Fig 16: Rear Axle Carrier Rubber Mount

Distribution of the following tools will not be through the Automatic Tool Shipment Program. Tools may be purchased through your PDC.

Rear Axle Carrier

PN 90 88 6 334 230

Price = $114.30

Pieces 1 & 2 are included with the Rear Axle Carrier set.

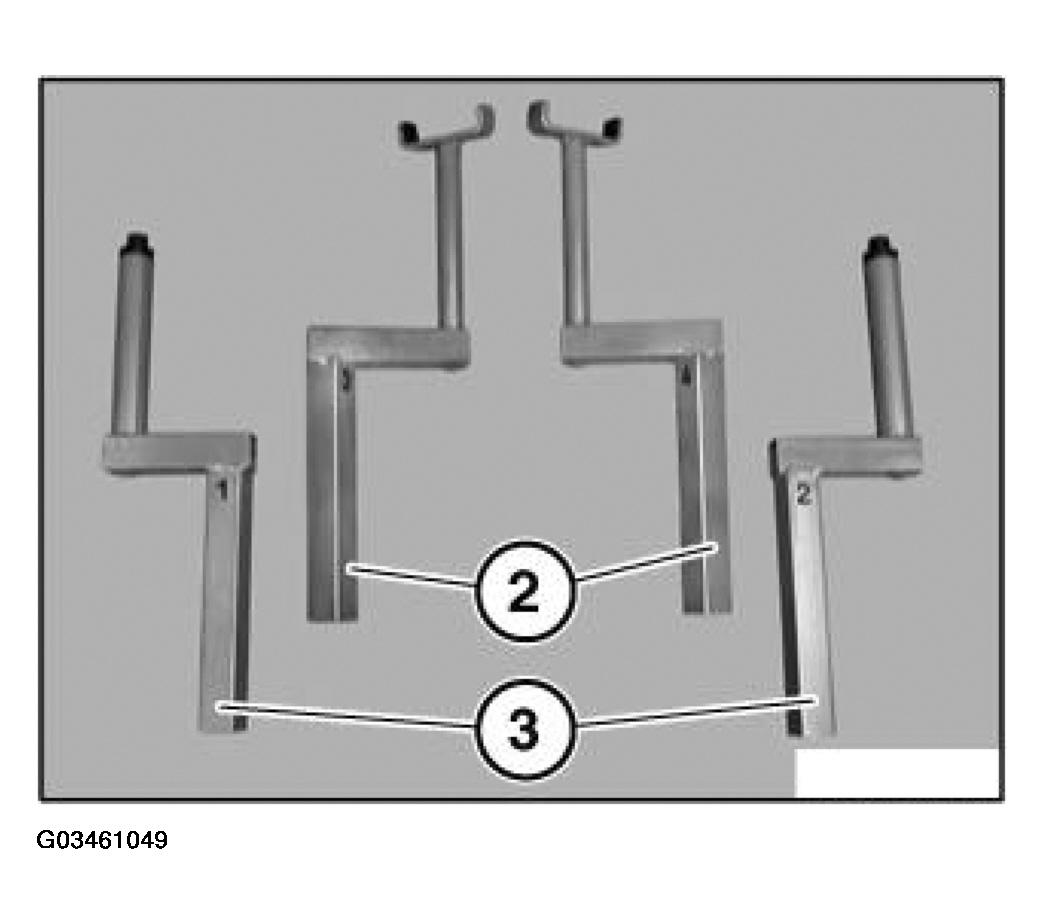

Fig 17: Rear Axle Carrier

Used in conjunction with 002 030 & 002 040 to support the rear axle carrier during removal and installation.

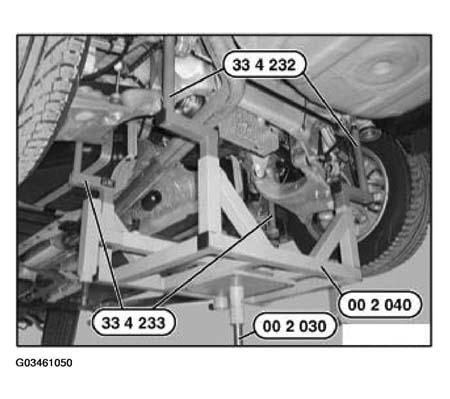

Fig 18: Supporting Rear Axle Carrie

WARRANTY INFORMATION

Refer to Parts Information bulletin 01 01 95 for tool warranty details.
