E60 Tools (04 31 03)

Publication date: 2003-12-01
Reference number: 04 31 03

E60 TOOLS

E60 TOOLS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 31 03, Date of Issue:  December 2003
BMW: E60
GROUP: 04 - Tools and Equipment

SUBJECT

E60 Tools

MODEL

E60

SITUATION

Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. All prices on this bulletin are introductory prices and are only valid during the Automatic Tool Shipment.

TOOL INFORMATION

AC charge adapter

PN 90 88 6 641 240

Price = $58.60

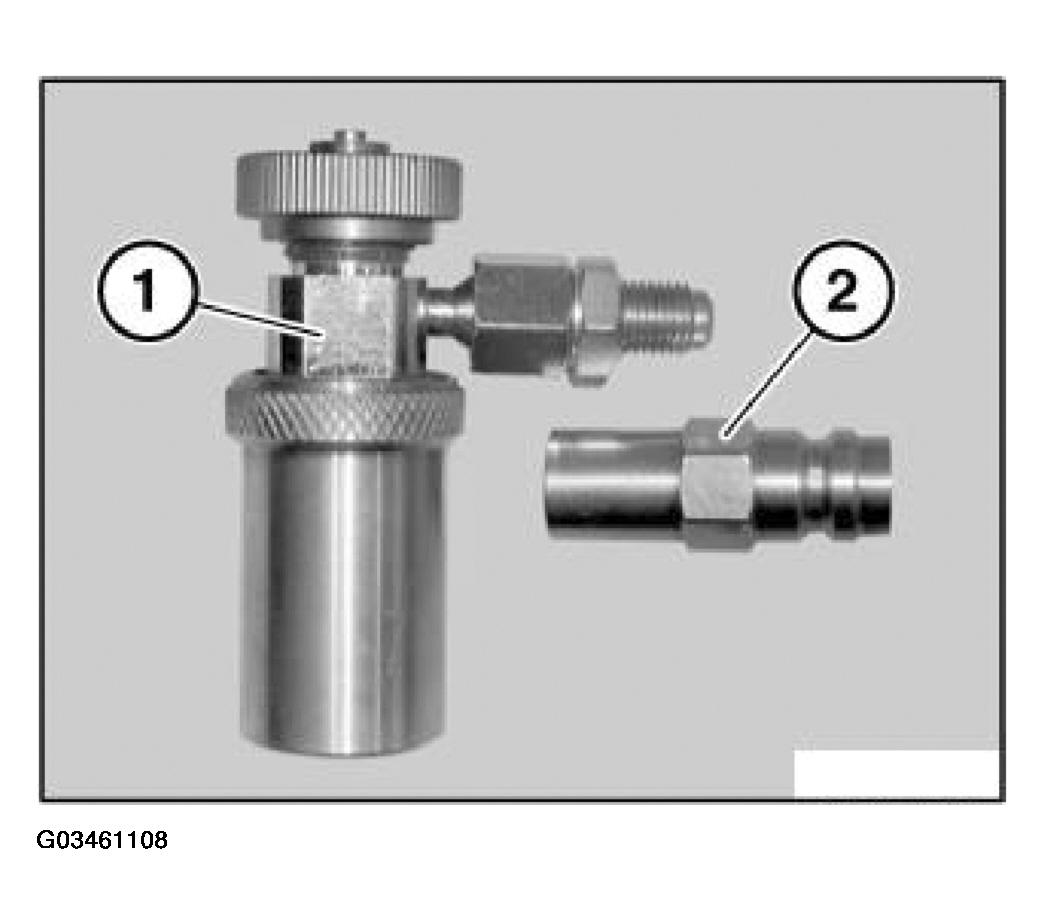

Fig 1: AC Charge Adapter
G03461108

Due to the recessed location of the high-pressure fill, an adapter is required to charge and discharge the air conditioning system. A quick release coupler is supplied (2) and may be used where applicable.

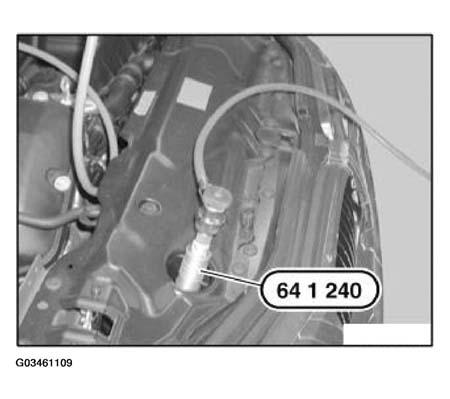

Fig 2: Quick Release Coupler
G03461109

Distribution of the following tools will not be through the Automatic Tool Shipment Program. Tools should be purchased through your PDC.

Fuel adapter

PN 90 88 6 135 460

Price = $13.70

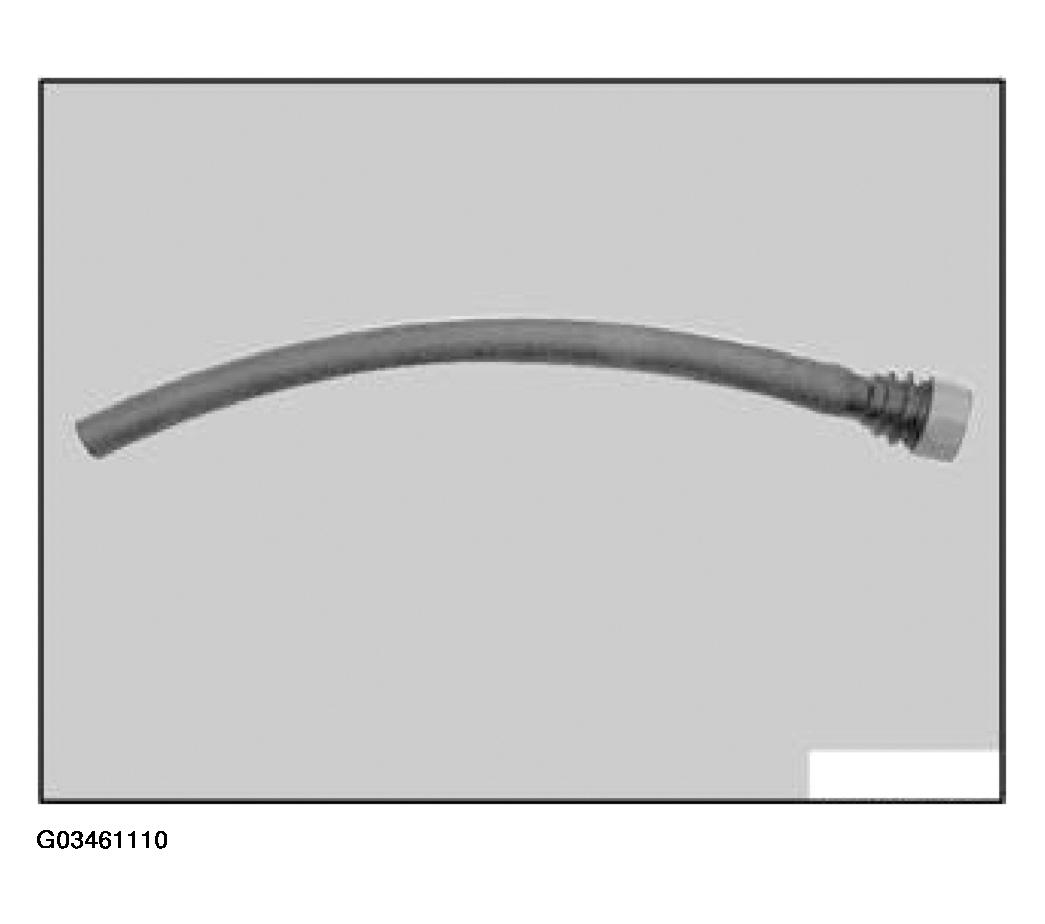

Fig 3: Fuel Adapter
G03461110

Used to draw-off residual fuel in conjunction with a fuel-refilling device (not included). Refer to repair manual section 16 00 005.

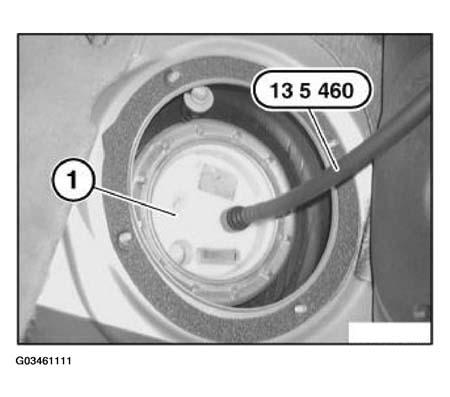

Fig 4: Draw-Off Residual Fuel In Conjunction With Fuel-Refilling Device
G03461111

Trunk lid wrench

PN 90 88 6 513 290

Price = $13.15

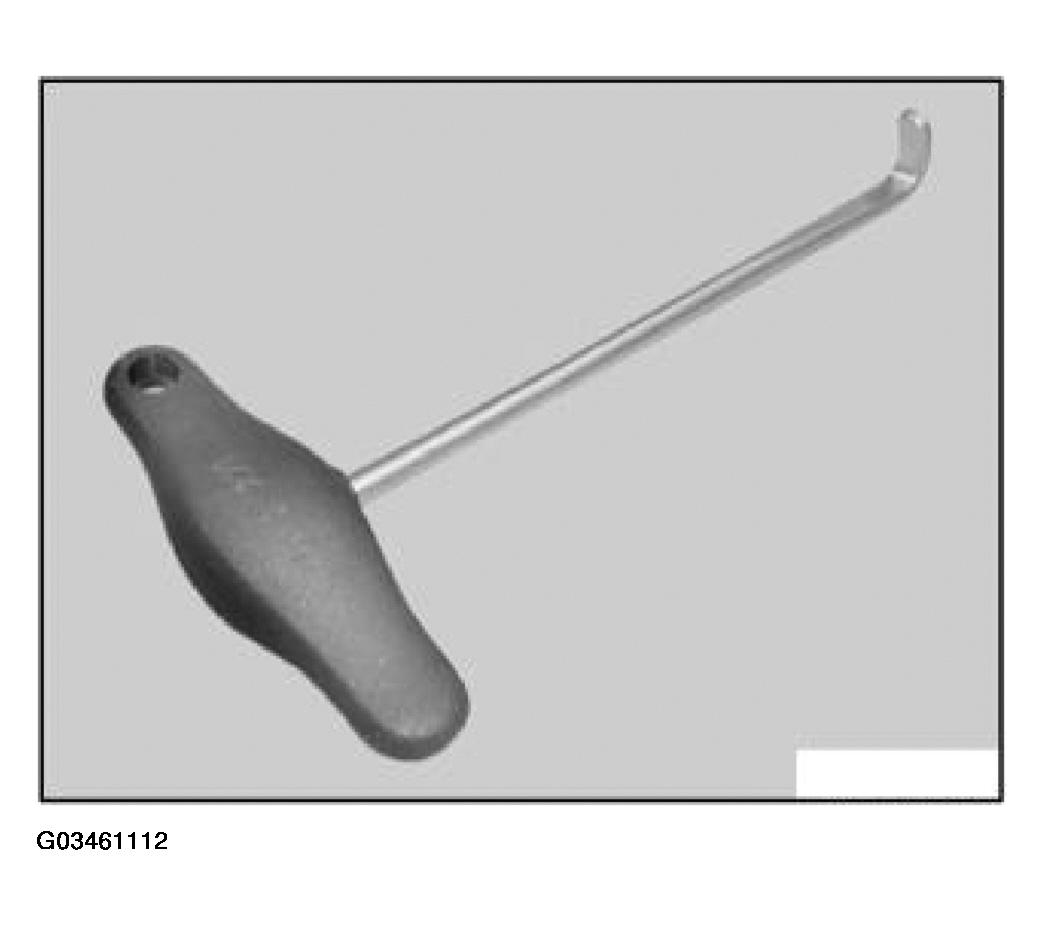

Fig 5: Trunk Lid Wrench
G03461112

Used to R & R the trunk lid tension spring. Refer to repair manual section 5.

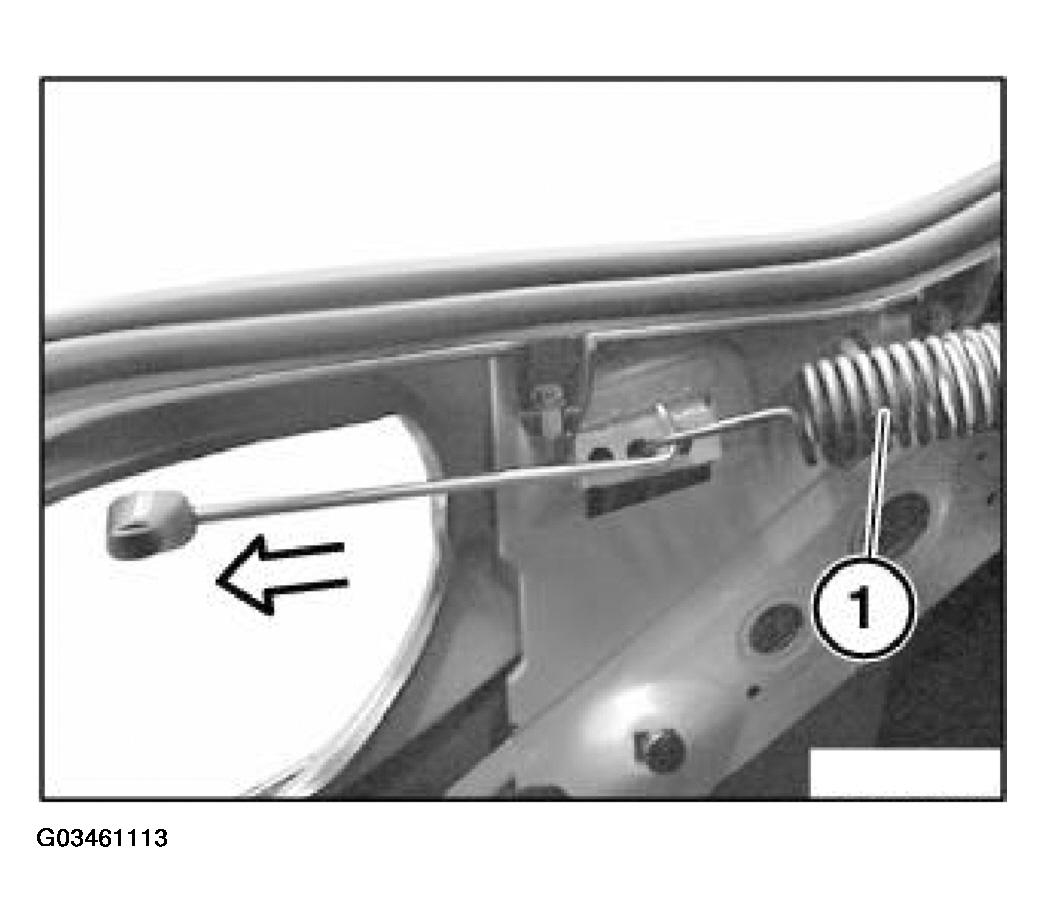

Fig 6: Trunk Lid Tension Spring
G03461113

WARRANTY INFORMATION

Refer to Parts Information bulletin 01 01 95 for tool warranty details.
