Checking Fluid Level

NOTE: Numbers in text refer to numbers in figures.

Check lubricant at fill hole (2). For E60 vehicles, see Fig 1 . For Z4, see Fig 2 . Lubricant should be at bottom of filler plug hole. Tighten Plug to specification. See TORQUE SPECIFICATIONS .

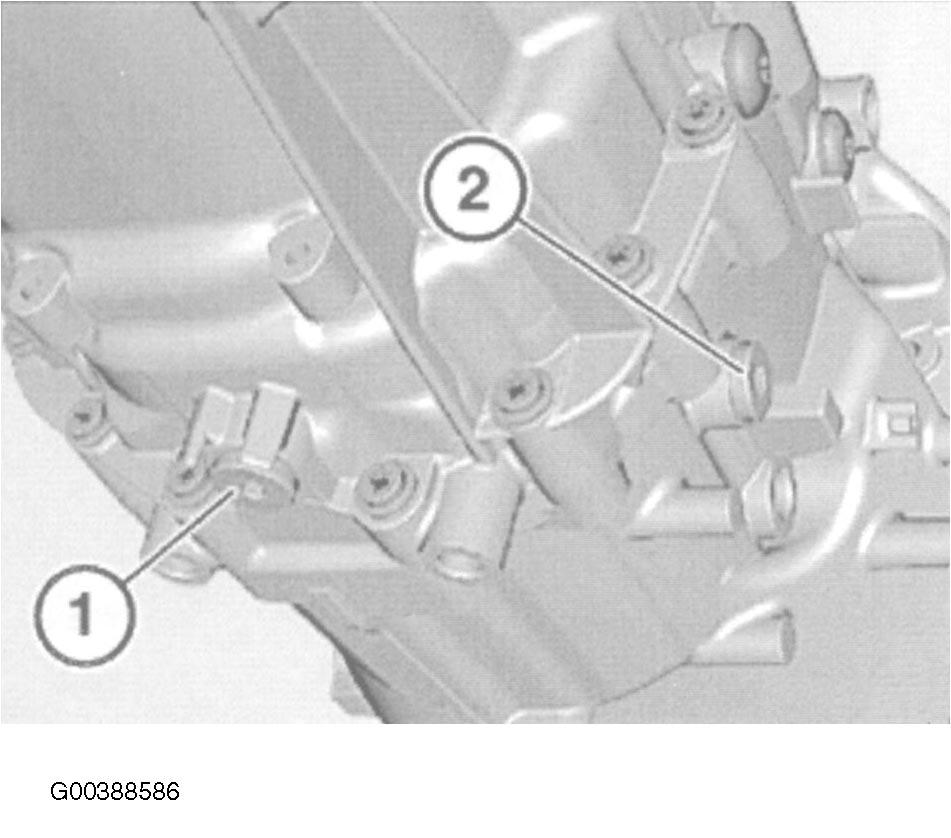

Fig 1: Locating Transmission Oil Drain & Filler Plug (E60)

Courtesy of BMW OF NORTH AMERICA, INC.

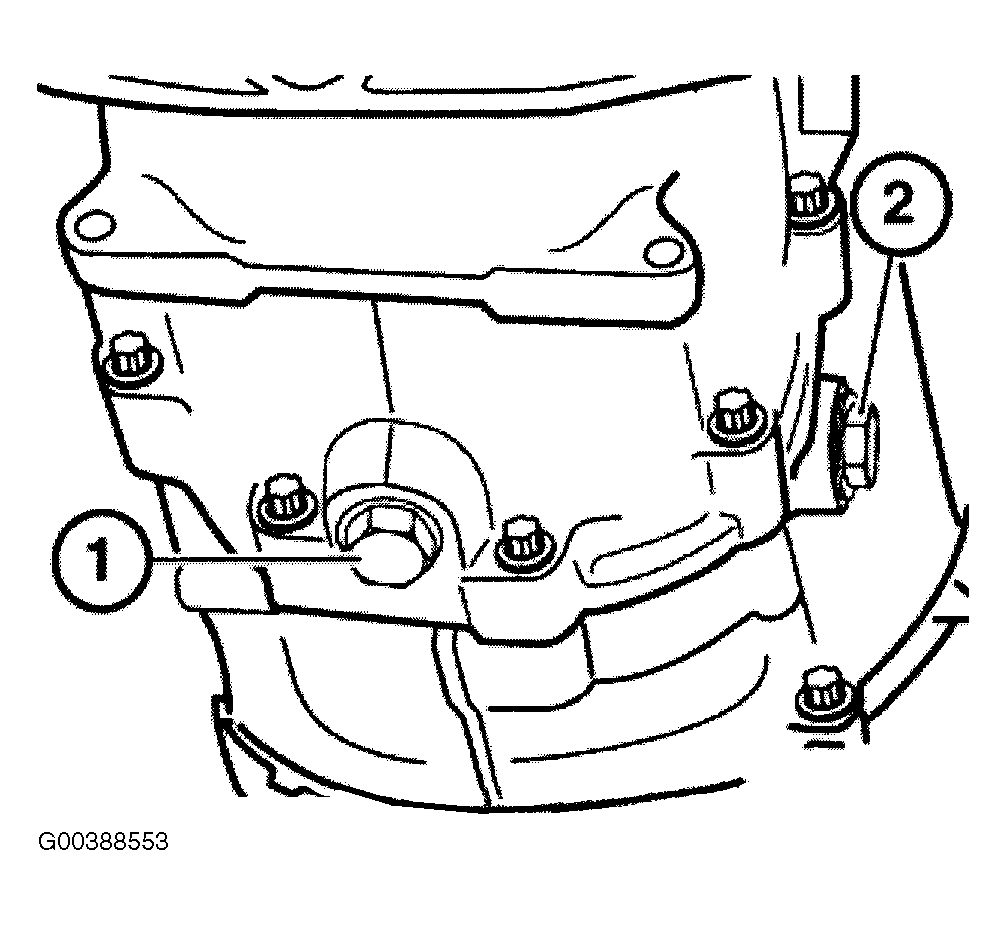

Fig 2: Locating Transmission Oil Drain Plug & Filler Plug (Z4)

Courtesy of BMW OF NORTH AMERICA, INC.
