5070 Device

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

0491978 315070 Device MW

NOTE: For determining the installation dimension at the bevel drive pinion in the front axle differential [Discontinued]

Consisting of:

= 0491979 Bridge
NOTE: (Measuring bridge) [Discontinued]
= 0491980 Washer
NOTE: (Measuring disc 7 mm) [Discontinued]

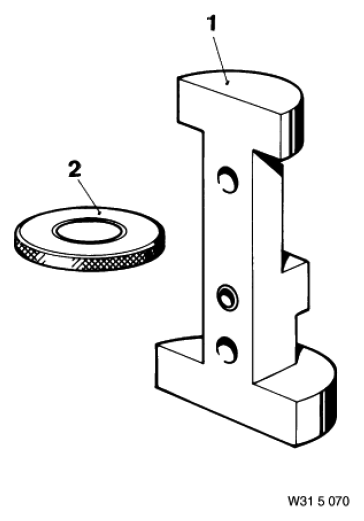

Fig 1: Identifying Device (0491978)
Courtesy of BMW OF NORTH AMERICA, INC.
