Limited Service Repairs

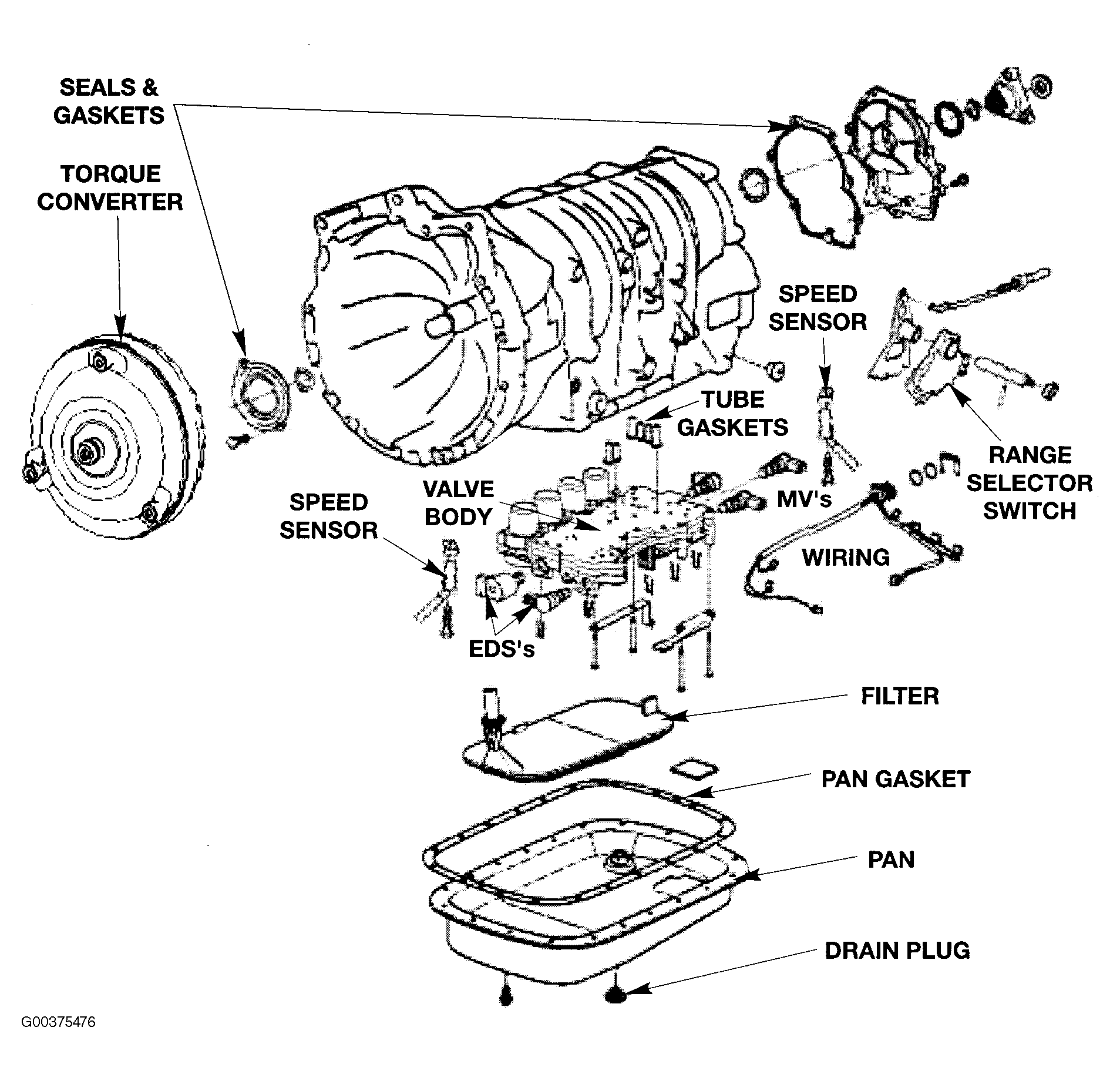

Minor electrical and mechanical repairs can be performed on the A5S 360R. See Fig 1 . The following are included in the repair scope of the A5S 360R:
- Service Parts: Oil filter unit, pan gasket, oil filler and drain plugs with seals.
- Oil Leaks: Radial seals and gaskets.
- Mechanical Faults: Torque converter core replacement, parking pawl mechanism.
- Hydraulic Control Faults - valve body replacement.
- Electrical Faults - shift solenoids, torque converter pressure regulator and main line oil pressure regulator, wiring harness (fluid temperature sensor), range selector switch, turbine and output speed sensors.
