Bus Overview

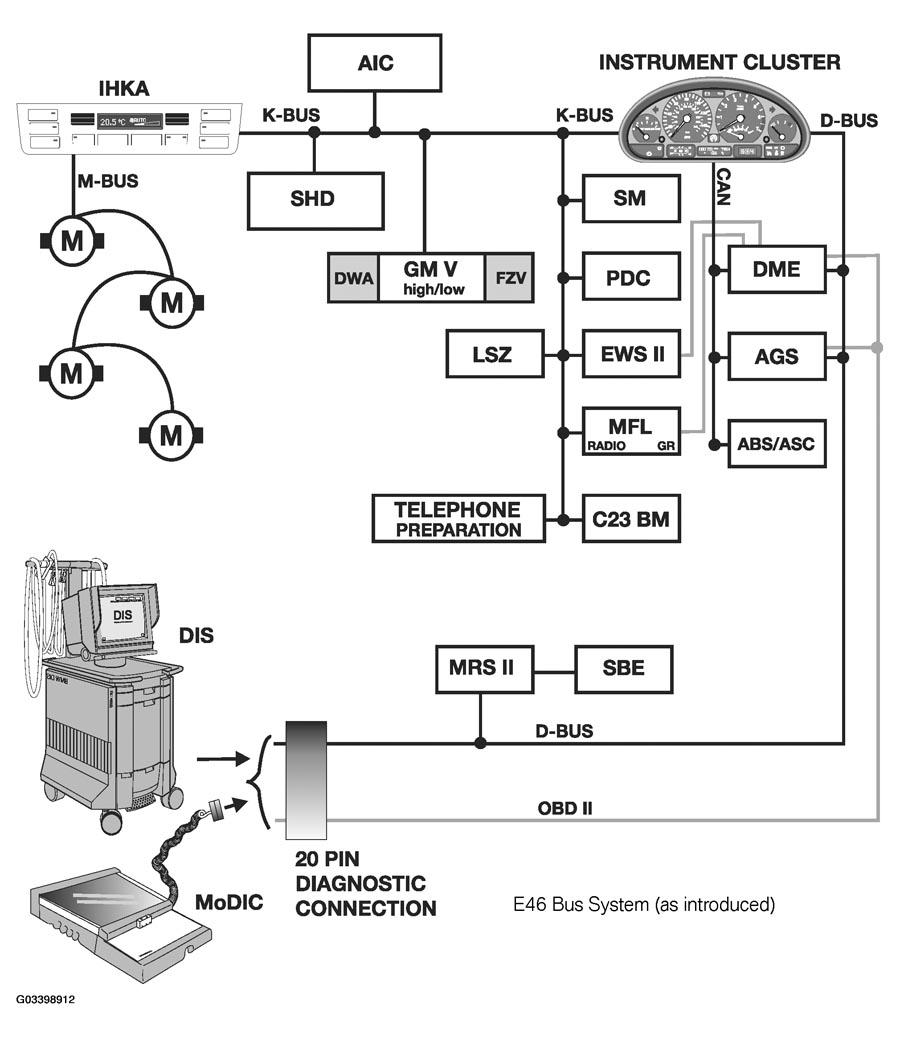

Fig 1: Identifying E46 Bus Overview
G03398912Courtesy of BMW OF NORTH AMERICA, INC.

E46 Bus System (as introduced)
