Wiring Diagrams

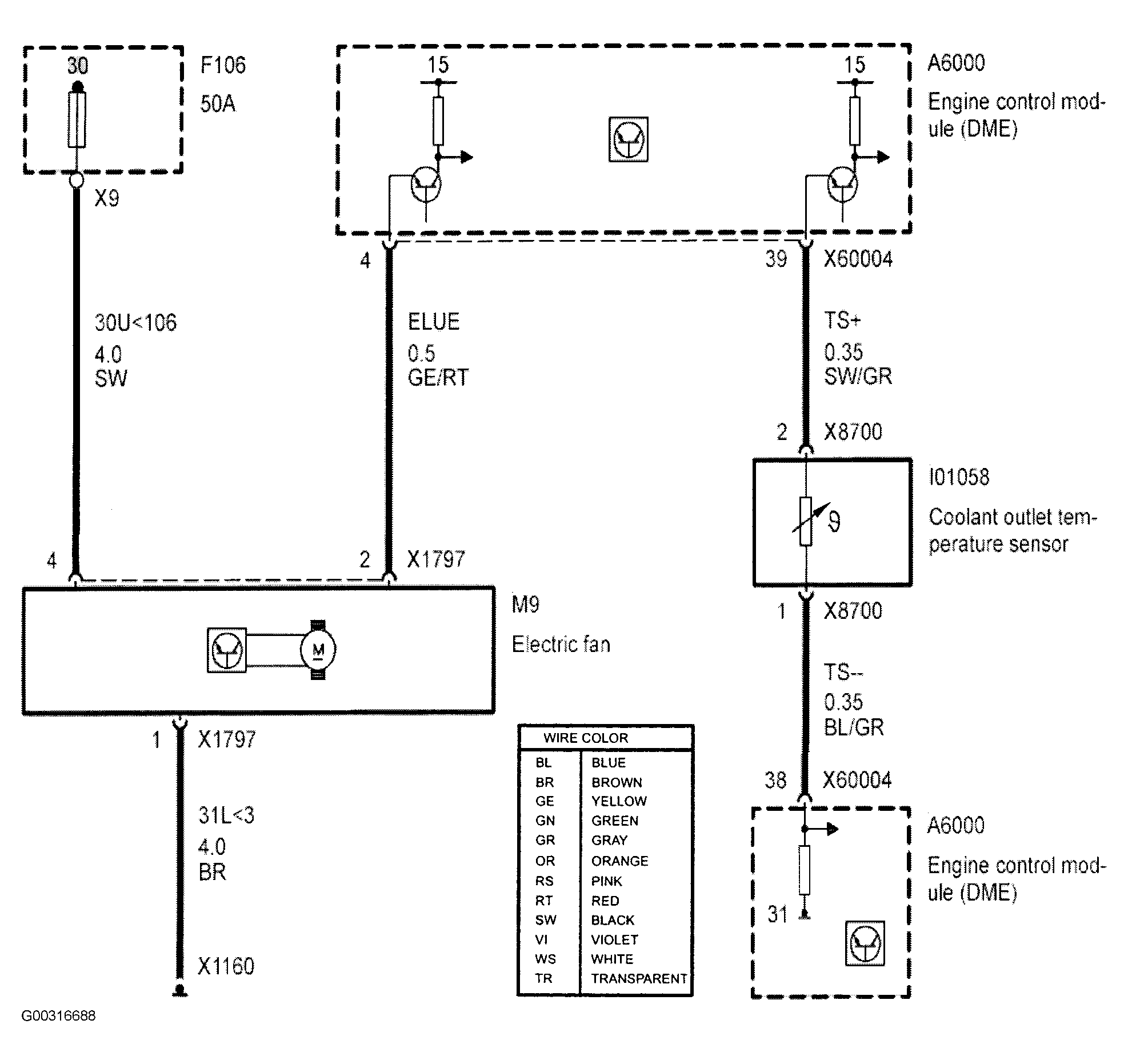

Fig 1: Electric Cooling Fan Wiring Diagram

G00316688

Courtesy of BMW OF NORTH AMERICA, INC.
