System Components

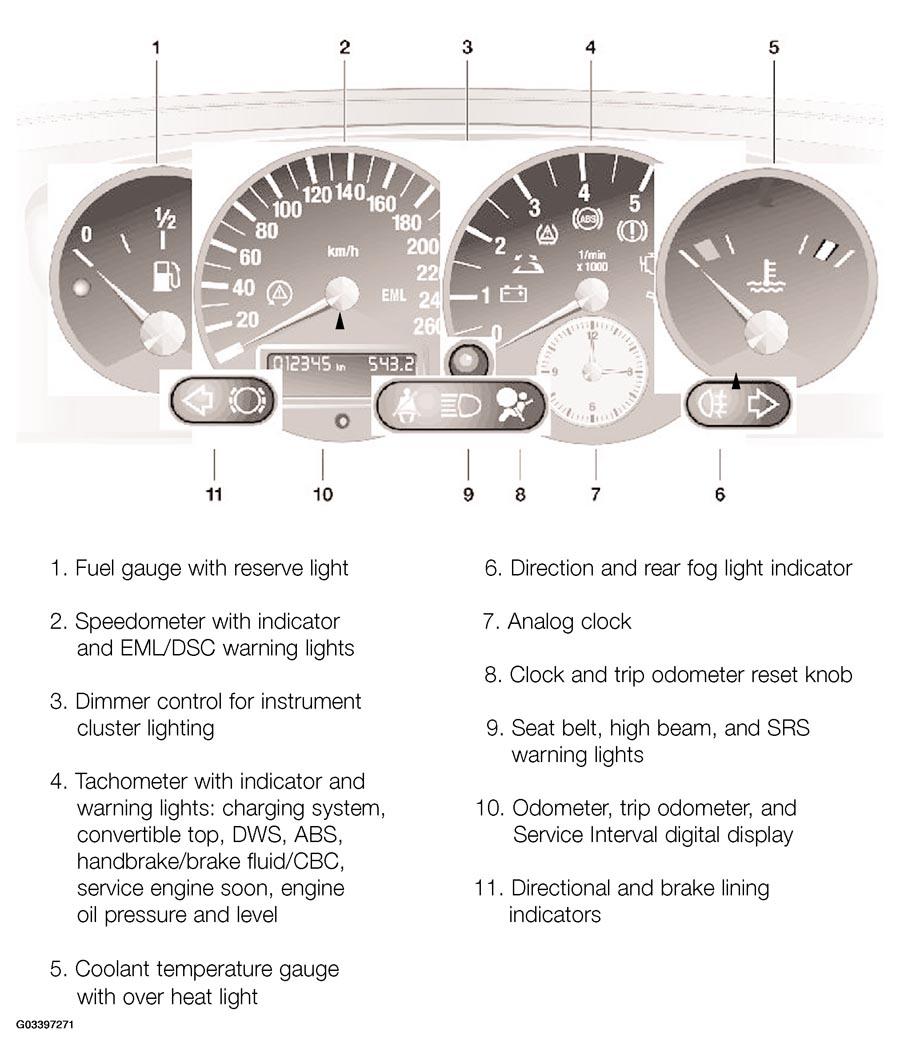

Fig 1: Identifying Instrument Cluster Components

Courtesy of BMW OF NORTH AMERICA, INC.

The instrument cluster is divided into module components.

• To remove the instrument cluster: carefully pry out the dash side panels (driver's and passenger's), and remove the four corner screws.

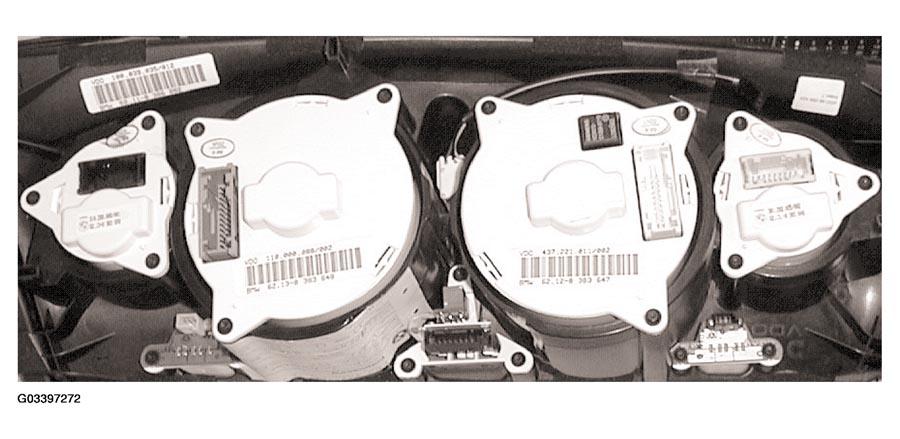

  Fig 2: Rear View Of Instrument Cluster

  Courtesy of BMW OF NORTH AMERICA, INC.
• The instrument cluster assembly is hard wired to the IKE module which is located behind the glove box.

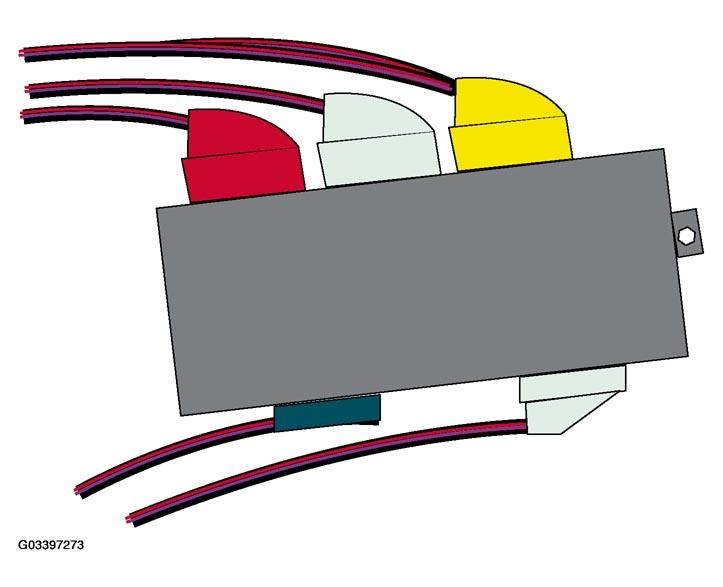

  Fig 3: Identifying IKE Module

  Courtesy of BMW OF NORTH AMERICA, INC.
