86 10 ... Replacing lashing plate and lashing eye

Releasing lashing eye

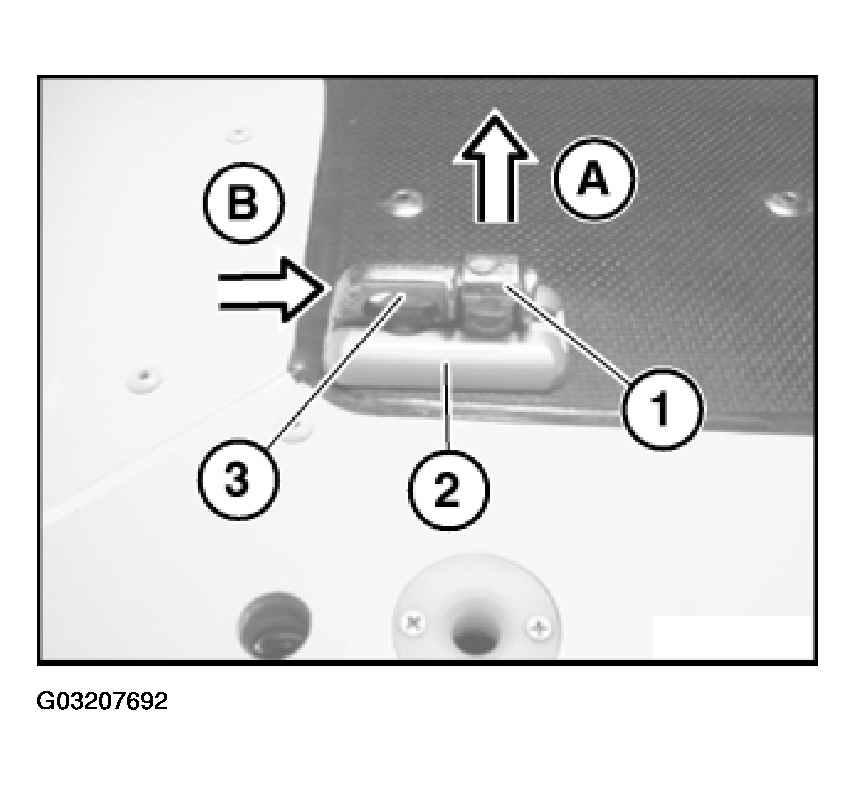

Pull spring bar (1) upwards in direction of arrow A. Slide lashing eye (3) in direction of arrow B and remove from lashing plate (2).

Fig 1: Removing Lashing Eye

Courtesy of BMW OF NORTH AMERICA, INC.

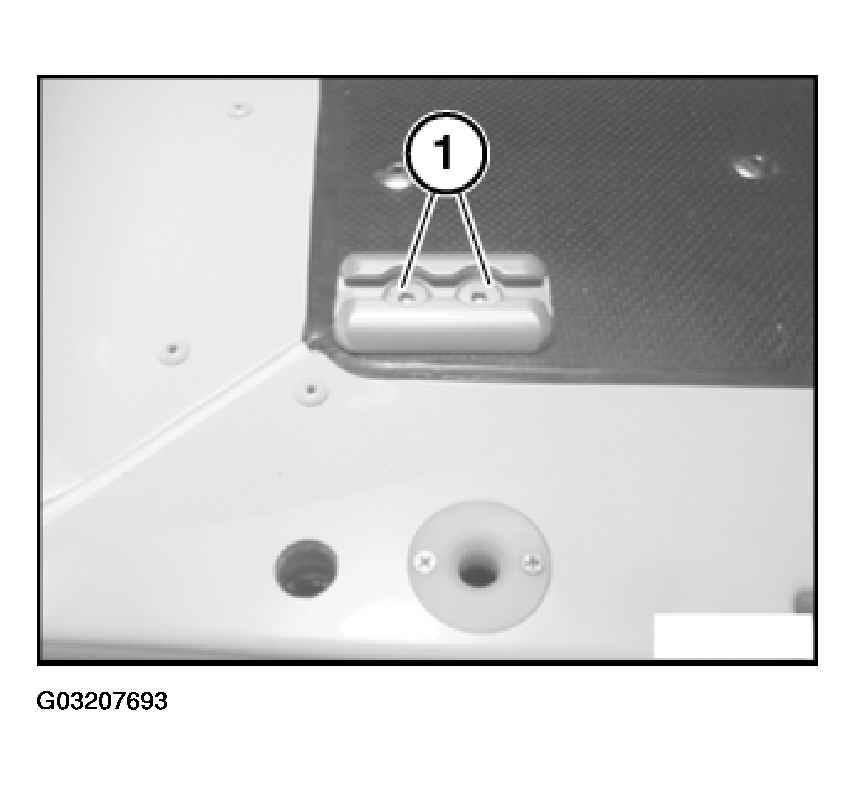

Release countersunk head screws (1) and remove lashing plate.

Fig 2: Removing Lashing Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque, 15 Nm.

Locking lashing eye

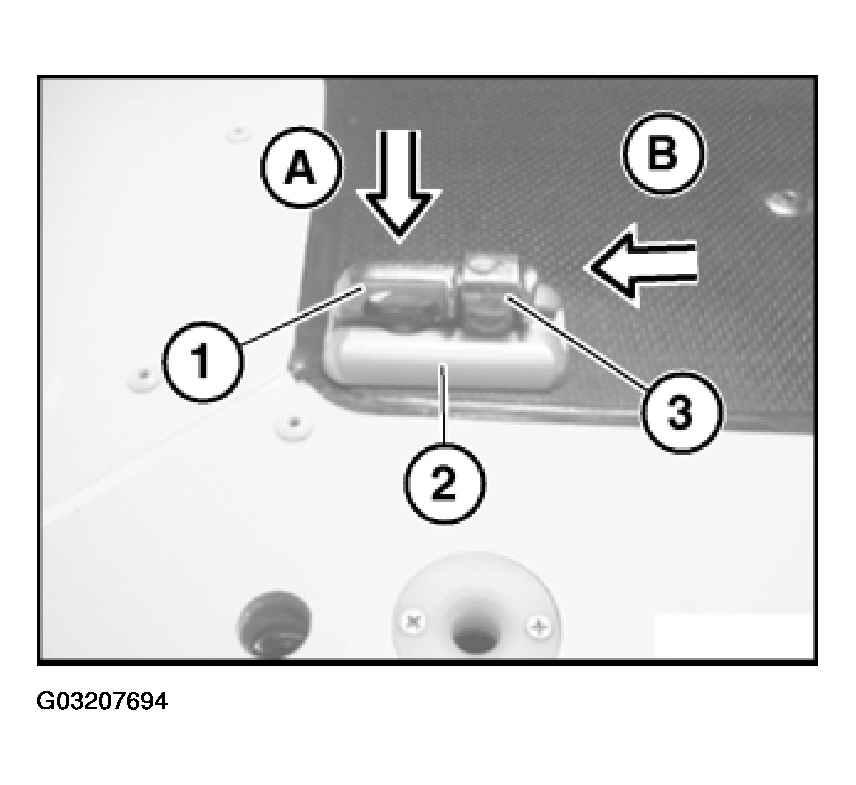

Position lashing eye (1) on circular openings on lashing plate (2). Press lashing eye (1) in direction of arrow A into lashing plate (2). In this position, slide lashing eye (1) in direction of arrow B. Spring bar (3) snaps in, anchors and secures lashing eye (1) in lashing plate (2).

Fig 3: Positioning Lashing Eye

Courtesy of BMW OF NORTH AMERICA, INC.
