86 10 ... Disassembly of rear apron

NOTE: Remove rear light, refer to 86 10 ... Replacing rear light .
Remove plastic bush/metal bush refer to 86 10 ... Removing plastic bush/metal bush .

Cut through sealing compound (1) on left and right and remove.

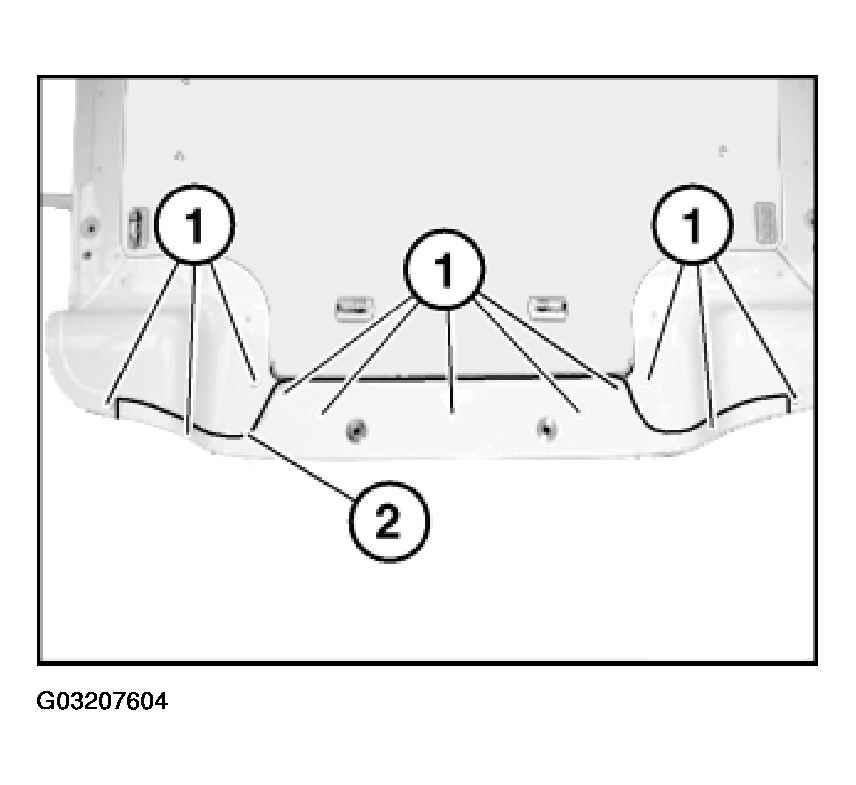

Fig 1: Cutting Through Sealing Compound And Drilling Out Rivets On Lower Apron Edge

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivets (2) on left and right sides on lower apron edge.

Installation:

Use Sikaflex 221 as sealing compound.

Cut through sealing compound (1) and remove.

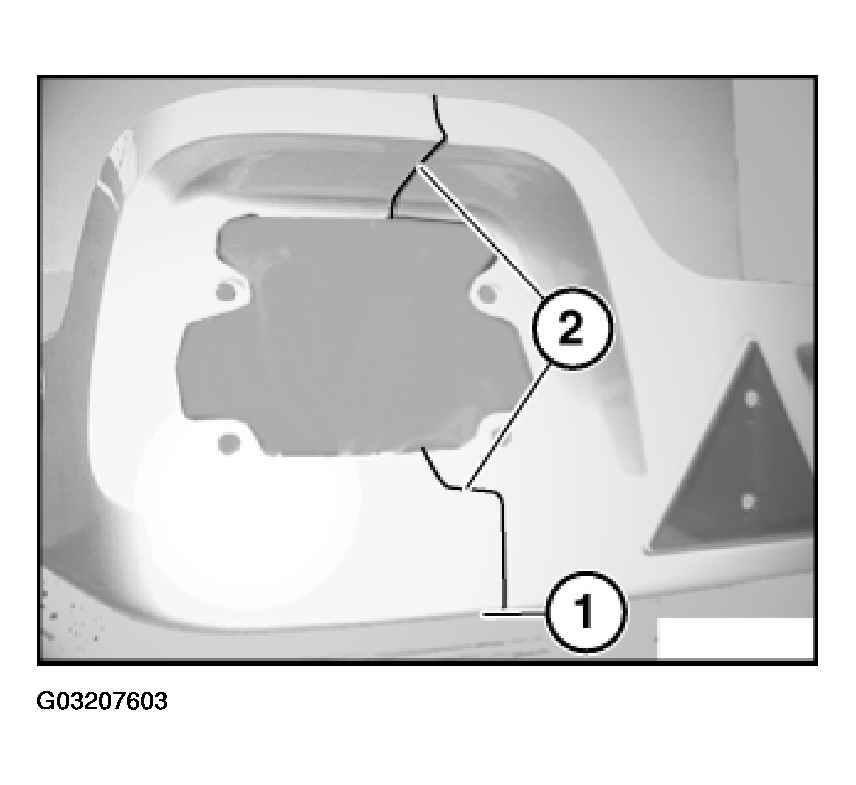

Fig 2: Cutting Through Sealing Compound And Drilling Out Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivets (2).

Installation:

Use Sikaflex 221 as sealing compound.
