86 10 ... Disassembly of left and right lamp housings

Cut through sealing compound (1) and remove.

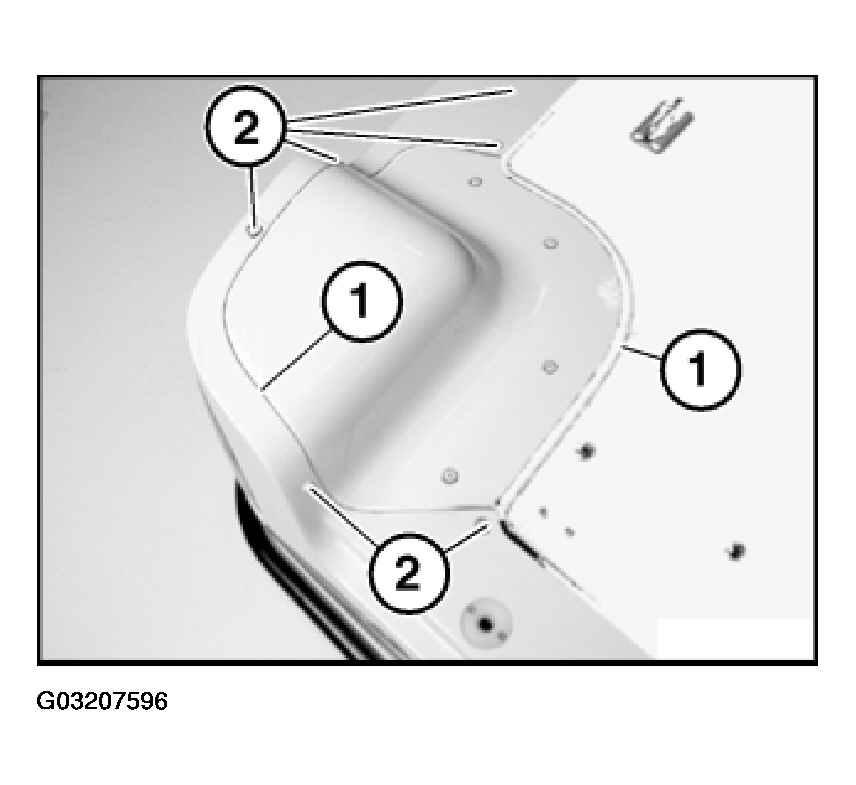

Fig 1: Cutting Through Sealing Compound And Drilling Out Rivet Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivet connections (2).

Installation:

Use Sikaflex 221 as sealing compound.

Drill out rivet connections (1).

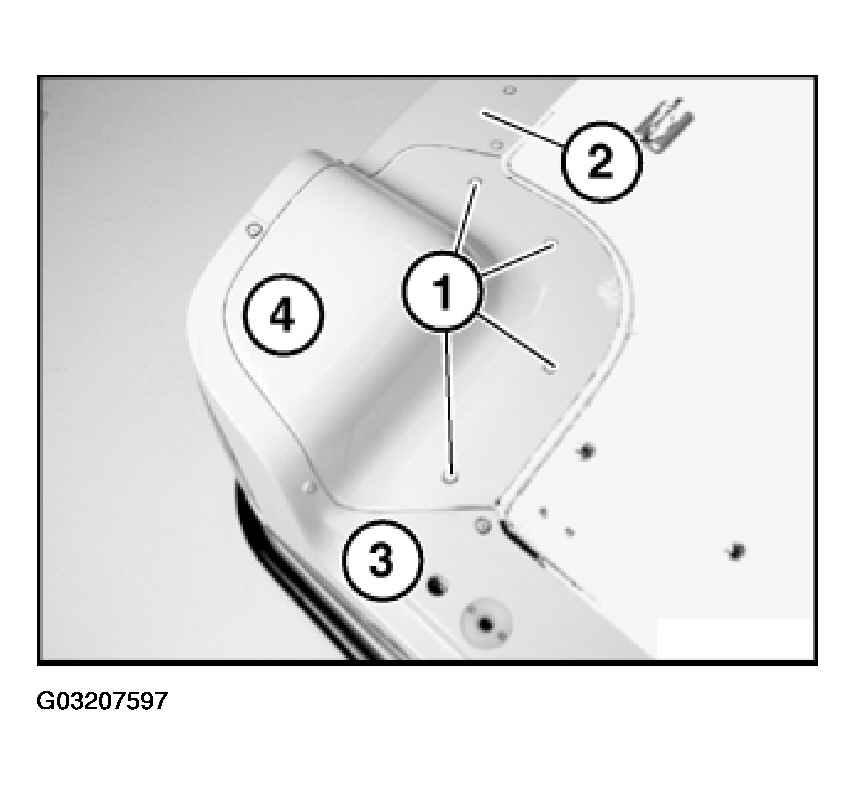

Fig 2: Removing Lamp Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Raise side sections (2, 3).

Pull out lamp housing (4) towards inside in direction of platform.
