86 10 ... Disassembly of left and right aprons

NOTE: Remove position light, refer to 86 10 ... Replacing position light .
Remove rear light, refer to 86 10 ... Replacing rear light .
Remove plastic bush/metal bush refer to 86 10 ... Removing plastic bush/metal bush .

Drill out rivets (1) on lower apron edge.

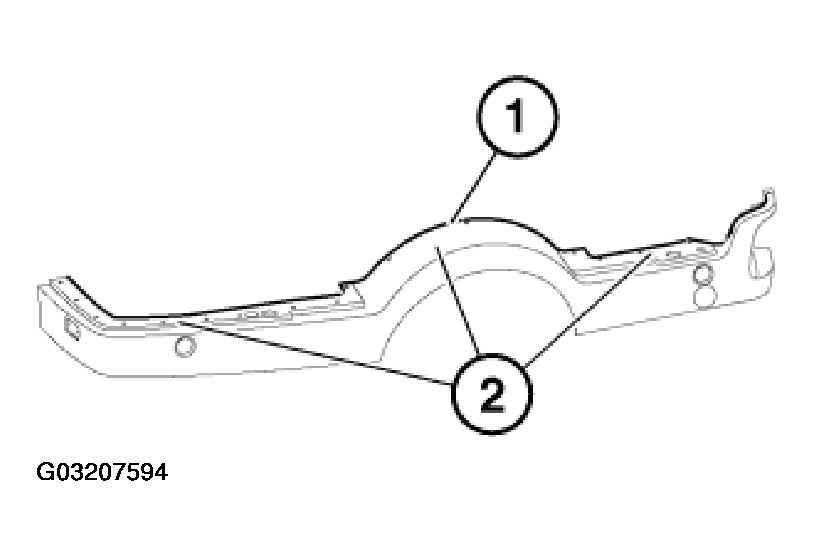

Fig 1: Drilling Out Rivets On Lower Apron Edge

Courtesy of BMW OF NORTH AMERICA, INC.

Remove sealing compound (1).

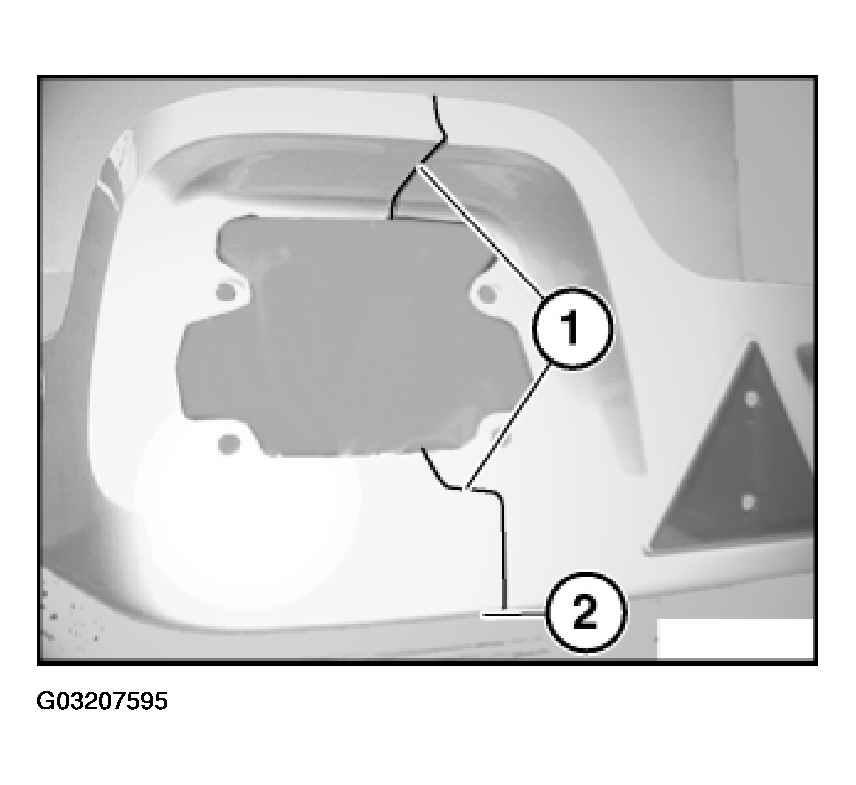

Fig 2: Removing Sealing Compound And Drilling Out Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out all rivets (2) along apron edge.

Installation:

Use Sikaflex 221 as sealing compound.

Remove sealing compound (1).

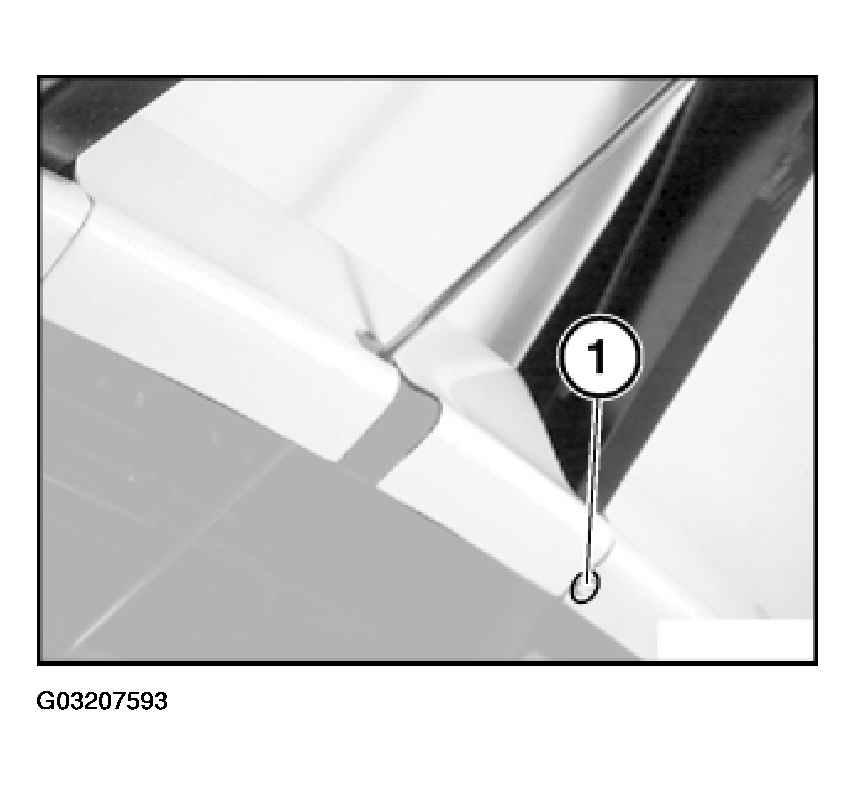

Fig 3: Removing Sealing Compound And Drilling Out Rivets On Lower Apron Edge

Courtesy of BMW OF NORTH AMERICA, INC.

Drill out rivets (2) on lower apron edge.

Installation:

Use Sikaflex 221 as sealing compound.
