86 21 ... Removing lock barrel

NOTE: The following text describes how to remove the lock barrel on the rear lid as an example.
Proceed in the same way for the side lids. Remove the lock barrel while the lid is open.
Remove cover, spring nut and pull rod, refer to 86 21 ... REMOVING ROTARY STRIKER LOCK .

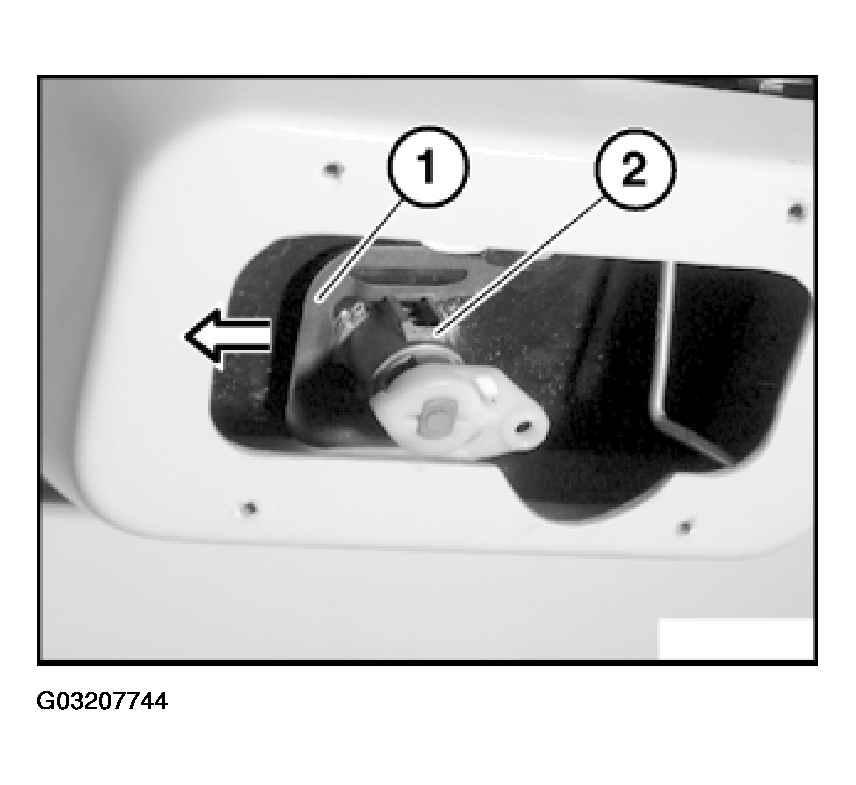

Slide retainer (1) in direction of arrow away from lock barrel (2).

Fig 1: Removing Lock Barrel

Courtesy of BMW OF NORTH AMERICA, INC.

Remove lock barrel (2).

Installation:

Examine rubber backing for damage and replace if necessary. When replacing lock barrel, make sure coding of new lock barrel matches coding of fitted lock barrel (simultaneous closing).
