Rollbar Mounting

To remove the roll bars, gently slide the chrome base covers up. Unsnap the cover panel from the top and fold down to remove.

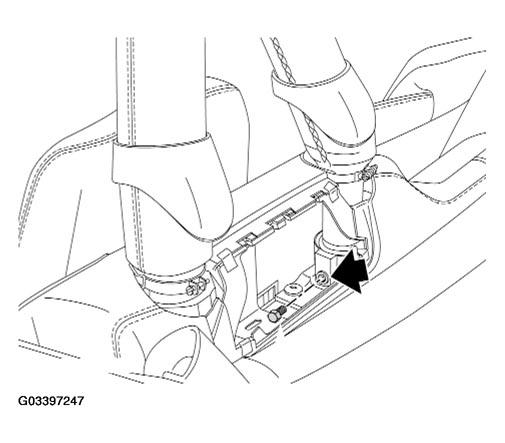

Fig 1: Removing Cover Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the mounting bolts, four 10 mm on the outside, and one 13 mm on the inside of the roll bars.

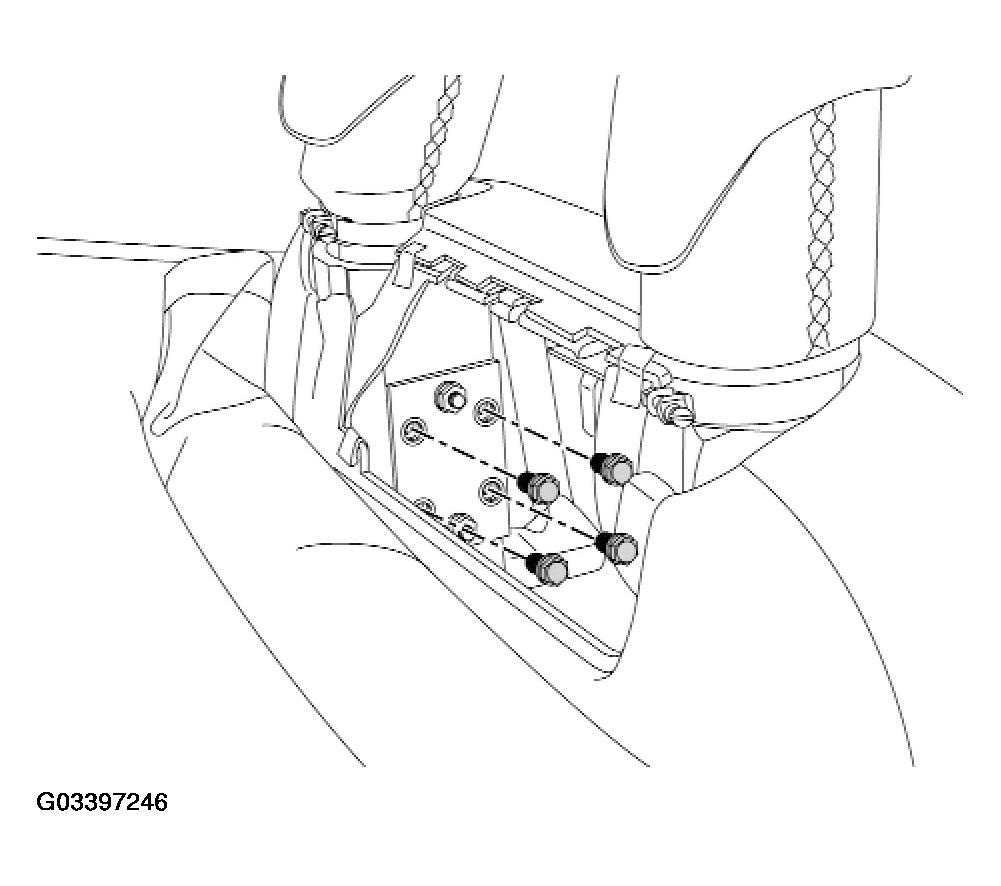

Fig 2: Removing Mounting Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

The roll bar has been removed from the mounting sleeves to allow visibility of the single mounting bolt on the right, and the four bolt locating plate on the left.

NOTE: The mounting bolts exert a certain force (determined by the tightening torque) on the extruded section of the rollbar. Be sure to engage the pins on the locating plate in the roll bar before tightening.

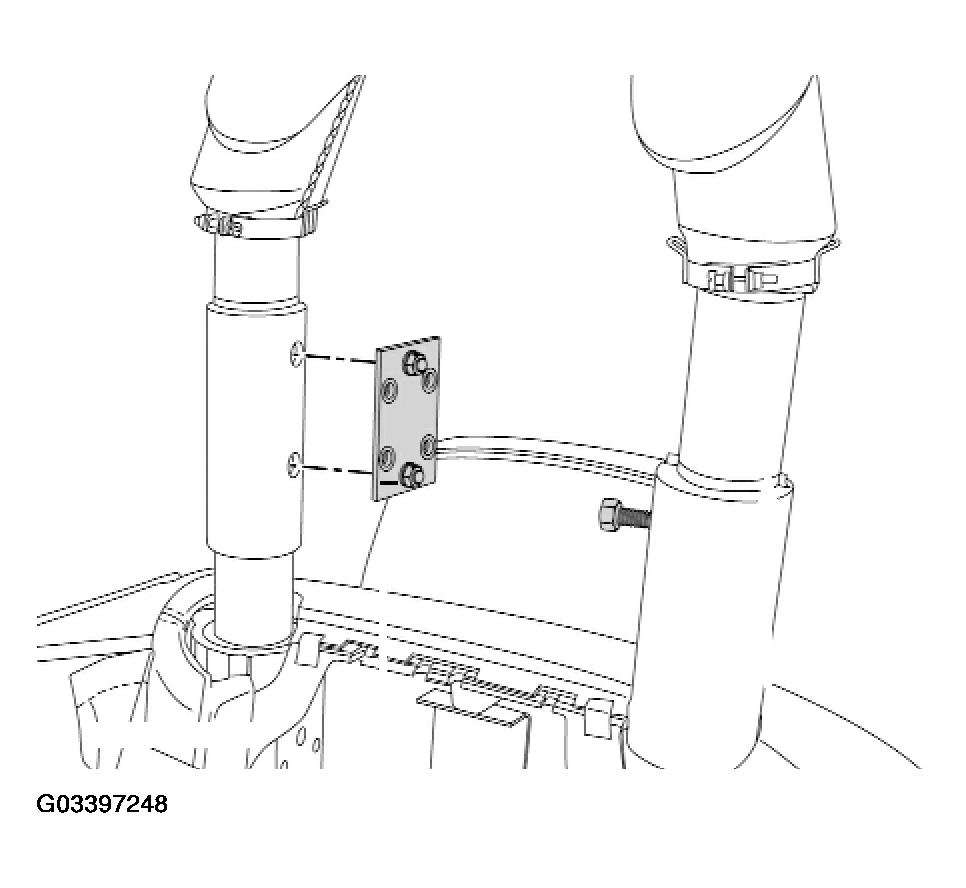

Fig 3: Removing Roll Bar From Mounting Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.
