61 31 212 Removing and installing/replacing switch for automatic/dynamic stability control

Remove radio receiver. Refer to 65 11 030 REMOVING AND INSTALLING / REPLACING RADIO RECEIVER .

Press out switch (1) for automatic/dynamic stability control from inside in direction of arrow.

Disconnect plug connection.

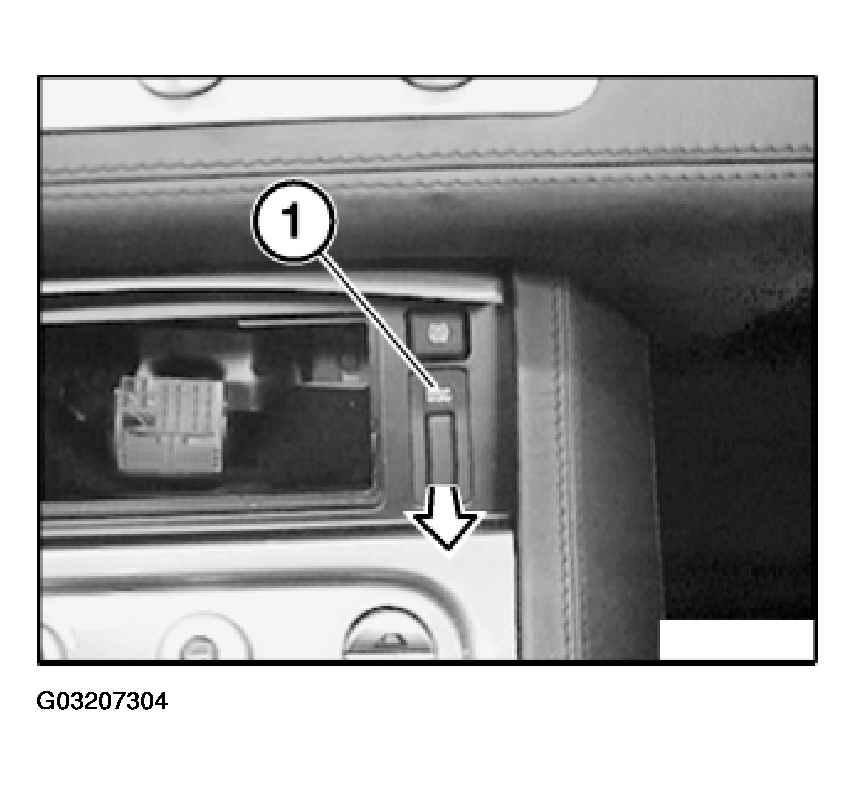

Fig 1: Pressing Out Switch For Automatic/Dynamic Stability Control
G03207304Courtesy of BMW OF NORTH AMERICA, INC.
