Automatic Transmission Control - Overview
>>
Electronic Transmission Control
>>
System Components (Electrical)
>>
Mechatronics Module GA 6HP26Z
Mechatronics Module GA 6HP26Z

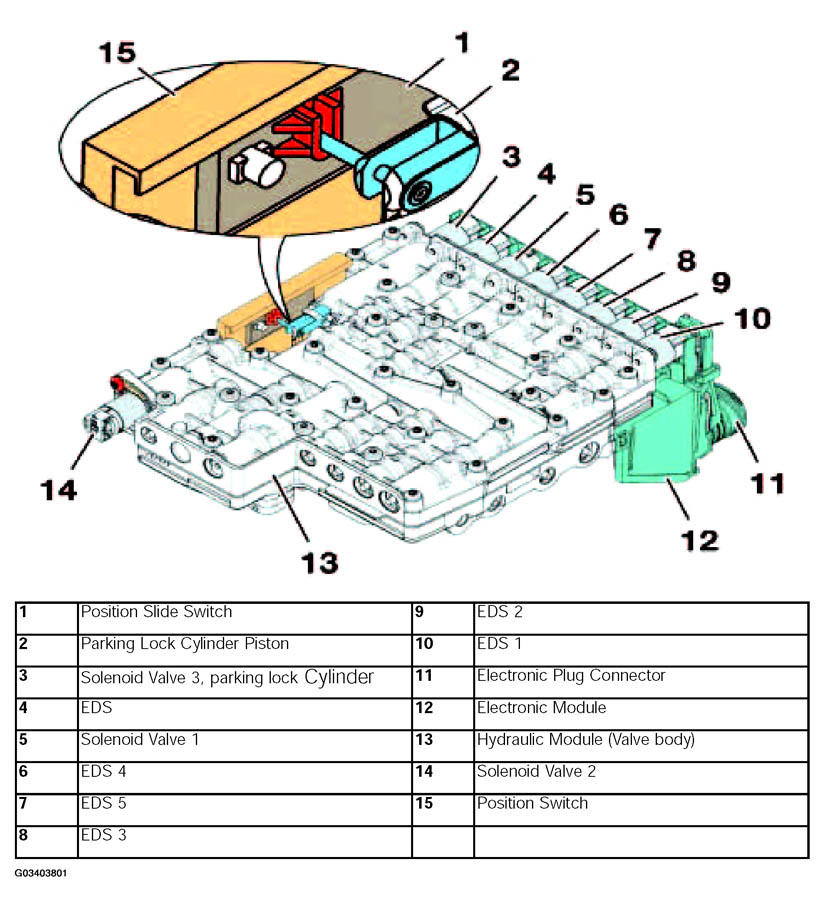

Fig 1: Identifying Mechatronics Module GA 6HP26Z
Courtesy of BMW OF NORTH AMERICA, INC.
