E65/E66 CIP Programming Setup

Attach the OPPS and GT1 in accordance to Cabling setup 1 or 2.

• Attach the MOST bus programming cable (663 121) to the OPPS MOST connection (1).

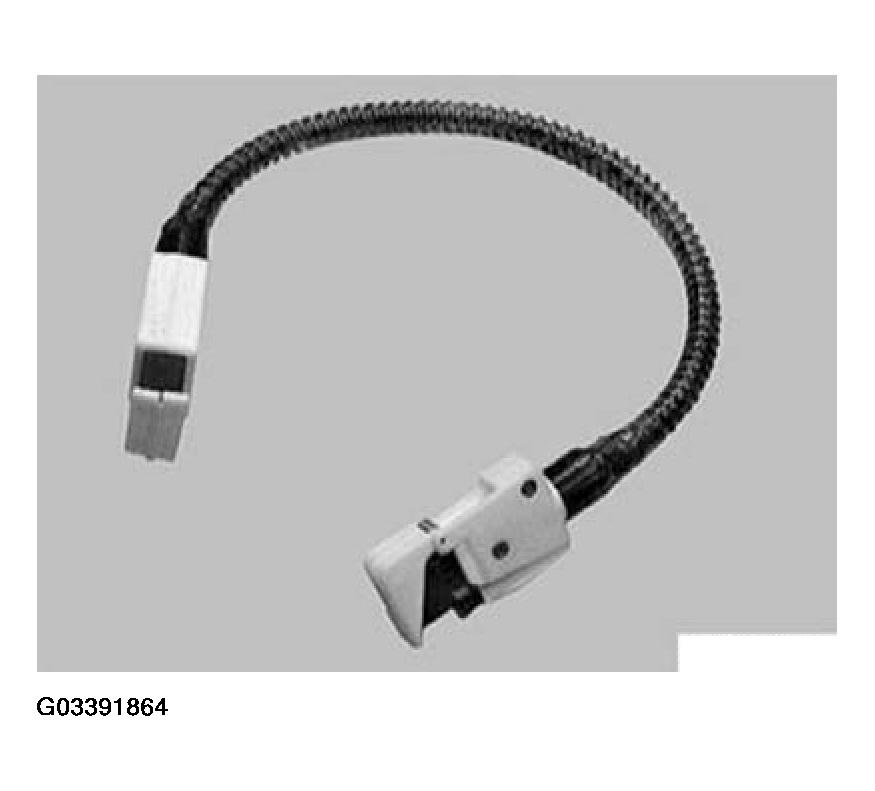

  Fig 1: MOST Bus Programming Cable

  Courtesy of BMW OF NORTH AMERICA, INC.

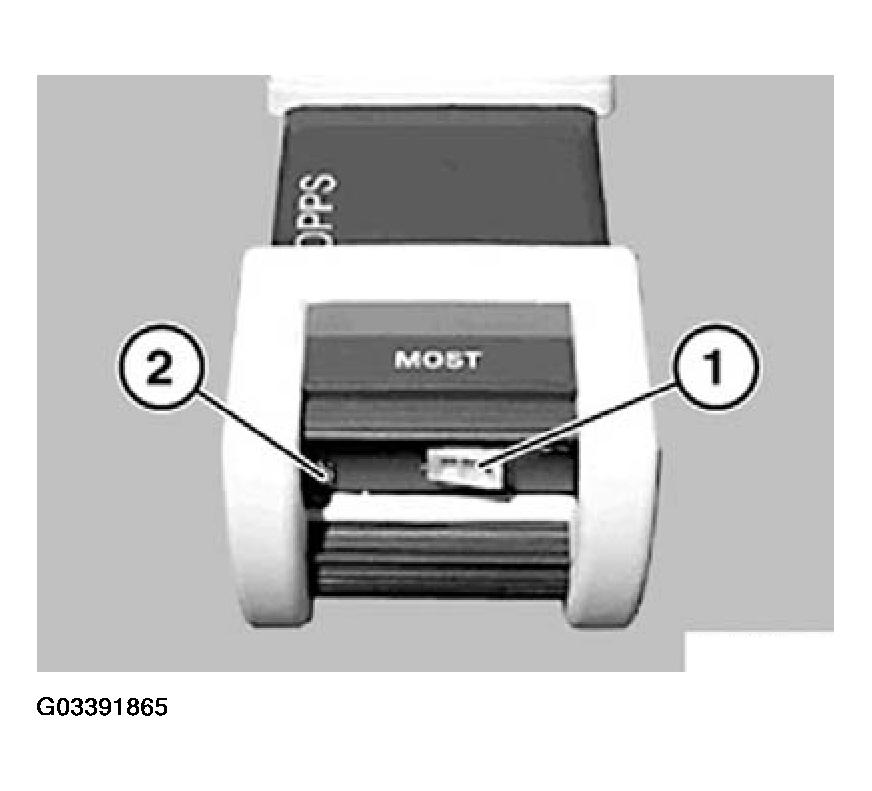

  Fig 2: Attaching MOST Bus Programming Cable To OPPS Most Connection

  Courtesy of BMW OF NORTH AMERICA, INC.
• Run the MOST bus cable to the glove compartment (4).
  Fig 3: Inserting MOST Bus Cable To Glove Compartment

  Courtesy of BMW OF NORTH AMERICA, INC.
• Pull down the trap door inside the glove compartment

  Disconnect the MOST bus interface (1)

  Plug the MOST bus harness (2) into the MOST programming cable (3).

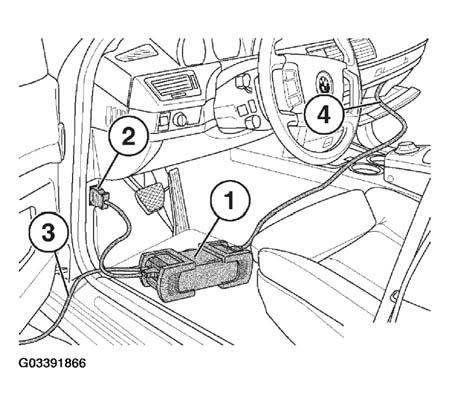

  Fig 4: Identifying GT1 Wired To Opps (Set Up 1)

  Courtesy of BMW OF NORTH AMERICA, INC.
