OBD Connections

As stated earlier, OPPS comes with 2 OBD cables:

"Short version" P/N 663 111 which is used for CIP programming through the OBD (2) and MOST bus as well as diagnosis of al E65/E66 modules.

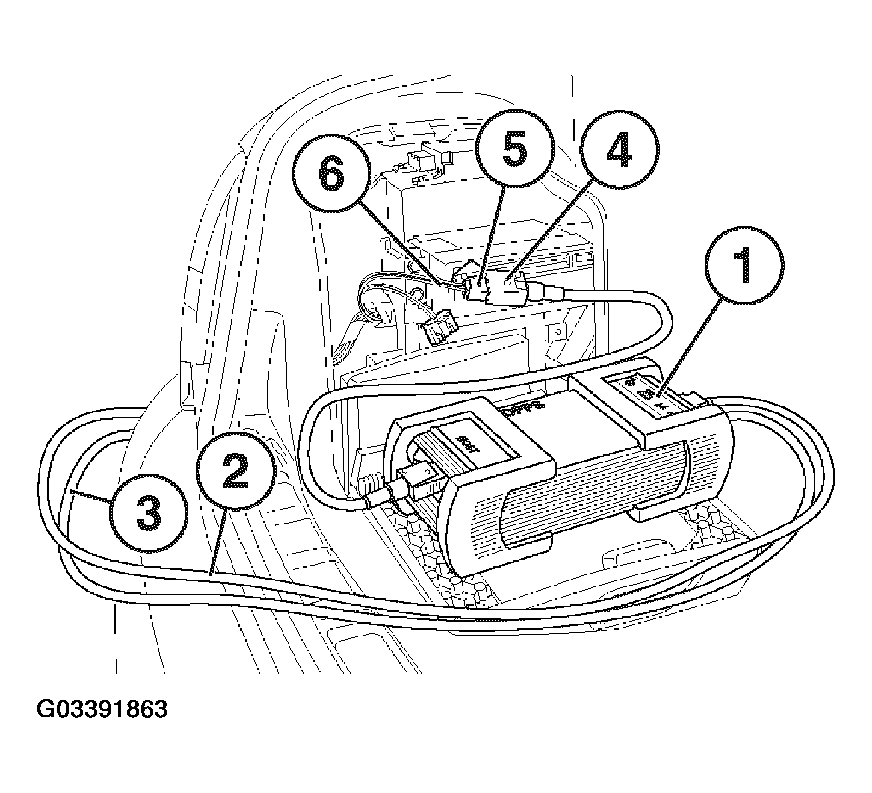

Fig 1: Identifying OBD Connections Short Version P/N 663 111

Courtesy of BMW OF NORTH AMERICA, INC.

"Long version" P/N 663 112 (2) which is used for Optical module and bus testing of modules located a distance from the vehicle OBD connector such as in the vehicle trunk.

The long OBD cable 663 112 only transmits at a baud rate of 10400 compared to the high speed 115K baud for 663 111.

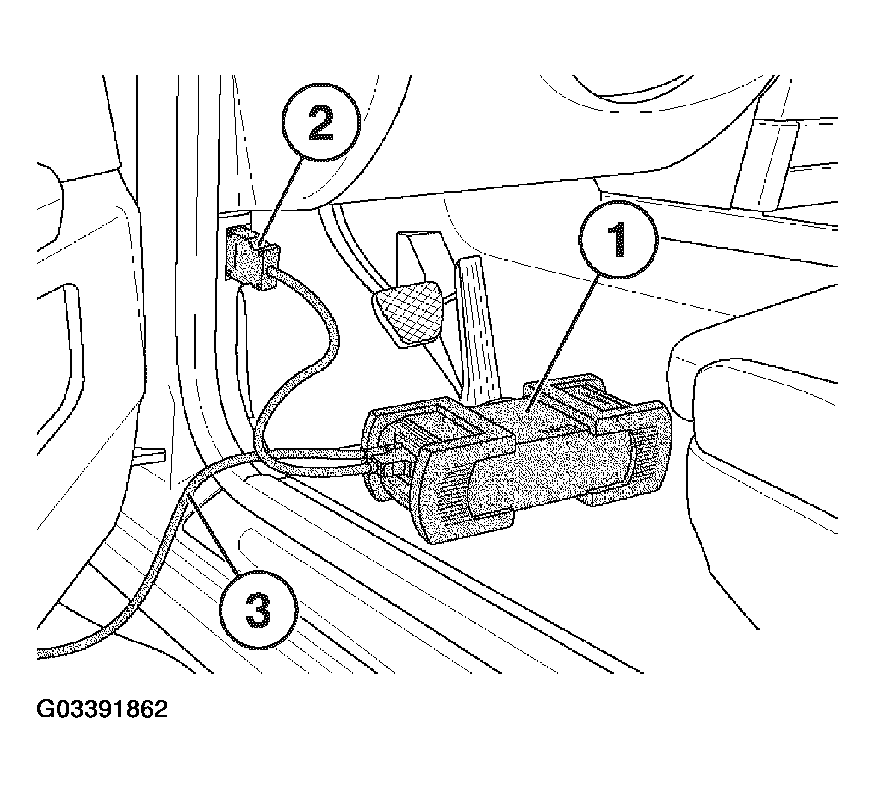

Fig 2: Identifying OBD Connections Long Version P/N 663 111

Courtesy of BMW OF NORTH AMERICA, INC.
