Included With OPPS:

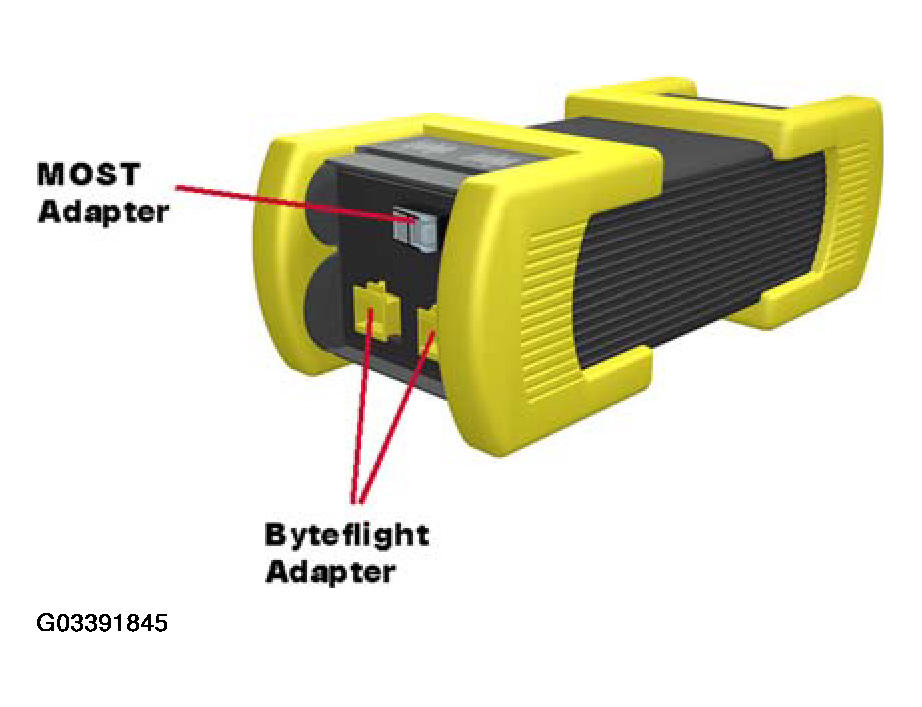

Fig 1: Identifying Optical Testing And Programming System - OPPS Adapters

Courtesy of BMW OF NORTH AMERICA, INC.

• OPPS unit
• Assorted fiber optic test cables
• 2 Owners manuals (device and cables)
• Fiber Optic test loop device
• 2 Carrying cases
• 2 OBD cables

Cabling Setups:

There are 2 different cabling setups that are addressed in this section. Each is used for E65/E66 programming and MOST/Byteflight diagnosis. Each OPPS will require 1 Network IP address and 1 wall mounted LAN receptacle. API has acquired the additional IP address (es) for each center.

If upon receiving your OPPS the workshop has a sufficient number of LAN receptacles, use cable setup #2. If the workshop does not have a sufficient number of wall mounted LAN receptacles, use cable setup #1. The following is an overview of the 2 different cabling setups.

1. Cable setup #1 This setup should be used if the OPPS is operated independent of the workshop network.
2. Cable setup #2 This setup should be used if the OPPS is operated on the workshop network.
