Cable Setup #1 - To Be Used If The Network Is Not Operational (Using GT1)

This setup may be used temporarily if the network is not operative, there are not enough LAN wall drops or network IP addresses are in conflict. The vehicle is direct wired to the OPPS and the GT1, which is direct wired to the printer via the USB A/B cable (1 piece supplied to every center with the first GT1 delivered). The USB printer cable can stay attached to the printer even if the printer is working on a network. The printer configuration must be changed to "Local printer" in the GT1.

NOTE: This setup requires a direct USB cable connection to the printer. This greatly limits GT1 mobility and will not allow the update of diagnostic programs via the network, which will be available as of the third quarter of 2002. It should only be used as an exception for the reasons stated above. This setup may also be used for E65/E66 programming.

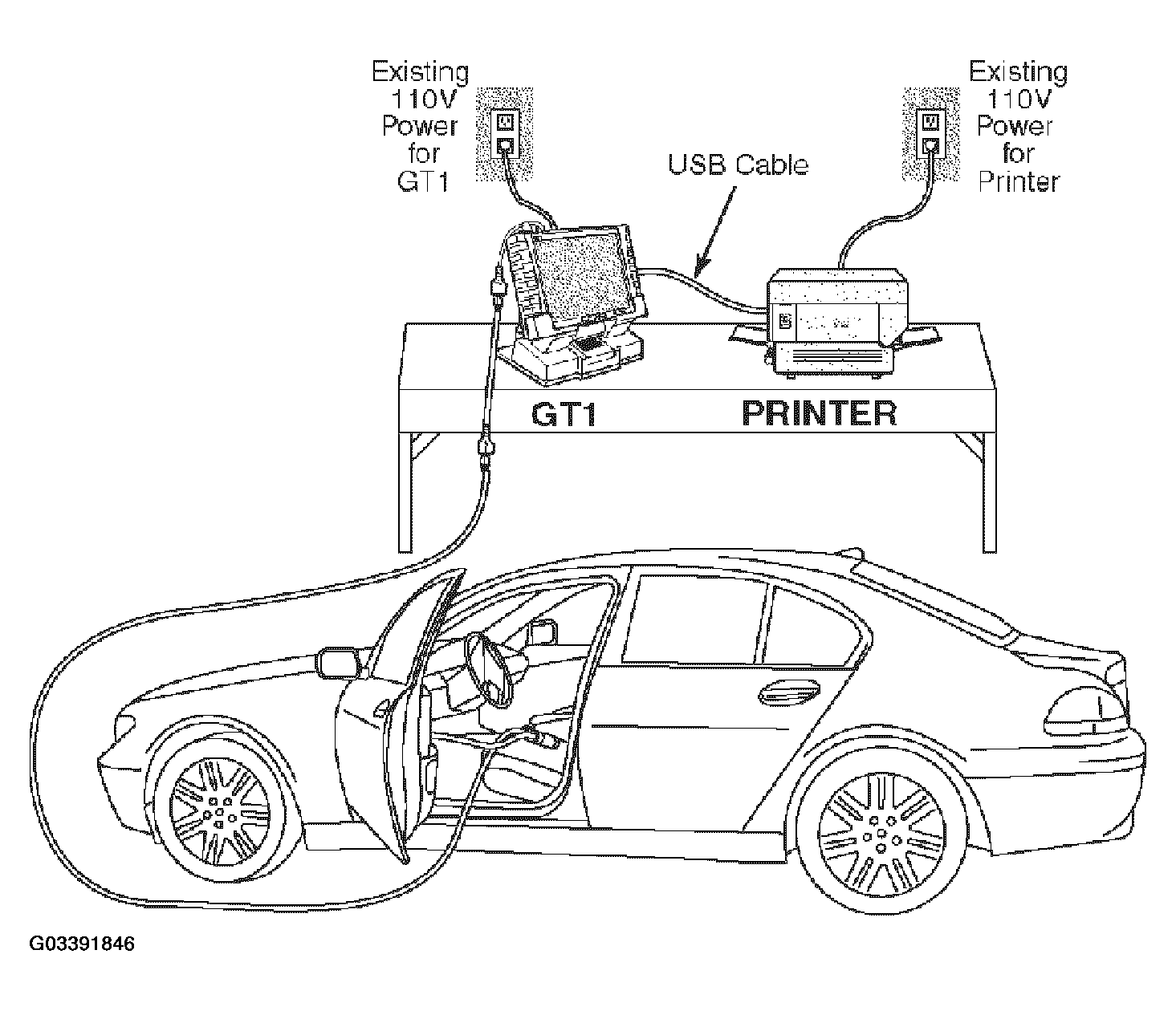

GT1 Wired to OPPS (Setup #1)

Fig 1: Identifying GT1 Wired To OPPS (Setup 1)

Courtesy of BMW OF NORTH AMERICA, INC.

For this setup you will need the following cables:

Straight adapter marked "LAN adapter BT 1:1" (2)
Cross over adapter marked "LAN adapter BT X" (3)
DK LAN cable marked "LAN Kabel DK" (4)
Short OBD cable for OPPS P/N 663 111 (6)

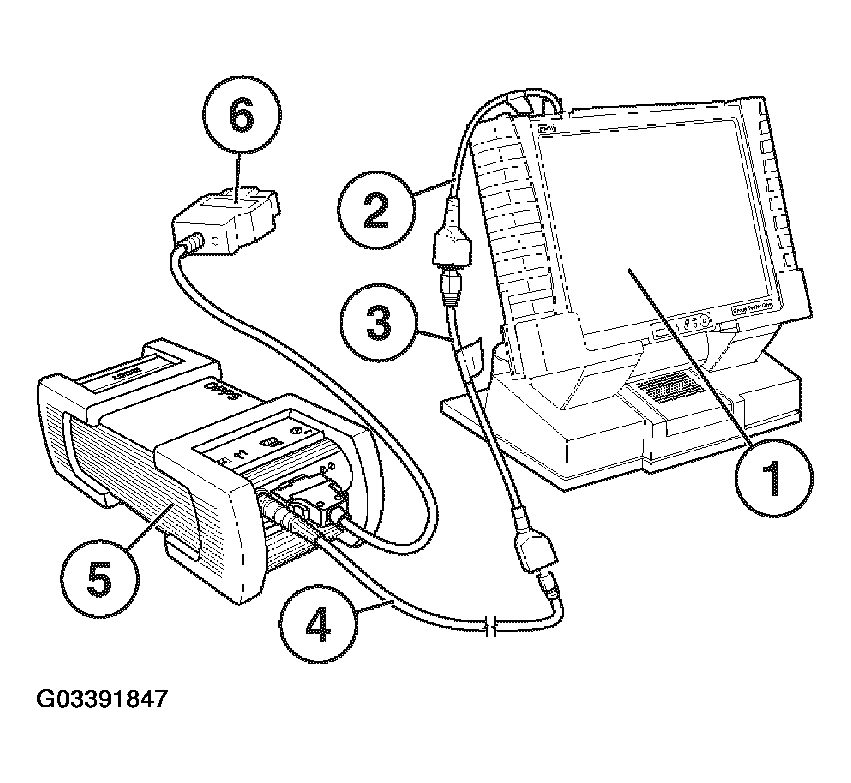

Fig 2: Identifying Cables For Set Up 1
Courtesy of BMW OF NORTH AMERICA, INC.

Attach the straight adapter to the control panel LAN connector (4).
Note that the straight adapter stays attached to the GT1 regardless of which cable setup is used.

Fig 3: Attaching Straight Adapter To Control Panel LAN Connector
Courtesy of BMW OF NORTH AMERICA, INC.
Attach the cross over adapter (3) to the free end of the straight adapter (2).
Attach the DK LAN cable (4) to the free end of the cross over cable (3).

Fig 4: Attaching Cross Over Adapter To Free End Of Straight Adapter
Courtesy of BMW OF NORTH AMERICA, INC.
Attach the free end of the DK LAN cable (Orange connector) to the OPPS (1 below).

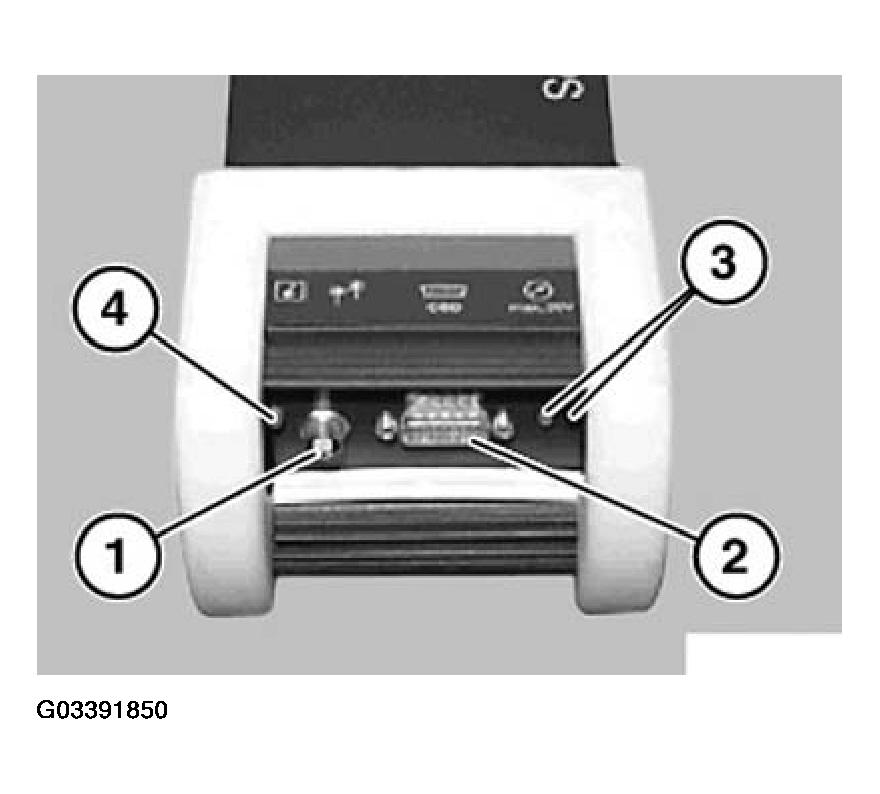

Attach the chrome connector end of OBD cable (short) 663 111 to OPPS connector (2). This OBD cable is used for diagnosis and for CIP programming.
Establish communication with the vehicle via the usual procedure. OPPS takes slightly longer to perform the "self test" than the DISplus/GT1 head.

Fig 5: Attaching Chrome Connector End Of OBD Cable (Short) 663 111 To OPPS Connector
Courtesy of BMW OF NORTH AMERICA, INC.

Printer connection - at this time the printer is connected to the GT1 via the USB connector on the control panel (6).

NOTE: Do not connect the USB connector to the docking station USB connection. The docking station printer interface software is not operational at this time.

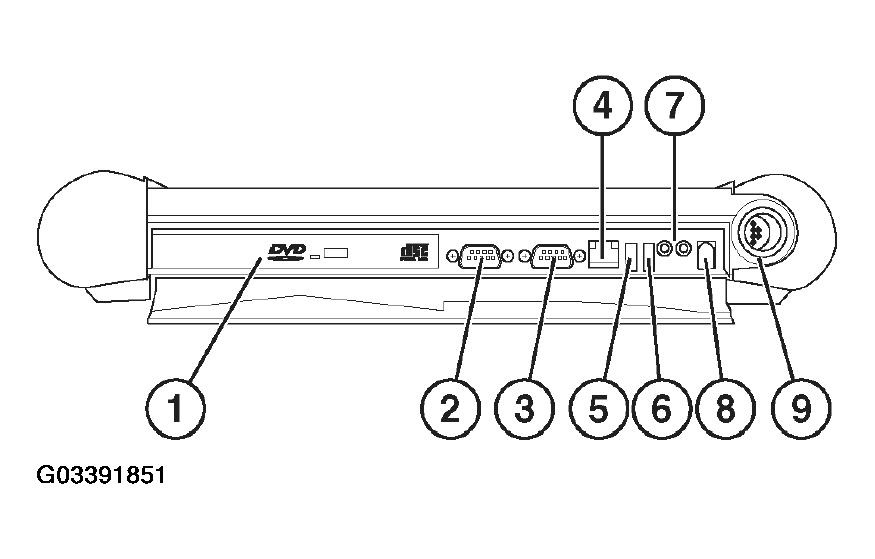

Fig 6: Identifying Printer Connections
