Brake/Clutch Switch Inputs

The brake and clutch switch signals are input to the MS S52 control module for cruise control operation.

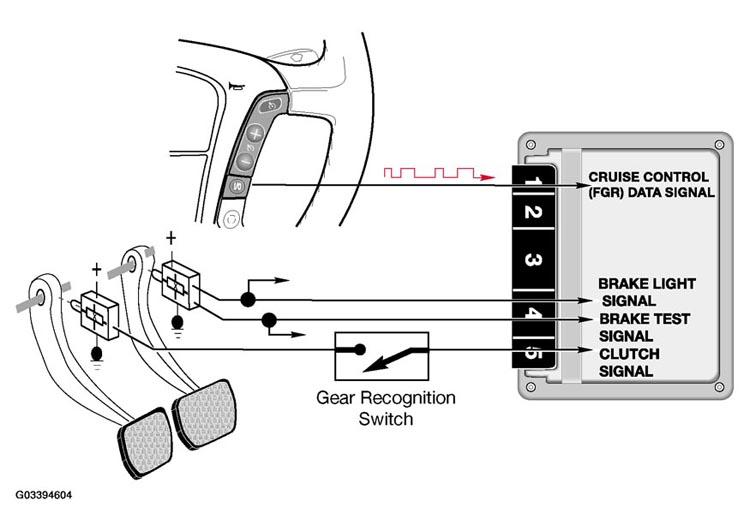

Fig 1: Identifying Brake/Clutch Switch Inputs/Outputs
G03394604Courtesy of BMW OF NORTH AMERICA, INC.
