Automatic Date/Time Display

When a door is opened the GM signals status of "door open" on the K-bus. Via the I-Bus, the IKE passes the signal onto the navigation computer which generates the RGB signals for display of the Date/Time on the bottom edge of the LCD.

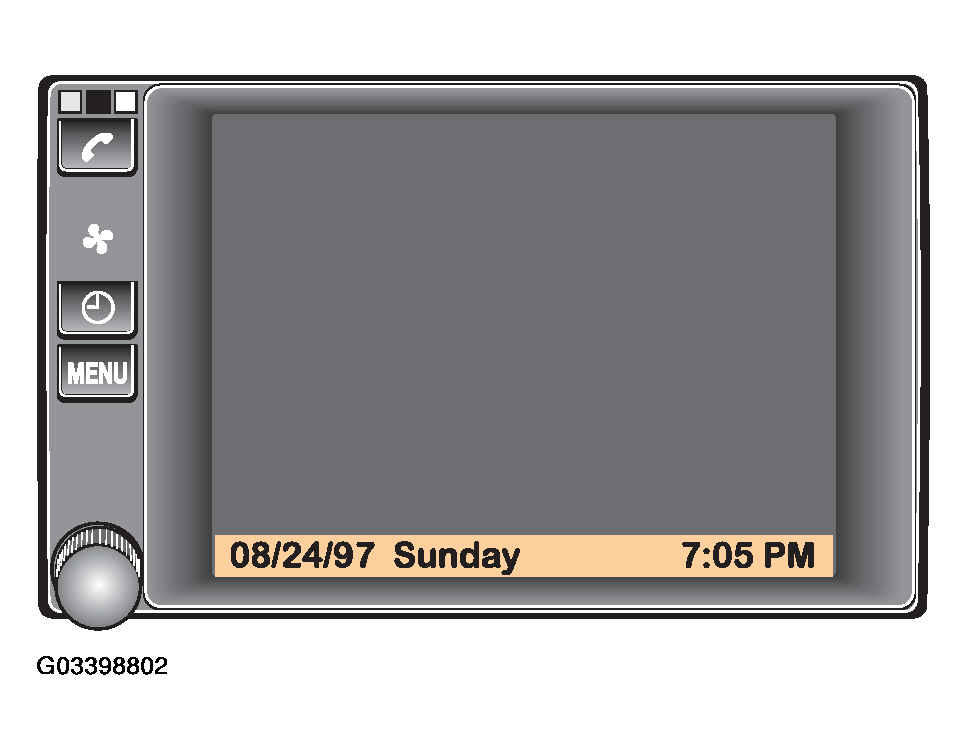

Fig 1: Identifying Date/Time Display

Courtesy of BMW OF NORTH AMERICA, INC.

The Set function of the opening menu provides additional owner customized settings for the board monitor display. After selecting set from the main menu, scroll down to the bottom of the list, an additional three items are included:

• BC display: Provides selection of either the outside temperature or estimated arrival time of the set distance set in the board computer functions. These items are displayed along with the other BC functions when the Audio and BC set function is "On".

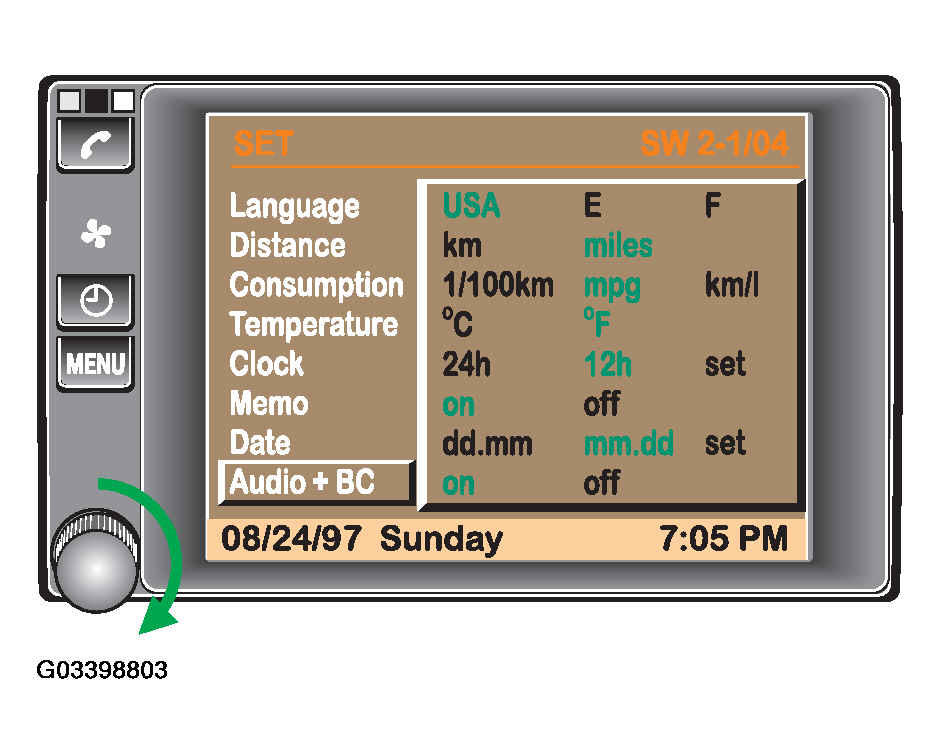

  Fig 2: Identifying BC Display Selection

  Courtesy of BMW OF NORTH AMERICA, INC.
• Color set: Provides three set variations of screen color schemes.
• Day/night: Provides a deviation of the selected color set when the headlights are switched on.

Though subtle, these changes provide added convenience and provide the owner the opportunity to slightly customize their vehicle's On-board monitor display.

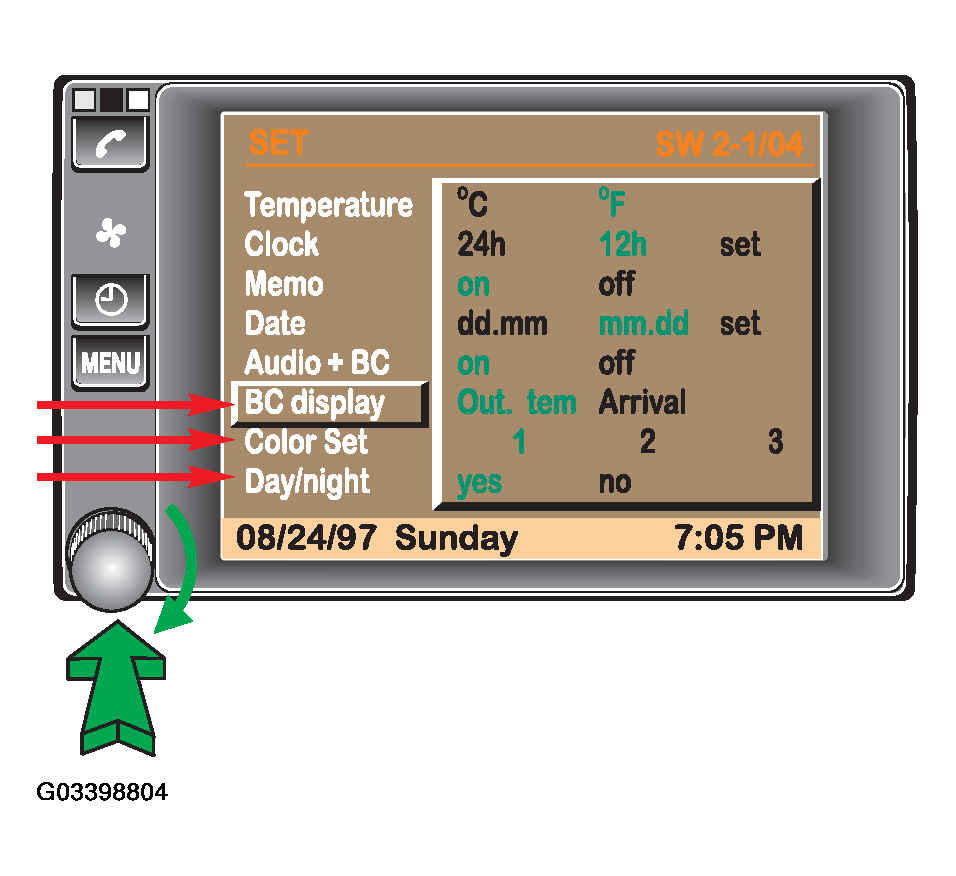

Fig 3: Identifying BC Display, Color Set And Day/Night Selections

Courtesy of BMW OF NORTH AMERICA, INC.
