Modulated B+

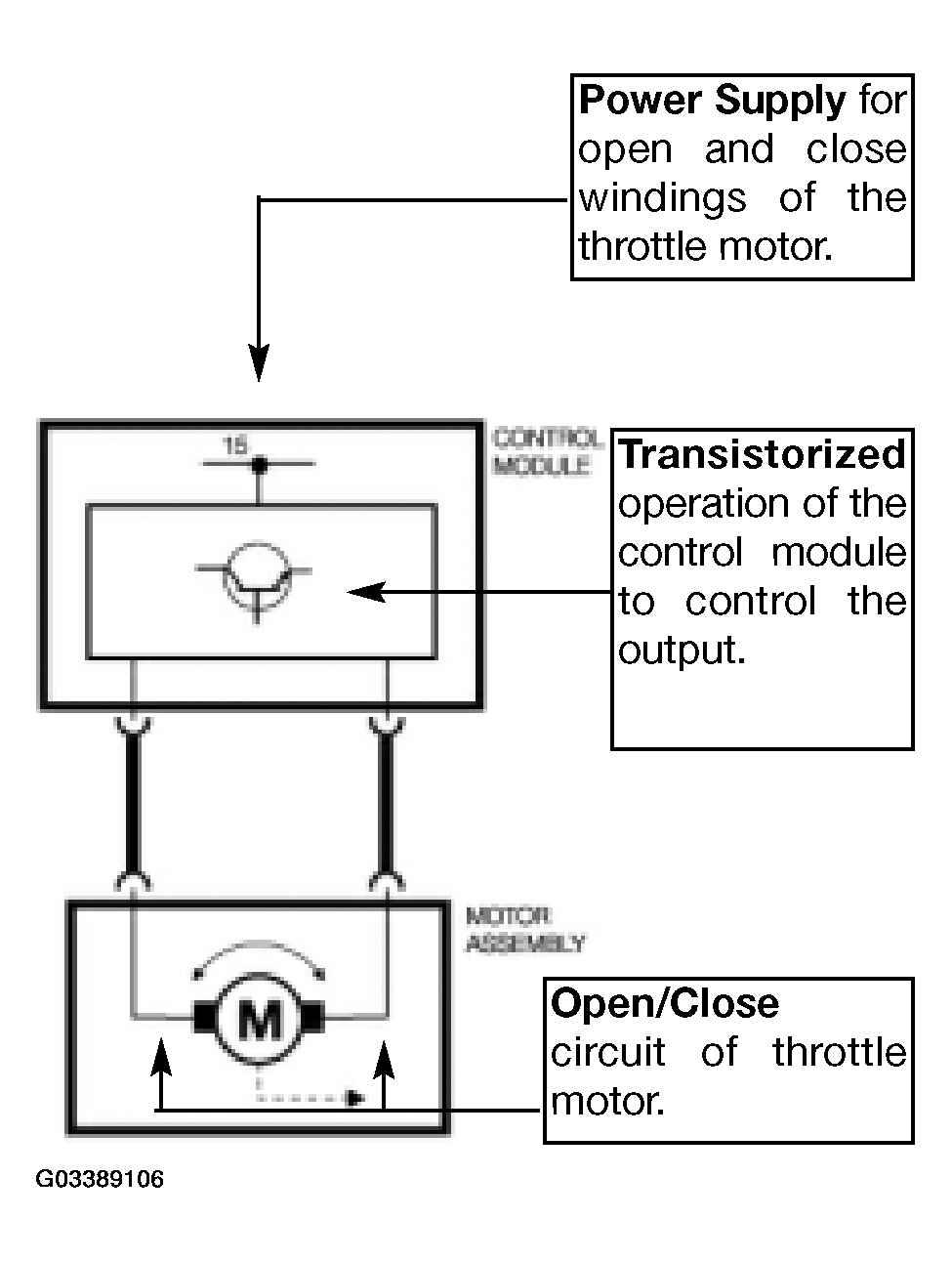

Fig 1: Identifying Output Function To Operate Component (Modulated B+)

Courtesy of BMW OF NORTH AMERICA, INC.

Output function to operate a component.

The motor is controlled by a transistorized function of the control module, which provides a modulated voltage at a specific frequency to the motor. The throttle position is changed by altering the Duty Cycle of the pulses.
