Constant B+

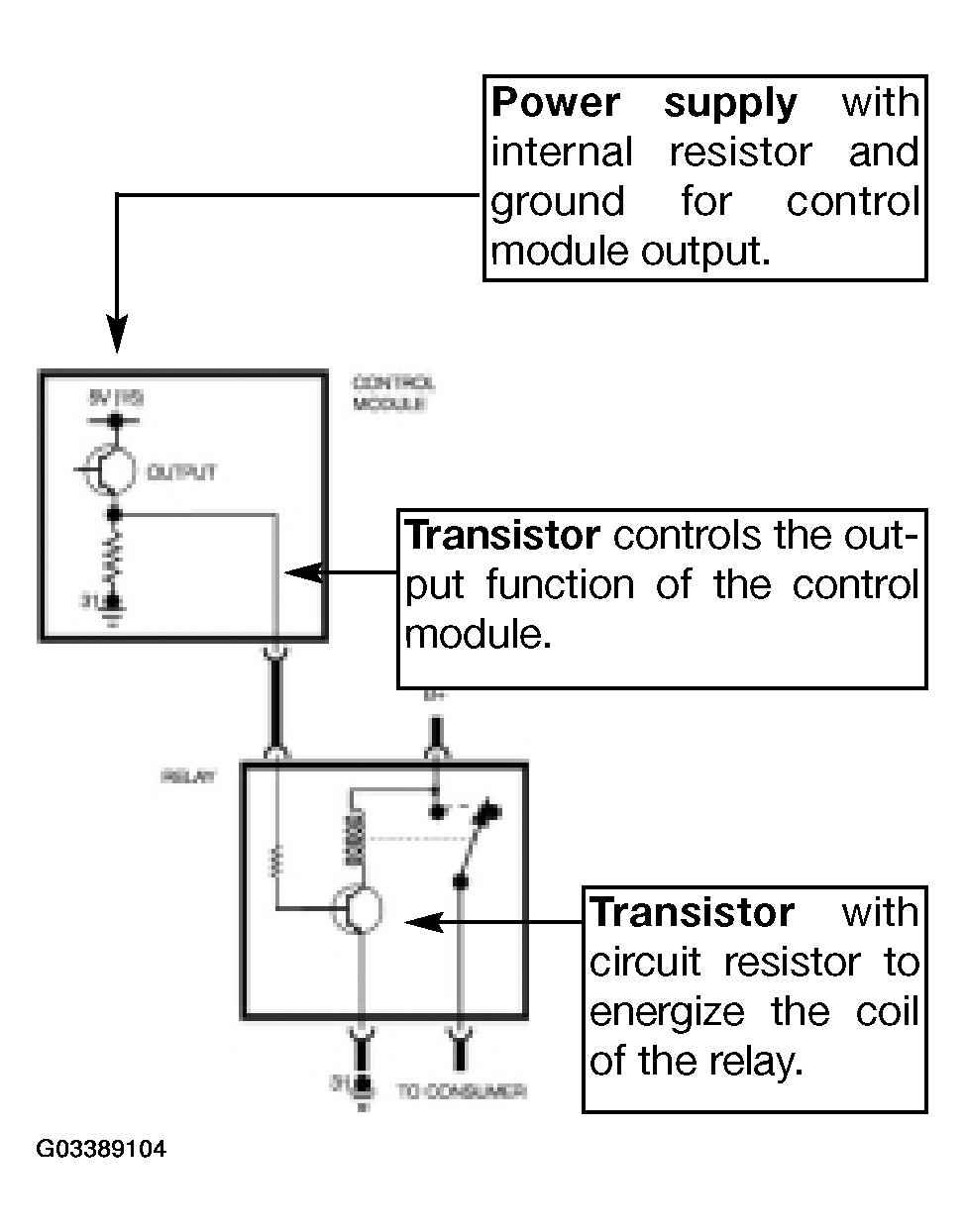

Fig 1: Identifying Output Function To Energize Component (Constant B+)

Courtesy of BMW OF NORTH AMERICA, INC.

Control module output function to energize a component.

Transistor controls output function of the control module.

Control module supplies power to the relay. The relay is activated by the control module through internal activation of the transistor which provides a ground for the relay coil.
