86 10 ... Replacing position light

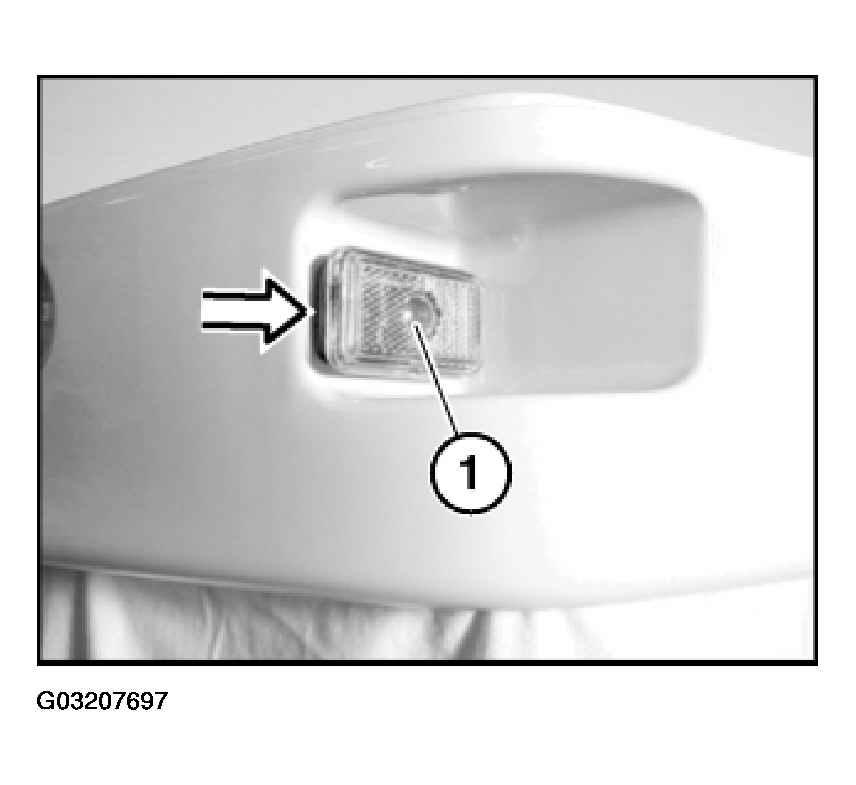

Unclip cover (1) on side recess (arrow).

Fig 1: Unclipping Cover On Side Recess

Courtesy of BMW OF NORTH AMERICA, INC.

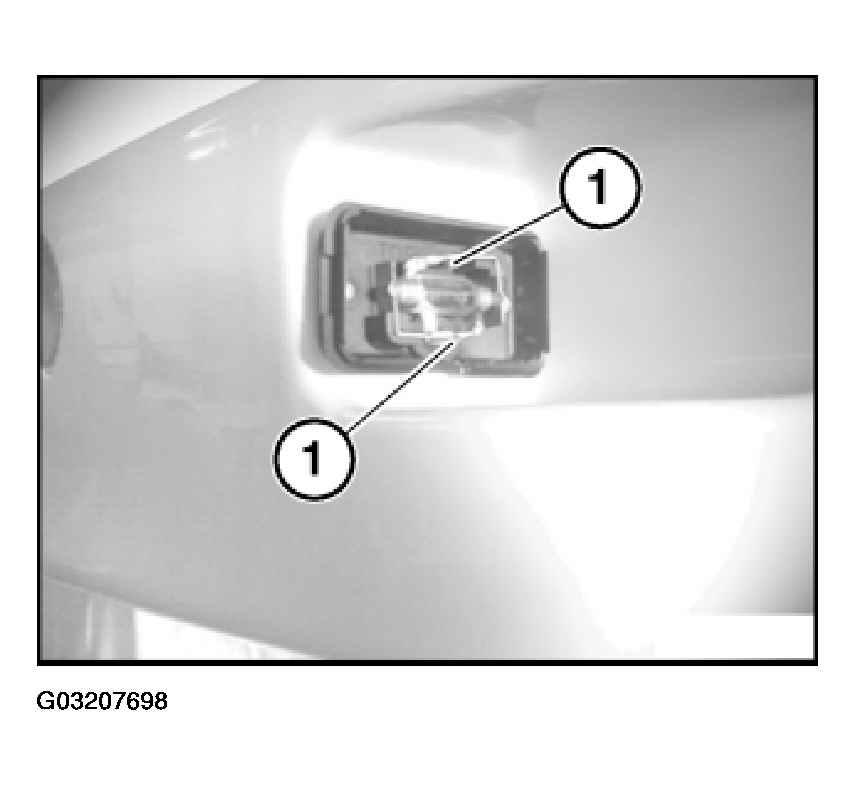

Pull flat connector (1) from flat contact.

Fig 2: Pulling Flat Connector From Flat Contact

Courtesy of BMW OF NORTH AMERICA, INC.

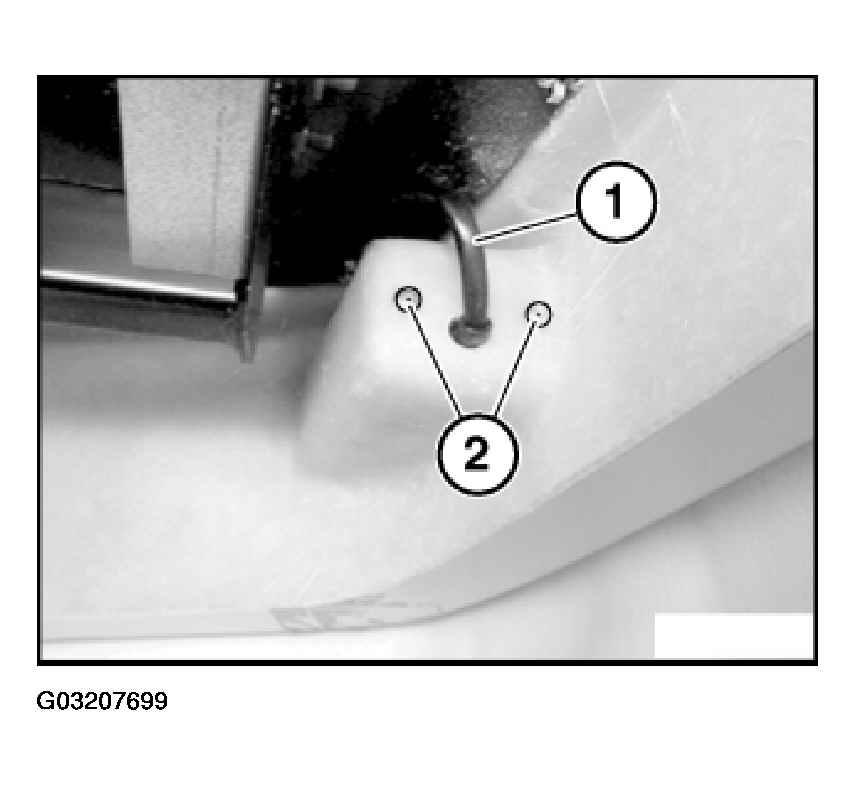

Pull out cable (1) completely.

CAUTION: Before drilling out rivet heads, drive in rivet pins with a punch.
Drill out rivet heads (2) and remove position light housing from front.

Fig 3: Removing Position Light Housing

Courtesy of BMW OF NORTH AMERICA, INC.
