86 10 ... Replacing license plate light

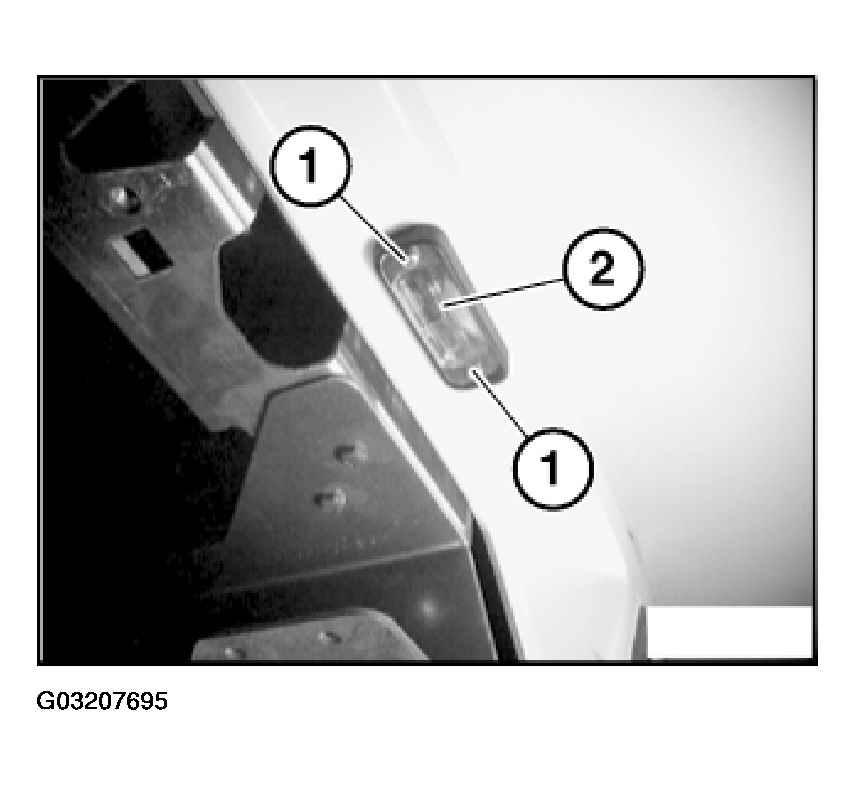

Release screws (1) and remove license plate light (2) from mounting.

Fig 1: Removing License Plate Light

Courtesy of BMW OF NORTH AMERICA, INC.

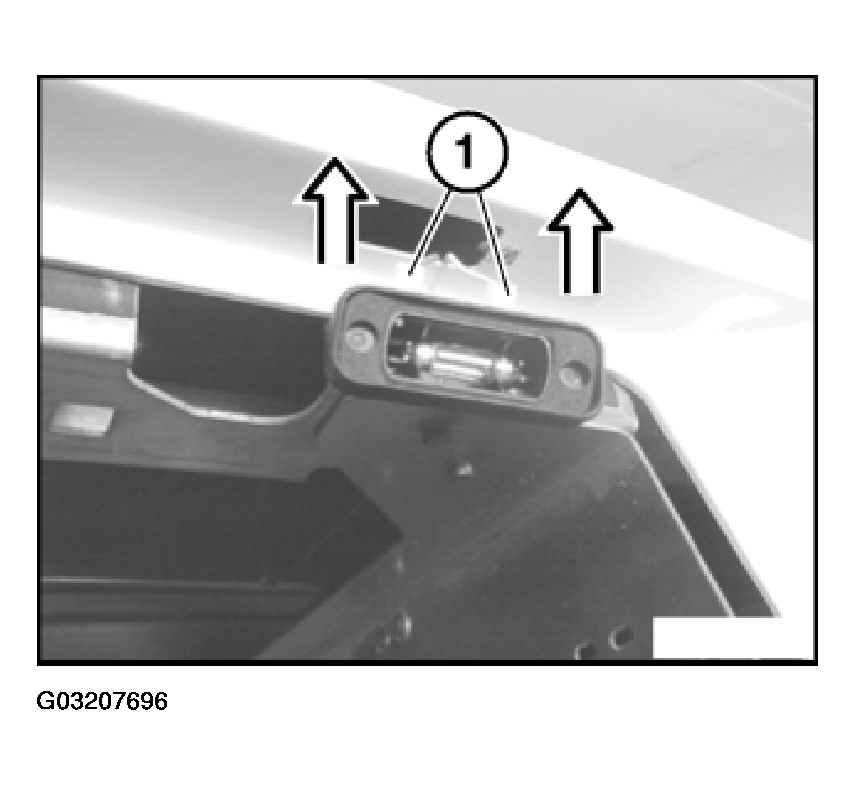

Disconnect flat connector (1) in direction of arrow.

Fig 2: Disconnecting Flat Connector

Courtesy of BMW OF NORTH AMERICA, INC.
