86 10 ... Removing outer pull rod mount, left and right

Release screws (1) and remove pull rod mount (2).

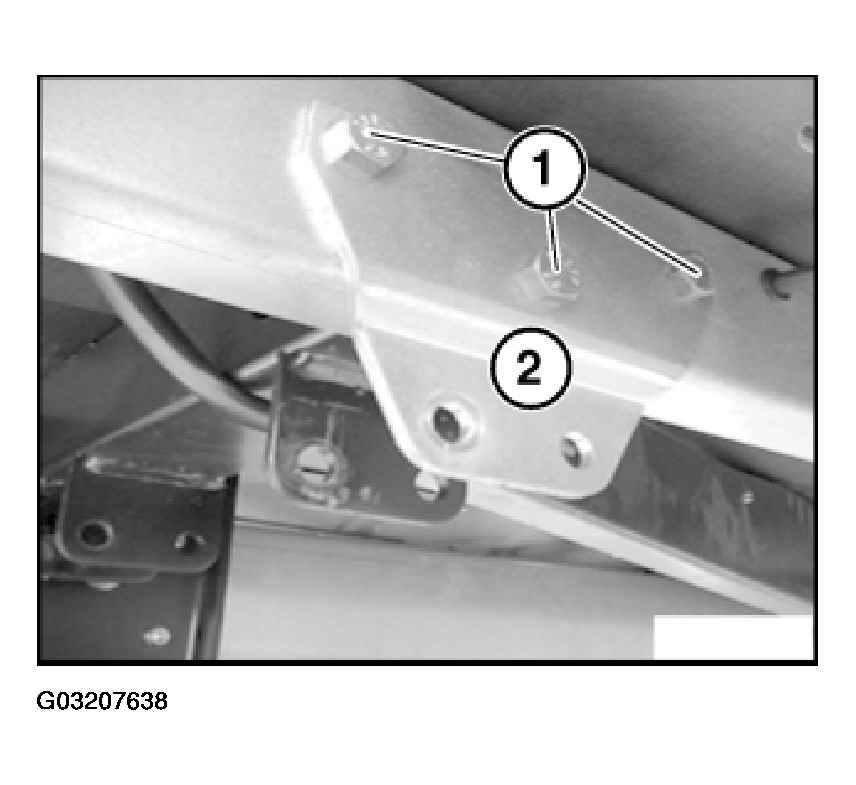

Fig 1: Removing Pull Rod Mount
G03207638Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening Torque, 55 Nm.
