86 10 ... Removing mounting bracket sealing cap

Cut out mounting bracket (3) along markings (1, 2) and lever out of apron (4).

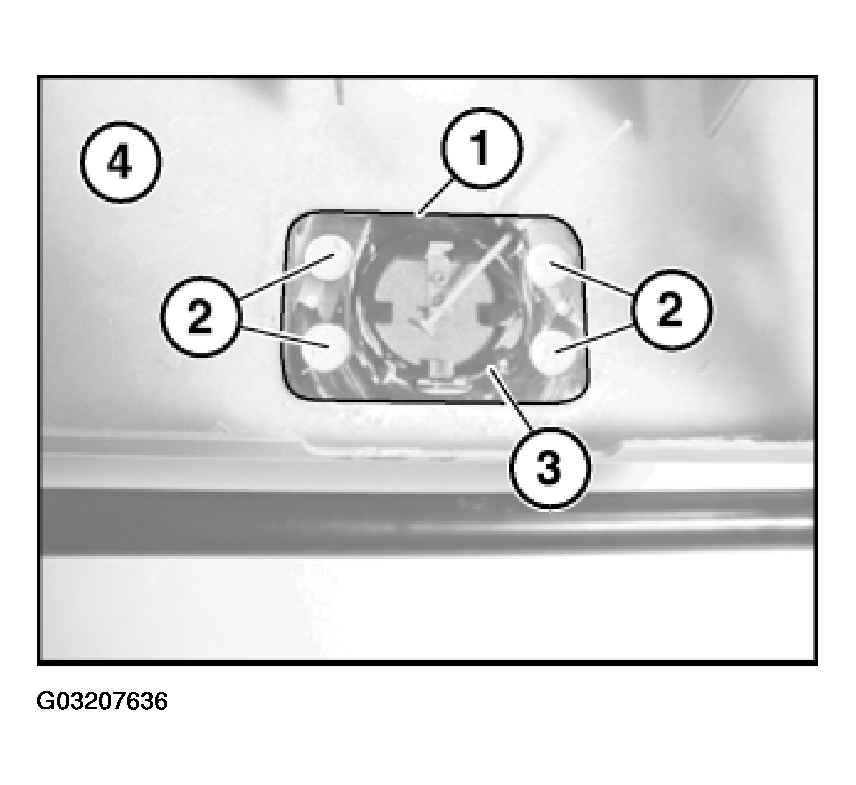

Fig 1: Removing Mounting Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

For gluing, use two-component adhesive ICEMA R 101 and hardener 7.

Mixture ratio: ICEMA R 101 7 parts; hardener 7 1 part.
