86 10 ... Removing bolt on loading ramp

Insert a drift into hole (1) of bolt (2) and turn clockwise.

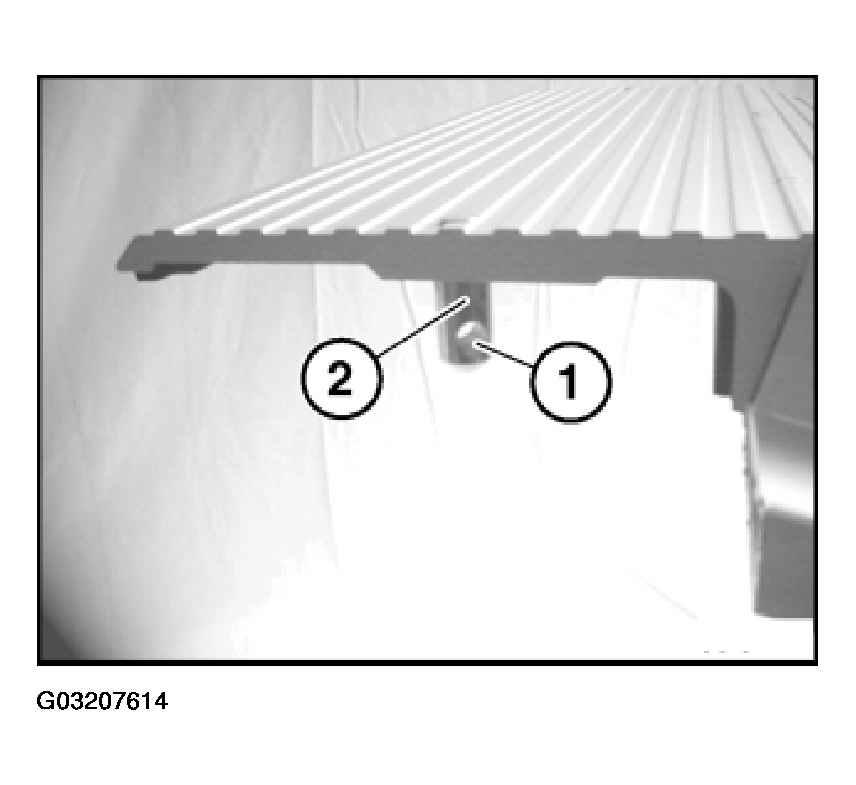

Fig 1: Removing Bolt On Loading Ramp

G03207614

Courtesy of BMW OF NORTH AMERICA, INC.
