86 10 ... Removing Camlock screw cap

Bend back edges (1) of tab washer (2). Remove tab washer (2) over cross pin (3) towards bottom.

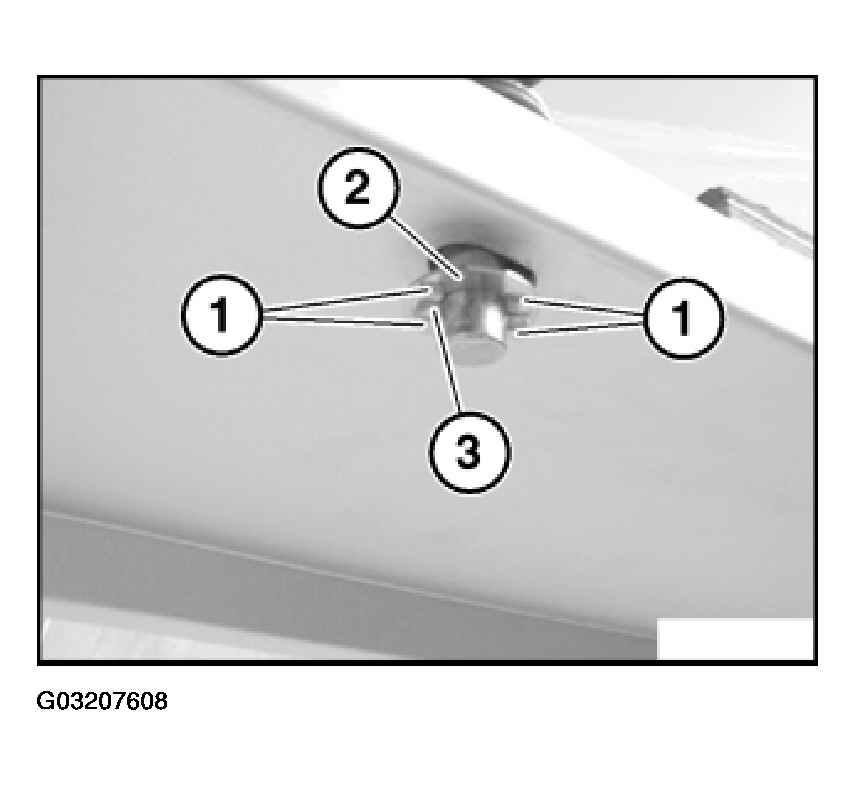

Fig 1: Removing Camlock Screw Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace lockplate.
