86 10 ... Removing Camlock retaining cam on loading ramp

Drill out rivets (1).

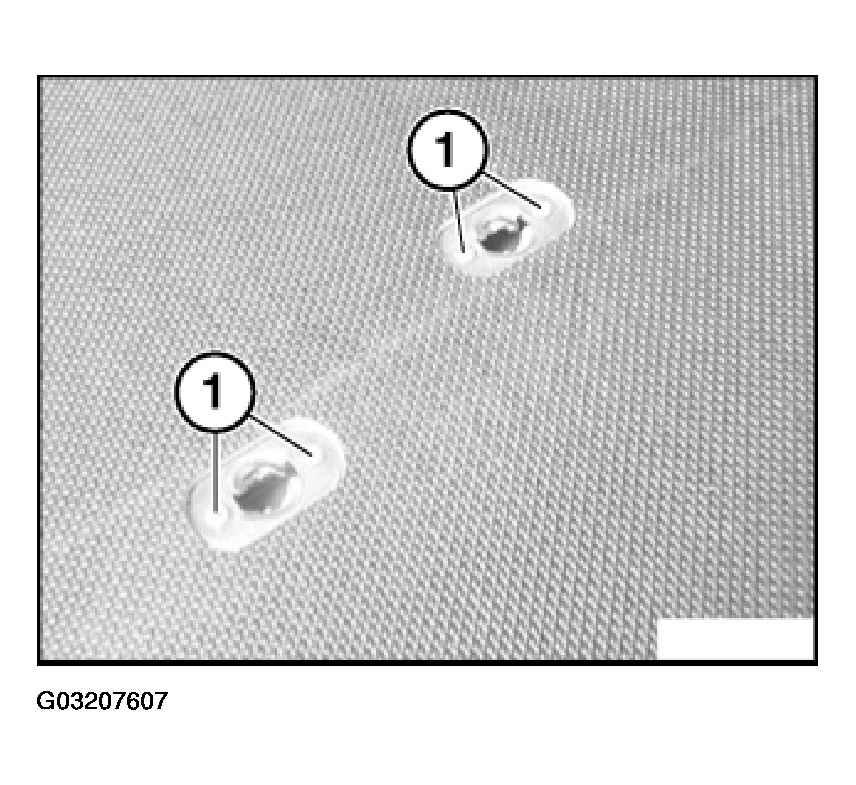

Fig 1: Identifying Loading Ramp Rivets

G03207607

Courtesy of BMW OF NORTH AMERICA, INC.
