61 13 ... Relay carrier

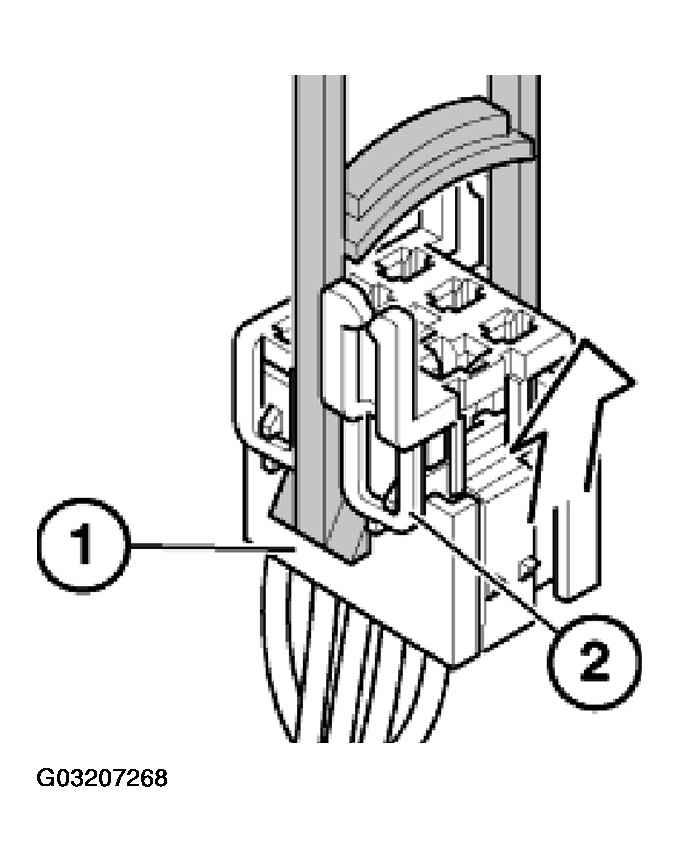

Place special tool 61 1 153 on relay carrier (1) and carefully pull in direction of arrow until retaining lugs (2) on relay carrier are raised.

Fig 1: Placing Special Tool On Relay Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

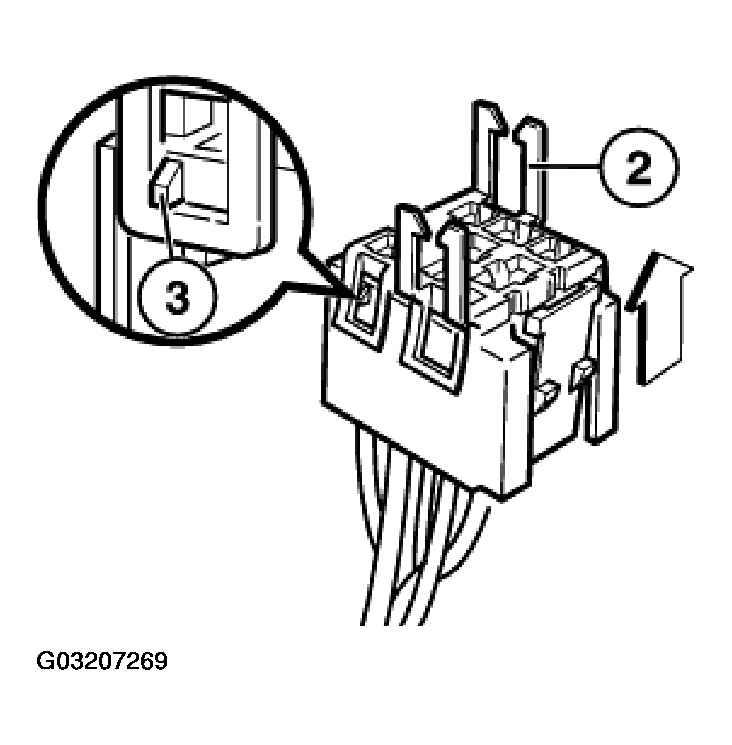

Pull relay carrier (2) in direction of arrow into first catch (3).

Fig 2: Pulling Relay Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

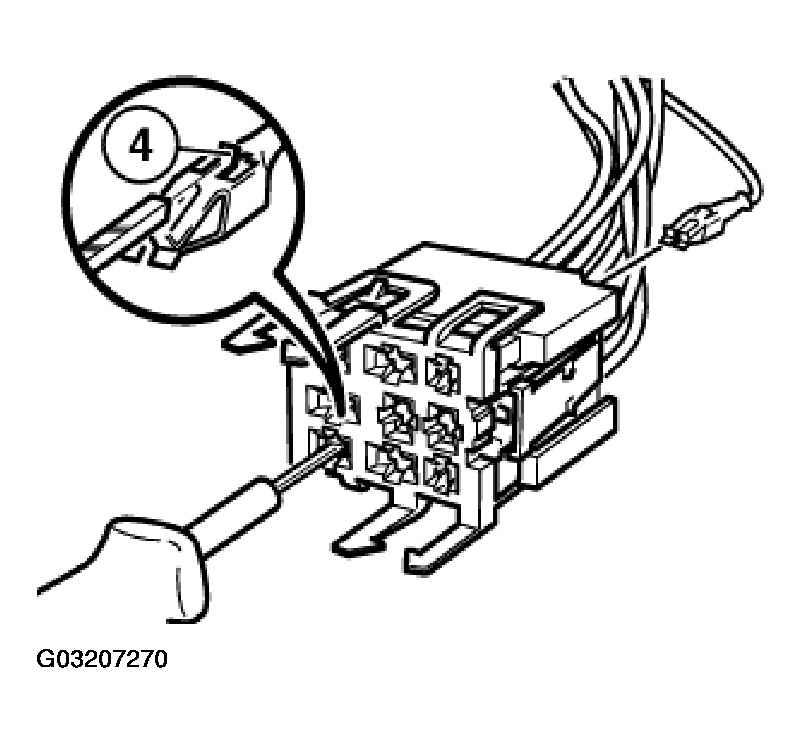

Press down arrester hook (4) of appropriate contact and pull out cable with contact.

Fig 3: Pulling Out Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Press out double flat spring contact with special tool 61 1 136 or 61 1 137 (ejector).
