Fresh Air System

The fresh air system of the E85 is specifically configured for the M54 engine and on the M54B30 engine, there is an integrated Motor Sound System (MSS).

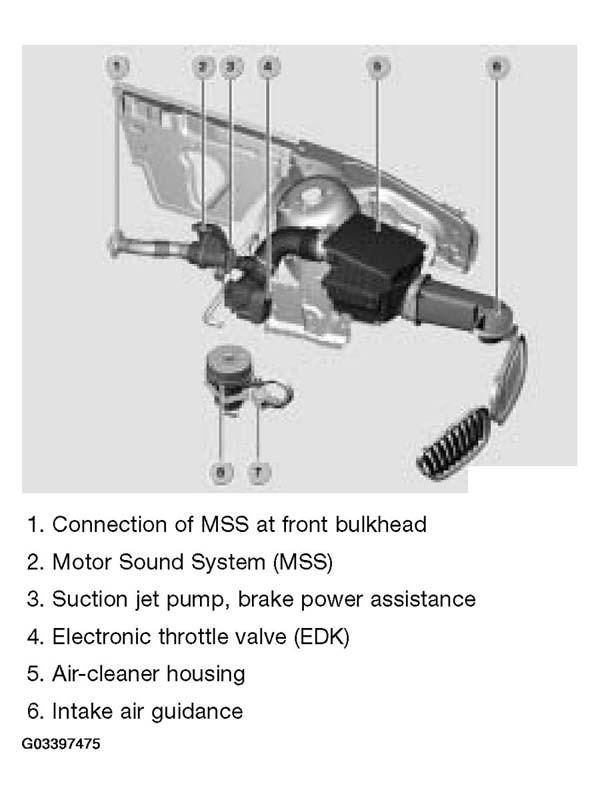

Fig 1: Identifying Fresh Air System
G03397475Courtesy of BMW OF NORTH AMERICA, INC.
