Cooling Module

The E85 cooling system uses a cooling module similar to the E46.

On the E85, the cooling module is separated by a partition (radiator core support) from the engine.

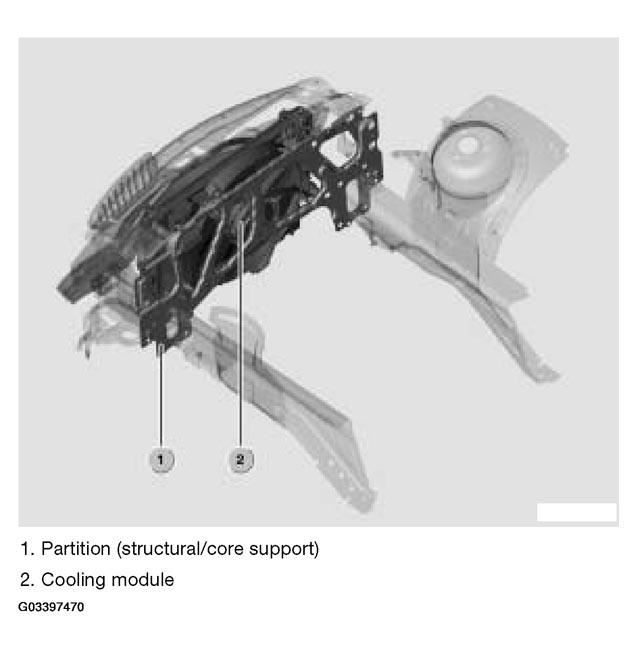

Fig 1: View Of Cooling Module (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

The cooling module contains the following cooling system components:

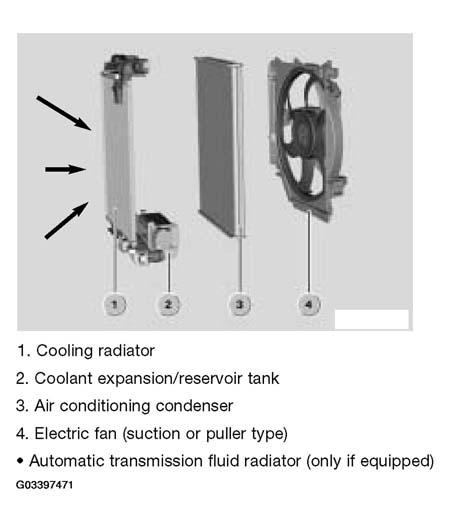

Fig 2: View Of Cooling System (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
