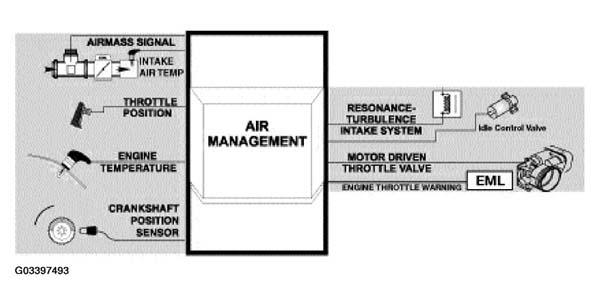

Air Management: Notes
Throttle Valve : The throttle valve plate is electronically operated to regulate intake air flow by the ECM. The purpose is for precision throttle operation, OBD compliant for fault monitoring, DSC and Cruise Control. This integrated electronic throttle reduces extra control modules, wiring, and sensors. Adjusting electronic throttles is not permitted, the throttle assembly must be replaced as a unit. The adaptation values must be cleared and adaptation procedure must be performed using the DISplus/GT1.

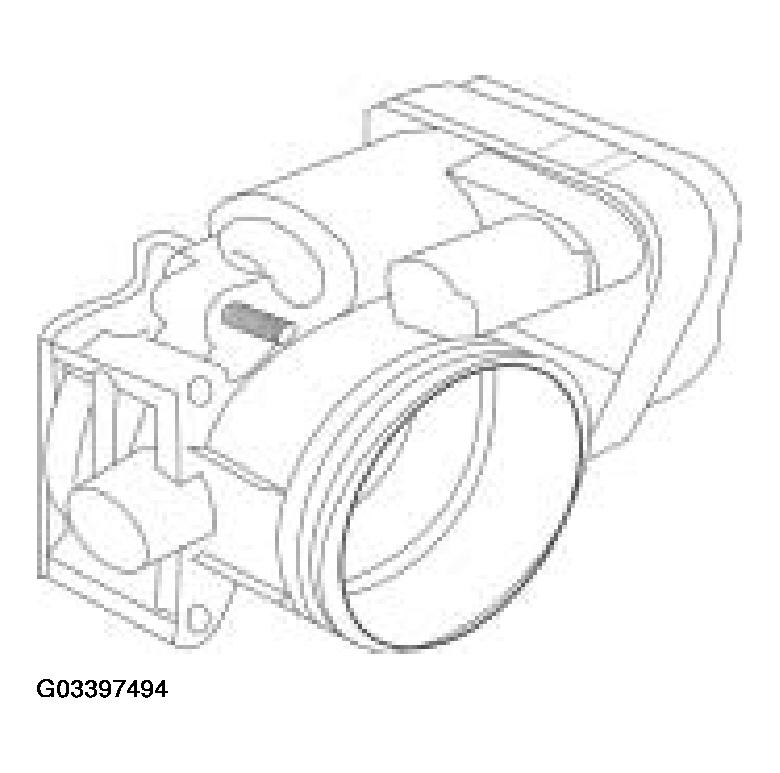

The throttle assembly for the MS45 system is referred to as the EDK. The EDK is distinguished by:
- EDK does not contain a PWG, It is remotely mounted (integrated in the accelerator pedal assembly).
- The accelerator pedal is not mechanically "linked" to the EDK.
Throttle Position Sensor : The accelerator pedal module provides two variable voltage signals to the ECM that represents accelerator pedal position and rate of movement.

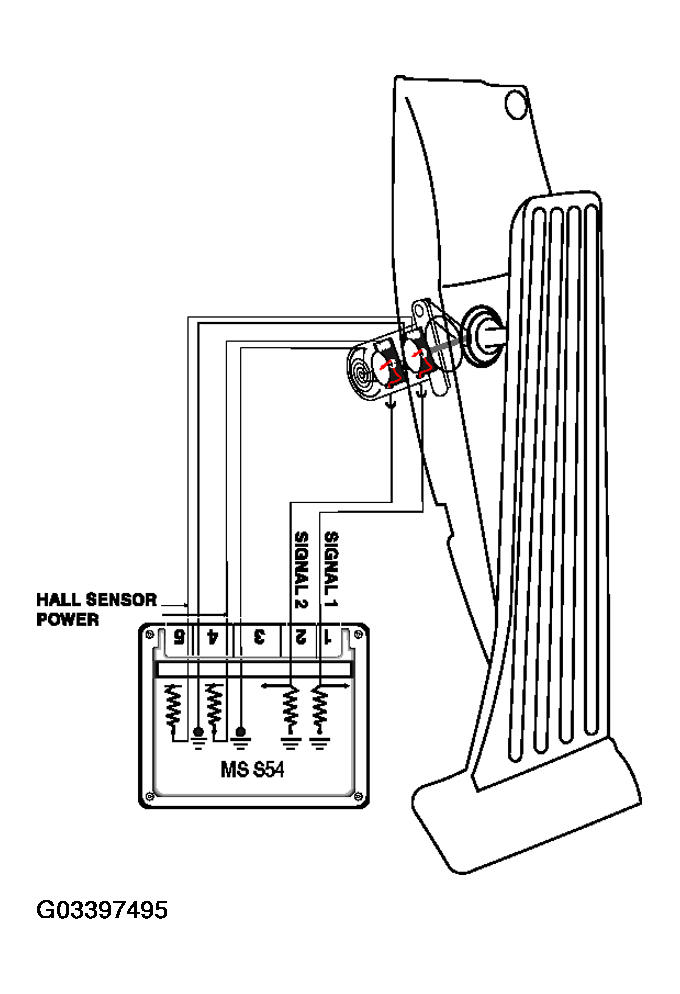

Dual Hall Sensors are integral in the accelerator pedal module. The ECM compares the two values for plausibility. The module contains internal springs to return the accelerator pedal to the rest position.
The ECM provides voltage (5v) and ground for the Hall sensors. As the accelerator pedal is moved from rest to full throttle, the sensors produce a variable voltage signal.

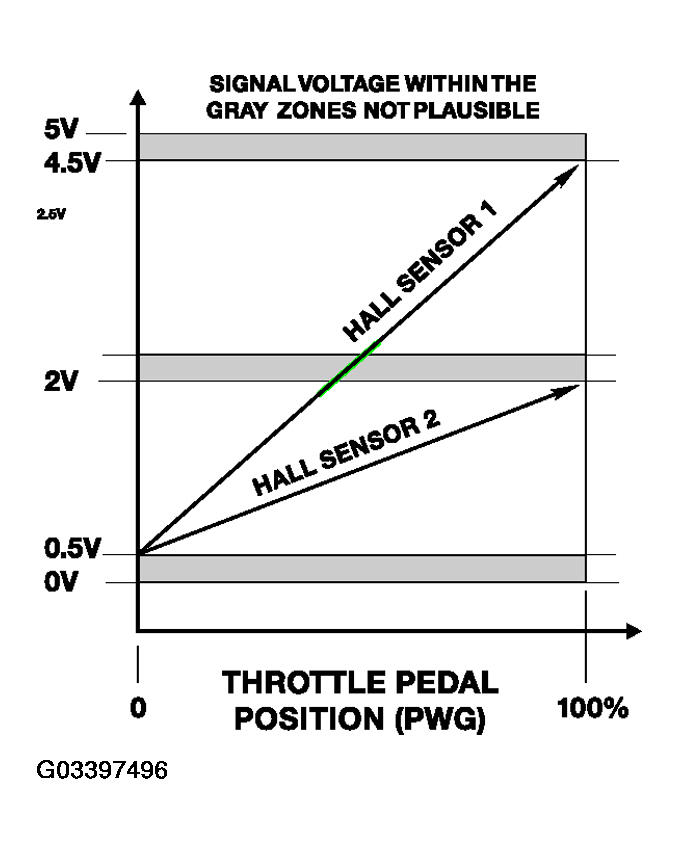

- Hall sensor 1 (request) = 0.5 to 4.5 volts
- Hall sensor 2 (plausibility) = 0.5 to 2.0 volts
If the signals are not plausible, the ECM will use the lower of the two signals as the requested input. The throttle response will be slower and the maximum throttle response will be reduced.

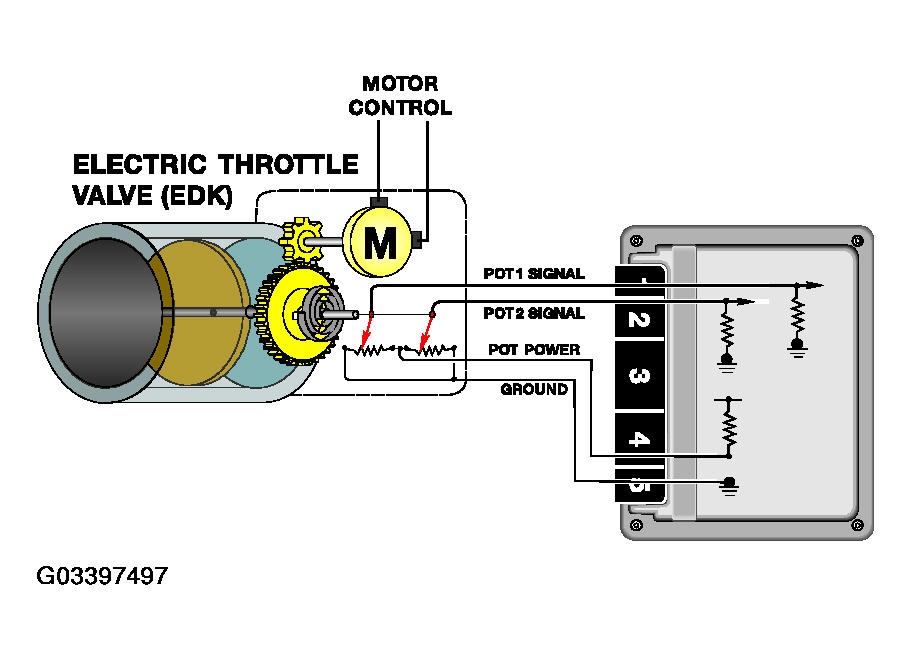

Throttle Motor and Feedback Position : The MS45 ECM powers the EDK motor using pulse width modulation for opening and closing the throttle plate. The throttle plate is also closed by an integrated return spring.
Two integrated potentiometers provide voltage feedback signals to the ECM as the throttle plate is opened and closed.

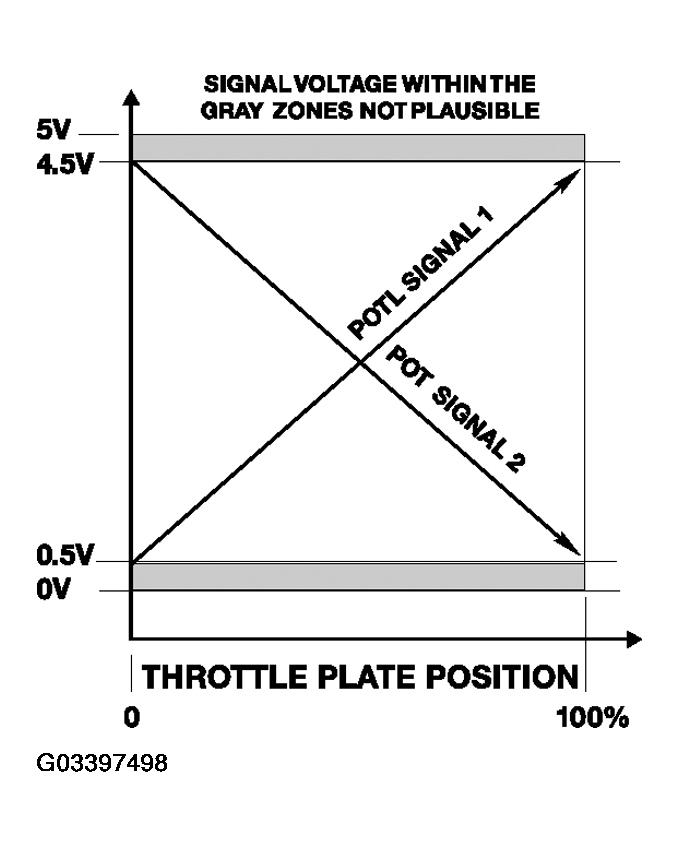

- Feedback signal 1 provides a signal from 0.5v (closed) to 4.5 V (Full Throttle)
- Feedback signal 2 provides a signal from 4.5v (closed) to 0.5V (Full Throttle)
Potentiometer 1 is the primary feedback signal of throttle plate position and signal 2 is the plausibility cross check through the complete throttle plate movement.
Idle Air Actuator : This valve regulates air by-passing the throttle valve to control the engine idle/low speed.

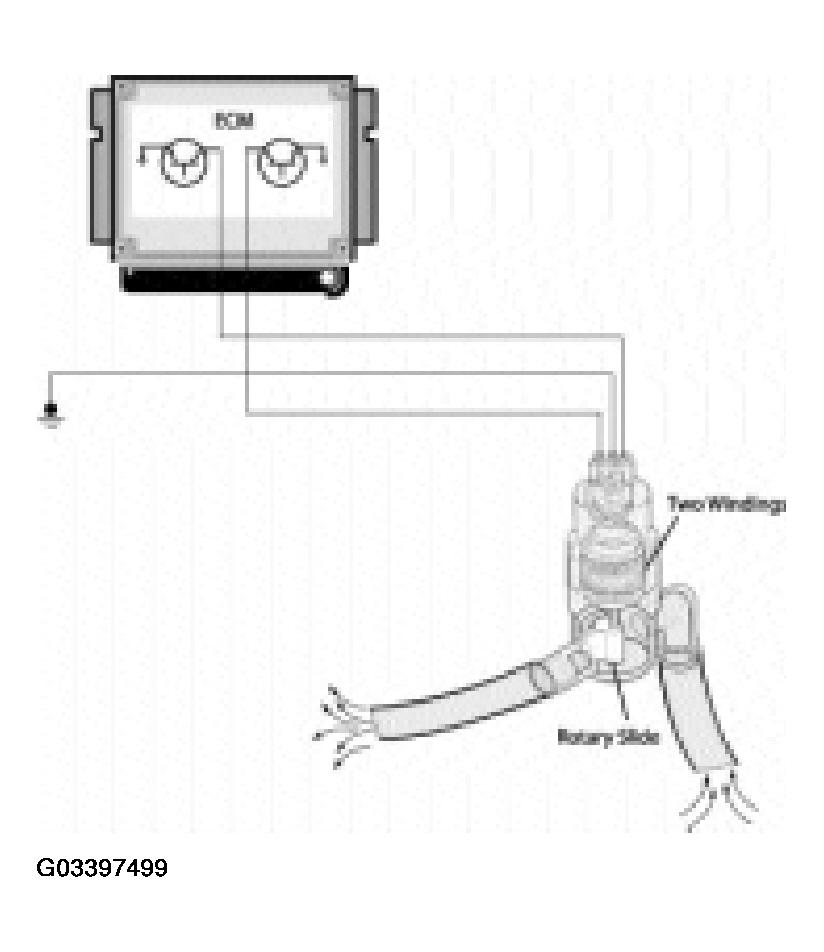

The valve is supplied with battery voltage from the ECM Relay. The Idle Air Actuator is a two-coil rotary actuator. The ECM is equipped with two final stage transistors which will alternate positioning of the actuator.
The final stages are "pulsed" simultaneously by the ECM which provides ground paths for the actuator. The duty cycle of each circuit is varied to achieve the required idle RPM.
If this component/circuits are defective, a fault code will be set and the "Malfunction Indicator Light" will be illuminated when the OBD II criteria is achieved.

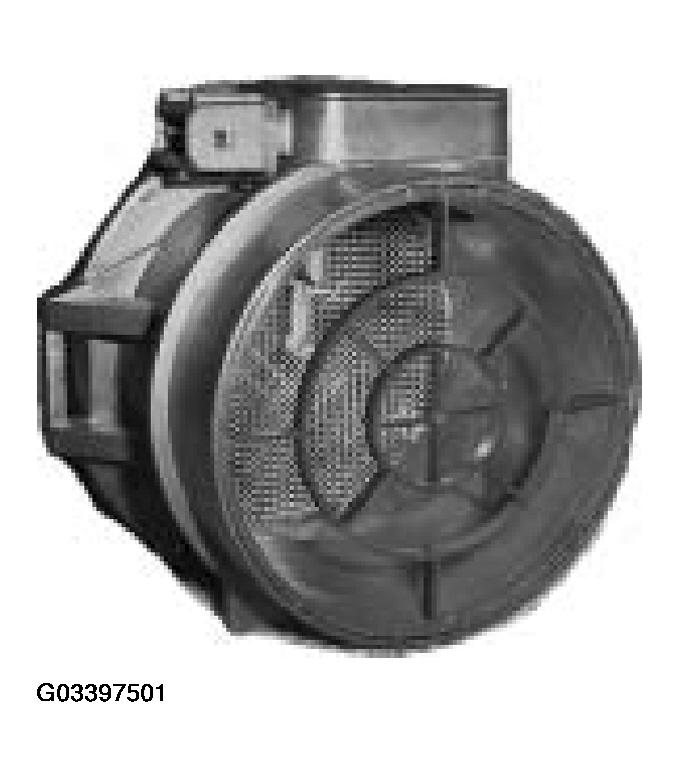

Hot-Film Air Mass Meter (HFM) : The air volume input signal is produced electronically by the HFM which uses a heated metal film (180° C above intake air temperature) in the air flow stream.

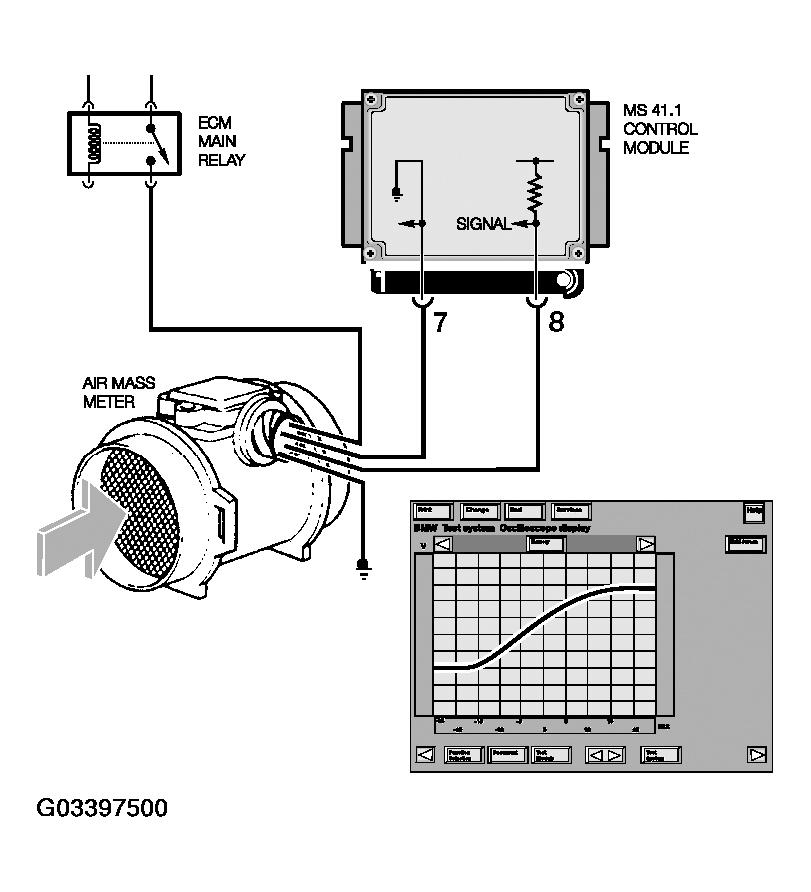

The ECM Relay provides the operating voltage. As air flows through the HFM, the film is cooled changing the resistance which affects current flow through the circuit. The sensor produces a 1-5 volt varying signal. Based on this change the ECM monitors and regulates the amount of injected fuel.
If this input is defective, a fault code will be set and the "Malfunction Indicator Light" will be illuminated when the OBD II criteria is achieved. The ECM will operate the engine using the Throttle Position and Engine RPM inputs.
Air Temperature Signal : The HFM contains an integral air temperature sensor. This is a Negative Temperature Coefficient (NTC) type sensor. This signal is required by the ECM to correct the air volume input for changes in the intake air temperature (air density) affecting the amount of fuel injected, ignition timing and Secondary Air Injection activation.
The ECM provides the power supply to the sensor which decreases in resistance as the temperature rises and vice versa. The ECM monitors an applied voltage to the sensor that will vary as air temperature changes the resistance value.
If this input is defective, a fault code will be set and the "Malfunction Indicator Light" will be illuminated when the OBD II criteria is achieved. The ECM will operate the engine using the Engine Coolant Sensor input as a back up.

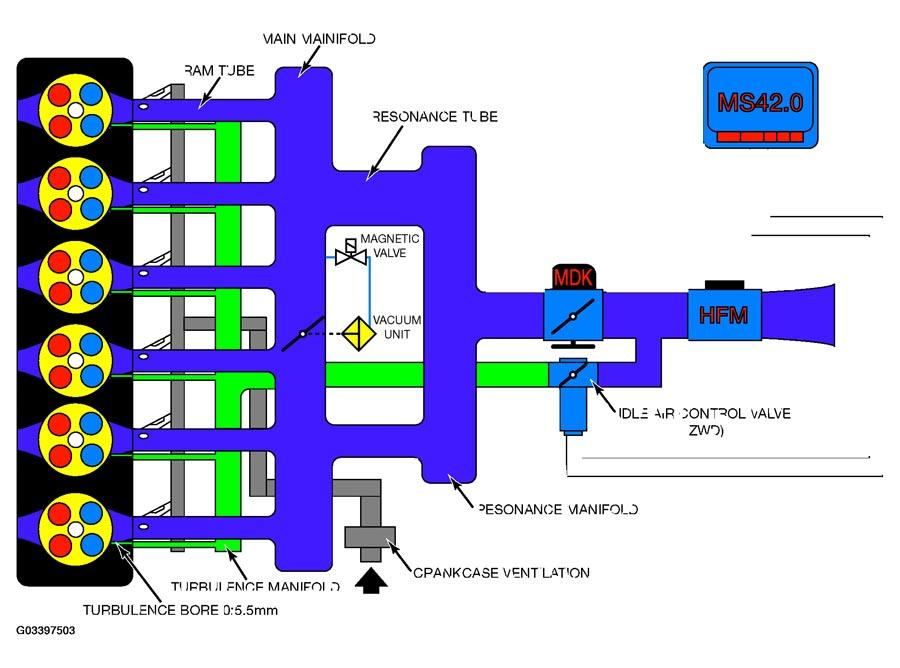

Resonance/Turbulence Intake System : On the M54, the intake manifold is split into two groups of three (runners) which increases low end torque. The intake manifold also has separate (internal) turbulence bores which channels air from the idle speed actuator directly to one intake valve of each cylinder (matching bore of 5.5 mm in the cylinder head).
Routing the intake air to only one intake valve causes the intake to swirl in the cylinder. Together with the high flow rate of the intake air due to the small intake cross sections, this results in a reduction in fluctuations and more stable combustion.
Resonance System : The resonance system provides increased engine torque at low RPM, as well as additional power at high RPM. Both of these features are obtained by using an ECM controlled resonance flap (in the intake manifold).
During the low to mid range RPM, the resonance flap is closed. This produces a long/single intake tube which increases engine torque.
During mid range to high RPM, the resonance flap is open. This allows the intake air to draw through both resonance tubes, providing the air volume necessary for additional power at the upper RPM range.

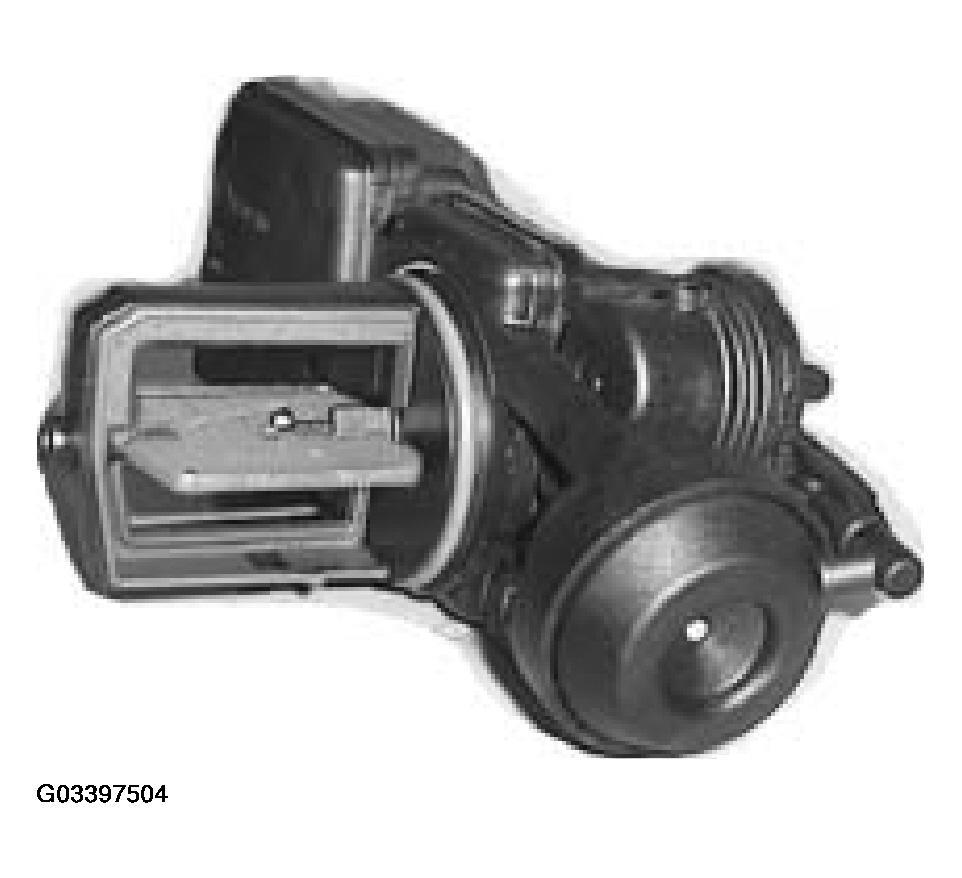

The Resonance Flap (shown on the right) is closed when vacuum is applied and sprung open. This is a unitized assembly that is bolted into the intake manifold.
The ECM controls a solenoid valve for resonance flap activation. At speeds below 3750 RPM, the solenoid valve is energized and vacuum supplied from an accumulator closes the resonance flap. This channels the intake air through one resonance tube, but increases the intake velocity.
When the engine speed is greater than 3750 RPM (which varies slightly - temperature influenced), the solenoid is de-energized. The resonance flap is sprung open, allowing flow through both resonance tubes, increasing volume.
When the flap is closed, this creates another "dynamic" effect.

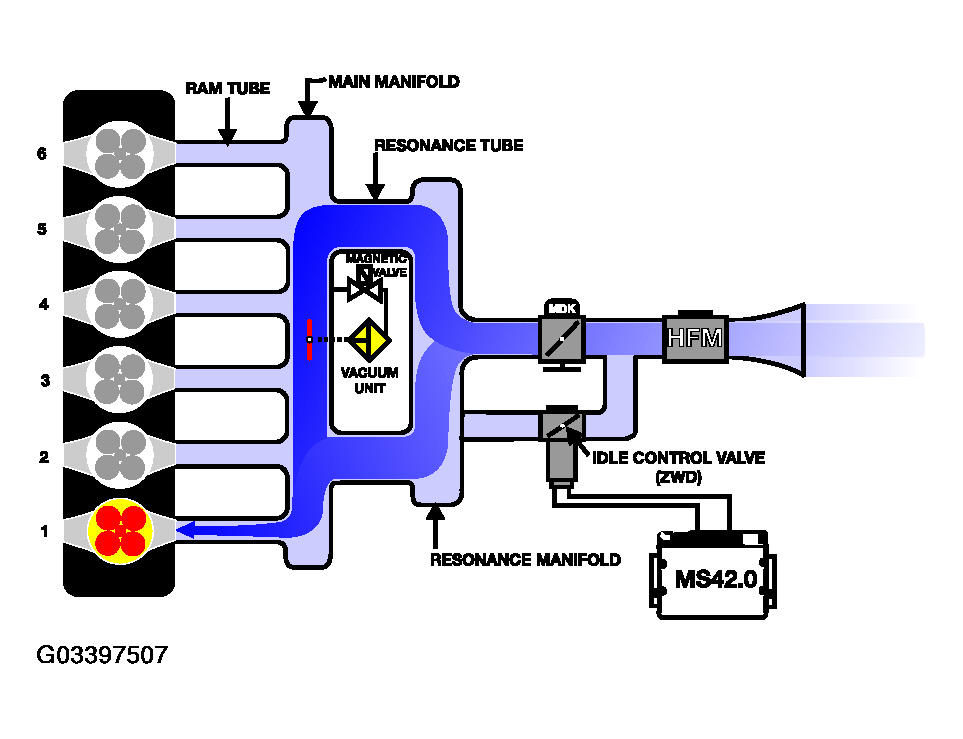

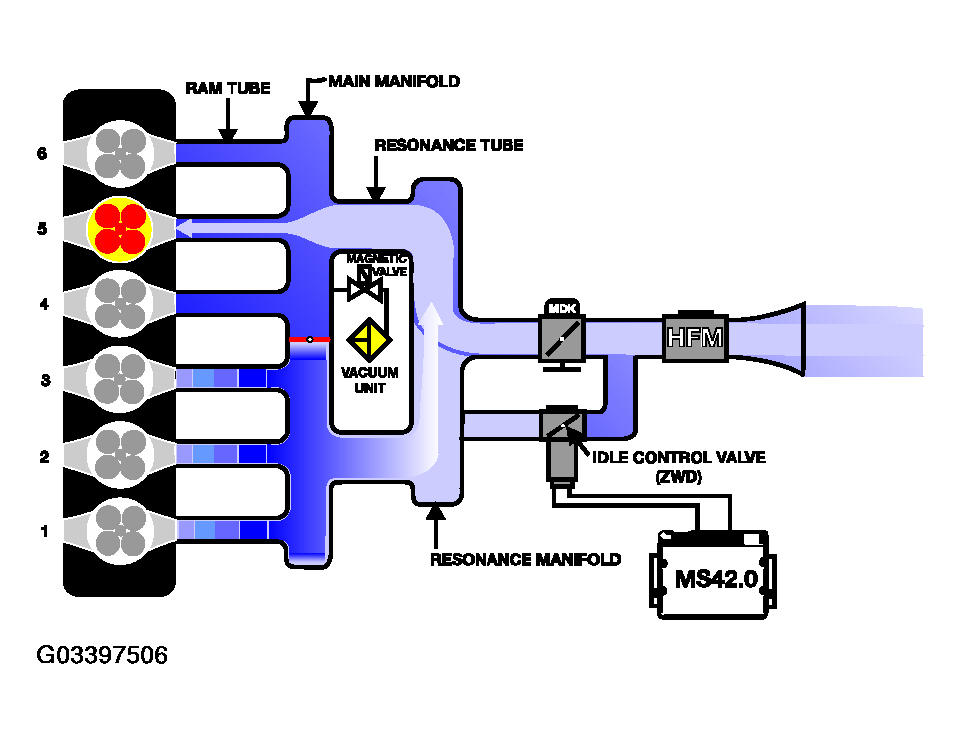

- #1 Cylinder Intake Valve open low to Mid Range RPM (< 3750 RPM).

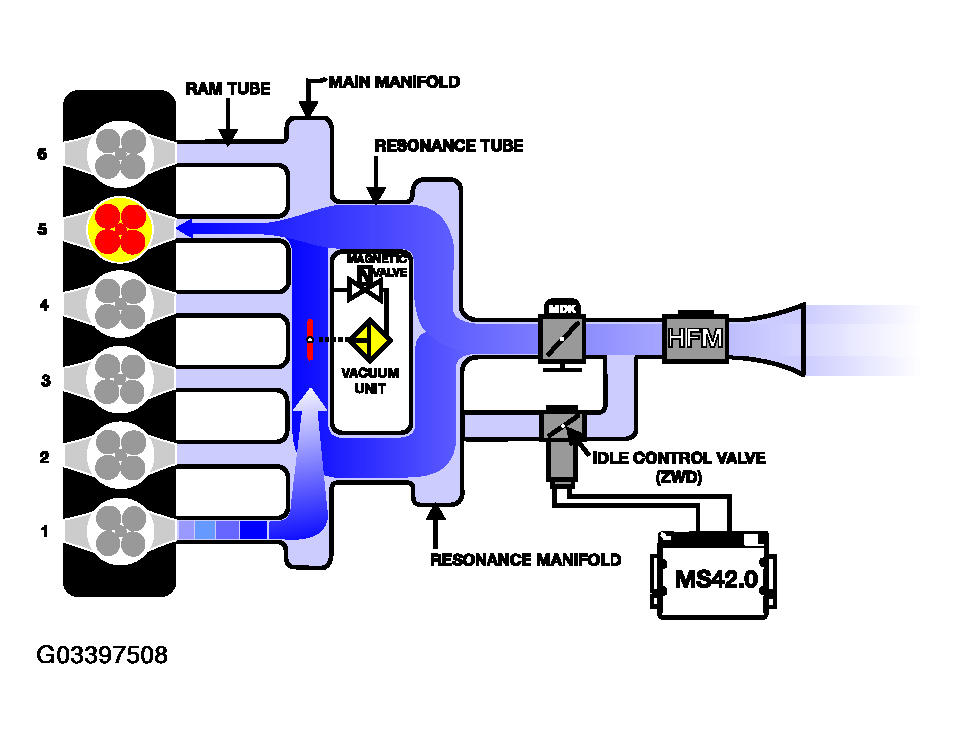

- #1 Cylinder Intake Valve closes #5 Intake Valve Open => Intake Air Bounce Effect low to Mid Range RPM (< 3750 RPM).
As the intake air is flowing into cylinder #1, the intake valves will close.
This creates a "block" for the in rushing air. The air flow will stop and expand back (resonance wave back pulse) with the in rushing air to cylinder #5.
- #1 Cylinder Intake Valve closes #5 Intake Valve Open => Intake Air Bounce Effect Low to Mid Range RPM (< 3750 RPM)).
The resonance "wave", along with the intake velocity, enhances cylinder filling.
When the engine speed is greater than 3750 RPM the solenoid is de-energized. The resonance flap is sprung open, allowing flow through both resonance tubes, increasing volume.

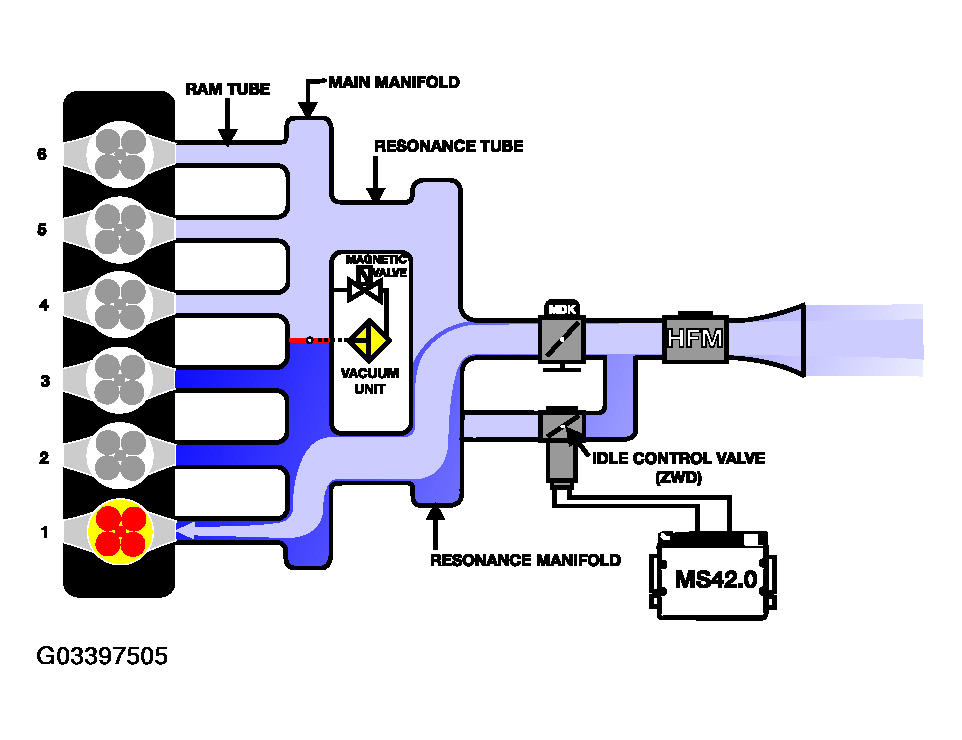

- #1 Cylinder Intake Valve Open - Intake air drawn from both resonance tubes. Mid to High Range (>3750 RPM)
- #5 Cylinder Intake Valve Open - Intake air drawn from both resonance tubes. Mid to High Range RPM (>3750 RPM).
The resonance "wave", along with the intake volume, enhances cylinder filling.
Pressure Control Valve : The pressure control valve varies the vacuum applied to the crankcase ventilation depending on engine load. The valve is balanced between spring pressure and the amount of manifold vacuum.

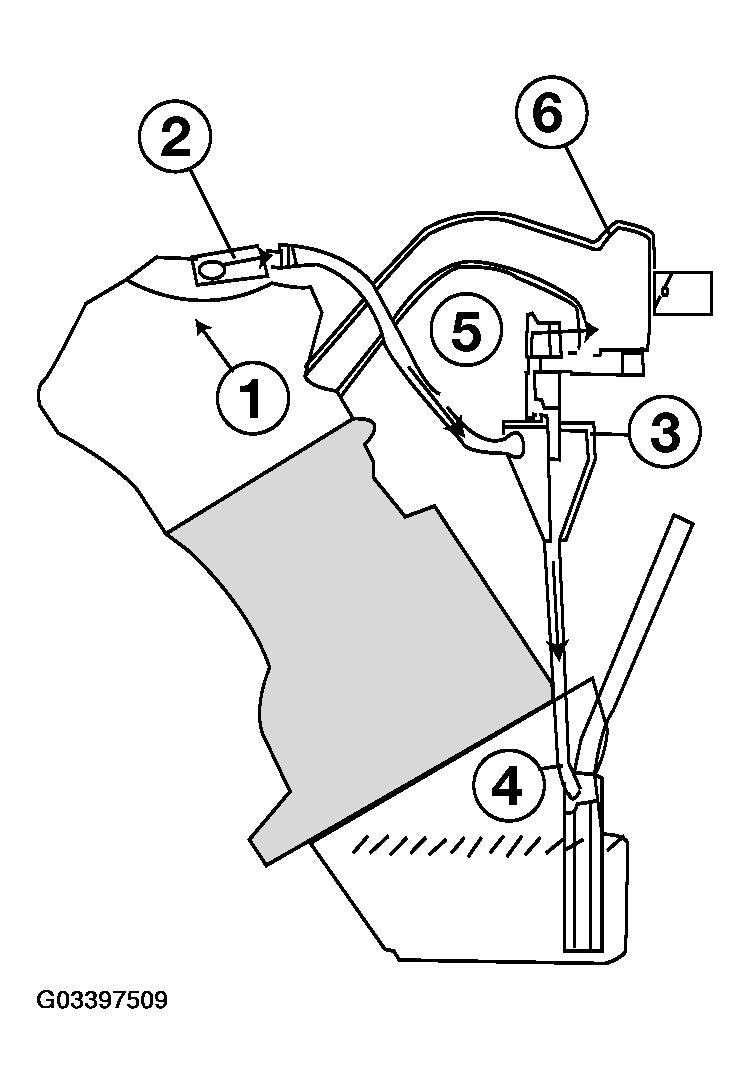

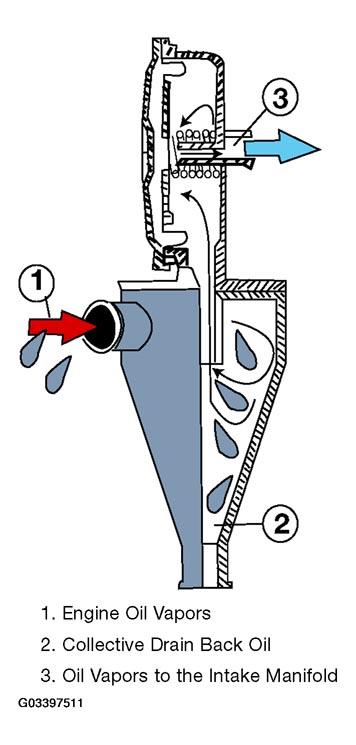

The oil vapors exit the separator labyrinth (2) in the cylinder head cover (1). The oil vapors are drawn into the cyclone type liquid/vapor separator (3) regulated by the pressure control valve (5).
The oil vapors exit the pressure control valve into the intake manifold. The collected oil will drain back into the oil pan (4).

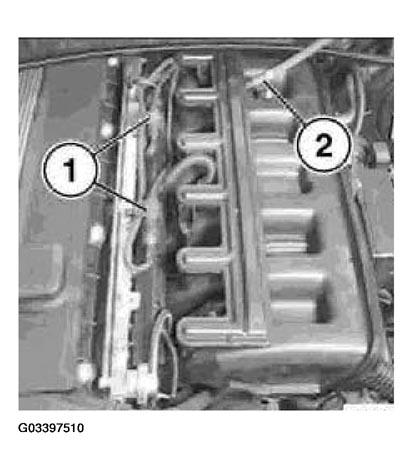

The vapors exit the pressure control valve and are drawn into the intake manifold through an external distribution tube (2). The tube has a splice at the front to equally distribute vapors to the back.
As the vapors exit the pressure control valve, they are drawn into the intake manifold through this external tube for even distribution.
At idle when the intake manifold vacuum is high, the vacuum reduces the valve opening allowing a small amount of crankcase vapors to be drawn into the intake manifold.
At part to full load conditions when intake manifold vacuum is lower, the spring opens the valve and additional crankcase vapors are drawn into the intake manifold.
