Solenoid Valves

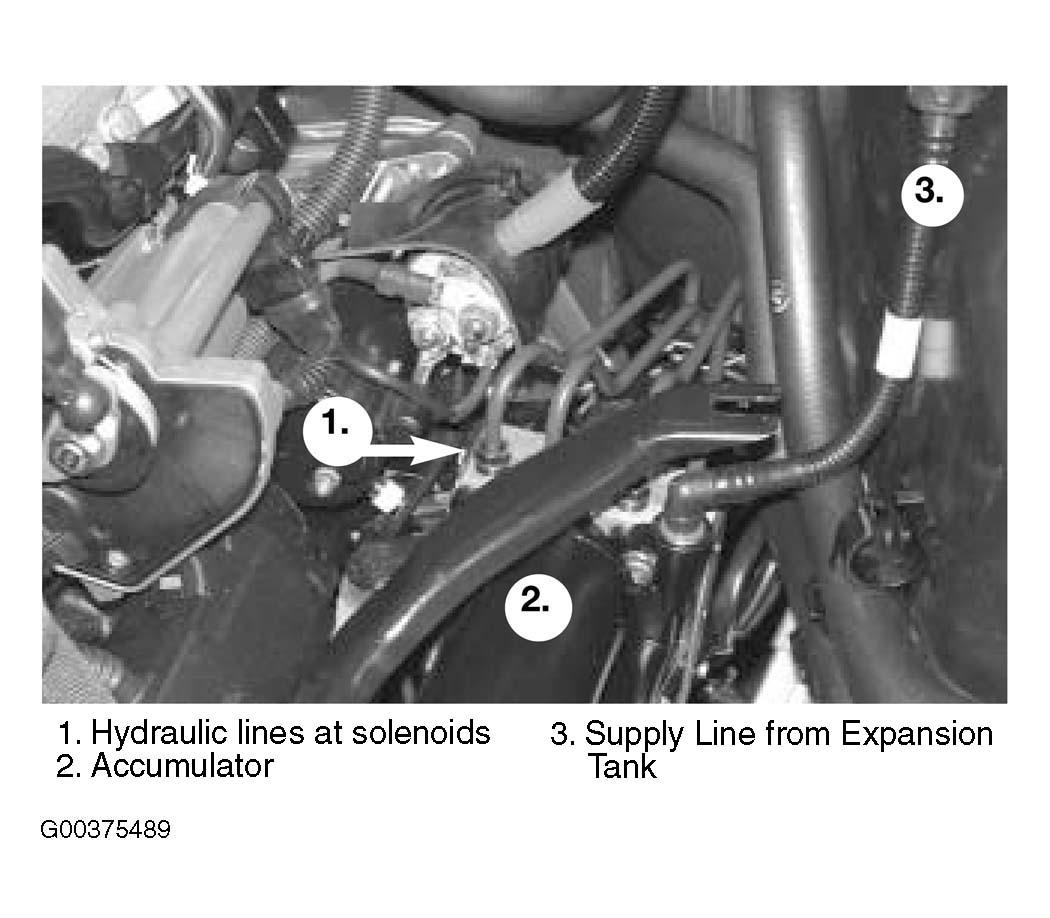

Four solenoid valves are installed in the hydraulic unit. Two of the solenoid valves are designed as proportional directional valves (one for clutch control and one for selection angle cylinder actuation). The other two solenoid valves are pressure control valves (both used for shift travel cylinder actuation). See Fig 1 .
