Rear Suspension Systems: Notes
BMW utilizes several different configurations for the rear suspension systems depending on the model and specific needs of the vehicle in terms of handling, ride and performance. Alignment angles are not adjustable on the early rear suspension systems. The Central "C" Link rear suspension and the Integral Link rear suspension have adjustable Camber and Toe. The different rear suspension systems used include:
- Semi-Tailing Arm - E30, E36/5 318ti and E36/7 Coupe and Roadsters
- Semi-Trailing Arm with Track Link - E32, E34, E28, E24

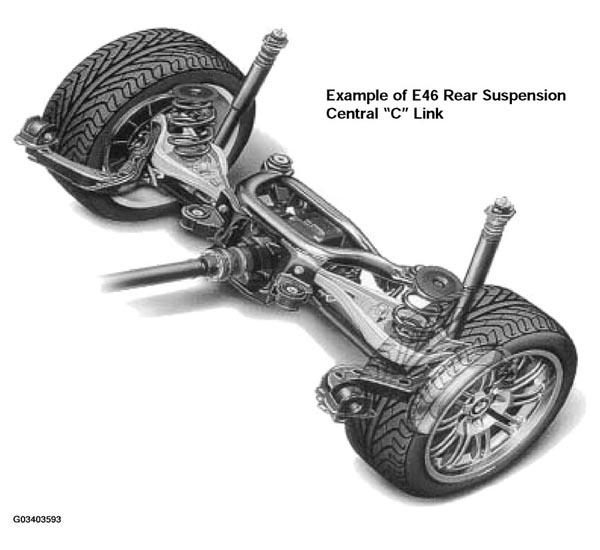

- Central "C" Link - E36, E46 and E85
- Integral Multi-Link - E38, E39, E31, E53, E65, E66 and E52.
