Tool Modification (04 32 03)

Publication date: 2003-12-01
Reference number: 04 32 03

TOOL MODIFICATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 32 03, Date of Issue: December 2003

BMW:	E46
GROUP:	04 - Tools and Equipment

SUBJECT

Tool Modification

MODEL

E46

INFORMATION

Distribution of the following tool will not be through the Automatic Tool Shipment Program. Modification to special tool 90 88 6 323 090 is necessary in order to prevent damage to the E46 ball joint boot and stainless steel washer.

TOOL INFORMATION

Ball joint press modification

PN 90 88 6 323 090

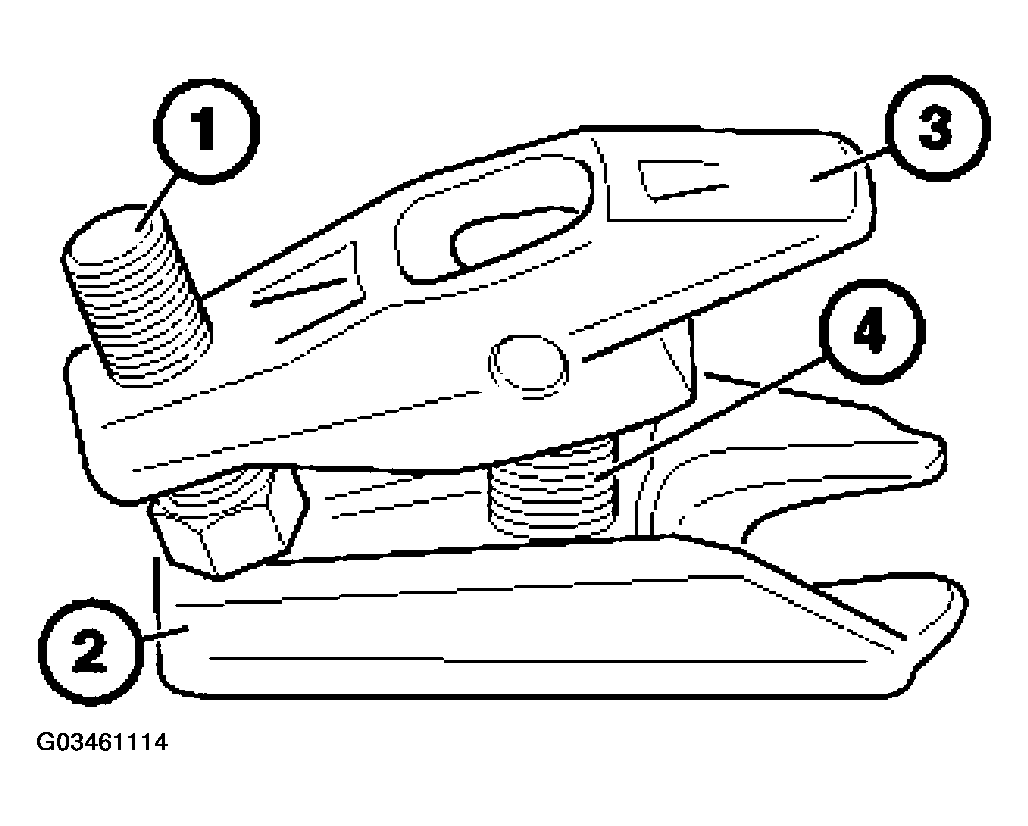

Fig 1: Ball Joint Press

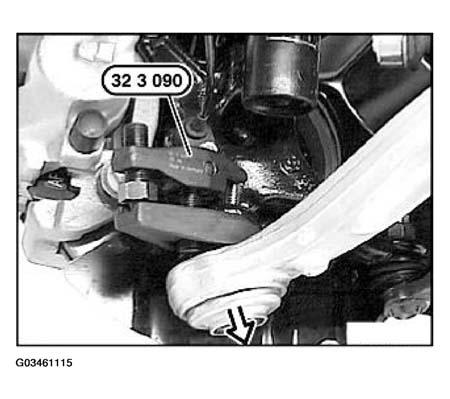

This tool is used to remove the control arm Disassembling . Refer to repair manual section 31 21 080.

Fig 2: Removing Control Arm

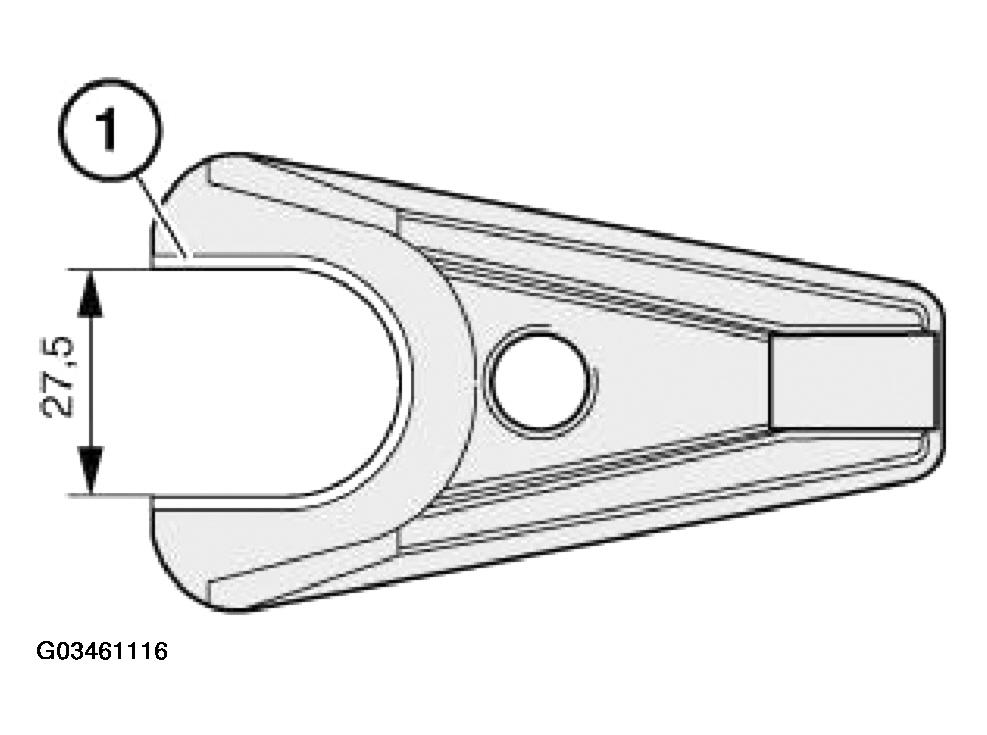

The modification pertains only to the lower section of the tool (PN 323 092). The opening is enlarged to 27.5mm and a chamfer (1) 1.5mm deep and at a 45 angle is applied.

Fig 3: Ball Joint Press Modification
