50-AMP CLAMP FOR GT1

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI B 04 16 04, Date of Issue: August 2004

BMW:	All
GROUP:	04 - Tools and Equipment

SUBJECT

50-amp clamp for GT1

SITUATION

Distribution of the following 50-amp clamp is through the Automatic Tool Shipment Program. One clamp will be distributed to every center. Additional clamps (for additional GT1's and Satellite locations) may be purchased through your PDC.

50 amp clamp

PN 81 35 0 154 647

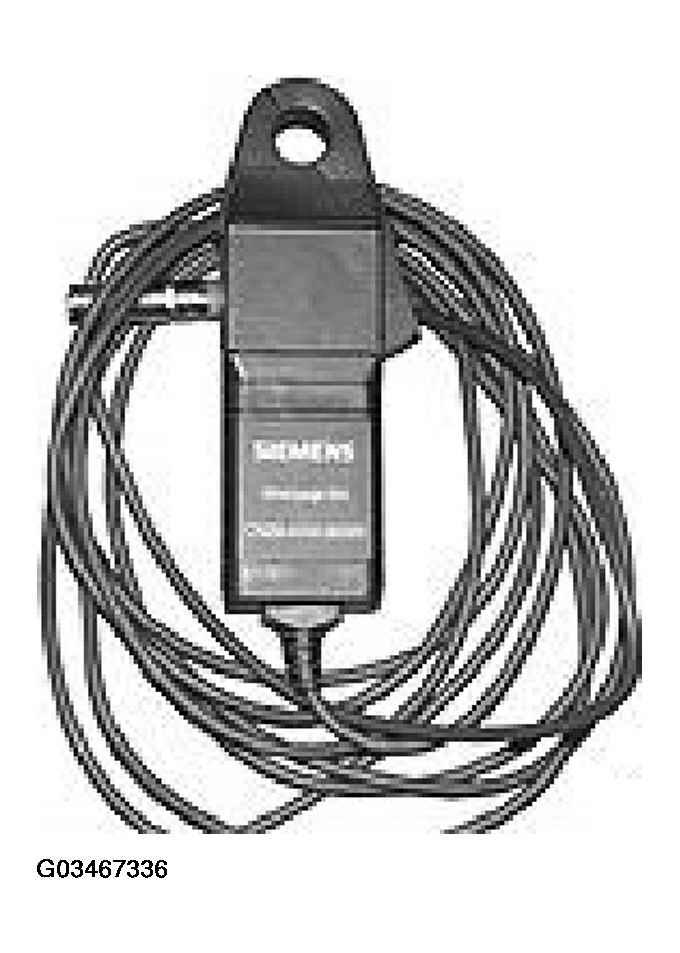

Fig 1: 50 Amp Clamp

Fig 2: GT1 Measurement Interface Box And Trolley

The 50-amp clamp is used with the GT1, Measurement Interface Box (SI B08 02 04 ) and the GT1 Trolley (SI B08 01 04 ) to conduct accurate closed circuit current measurements (SI B61 08 00 ) on BMW vehicles. The clamp is attached to MIB port "SZ50" (2) and is stored on the Trolley storage rack (8). The 50-amp clamp connector is a push-pull connector and can be removed or installed during testing.

This clamp does not work with the DISplus. Previously distributed (SI B04 07 01 ) DISplus 50 amp clamp (PN 81 31 9 424 033) must be used with the DISplus.

WARRANTY INFORMATION

Refer to Parts Information bulletin 01 01 95 for tool warranty details.
