12 31 ... Replacing Alternator Belt Pulley

Special Tools Required:

• 12 7 110

Remove and install alternator drive belt.

Depending on alternator type, grip shaft with:

• Hexagon socket.
• Multi-tooth socket or,
• Torx socket wrench.

Release nut with special tool 12 7 110.

Installation:

Tightening torque, refer to 12 31 2AZ/12 31 3AZ in ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

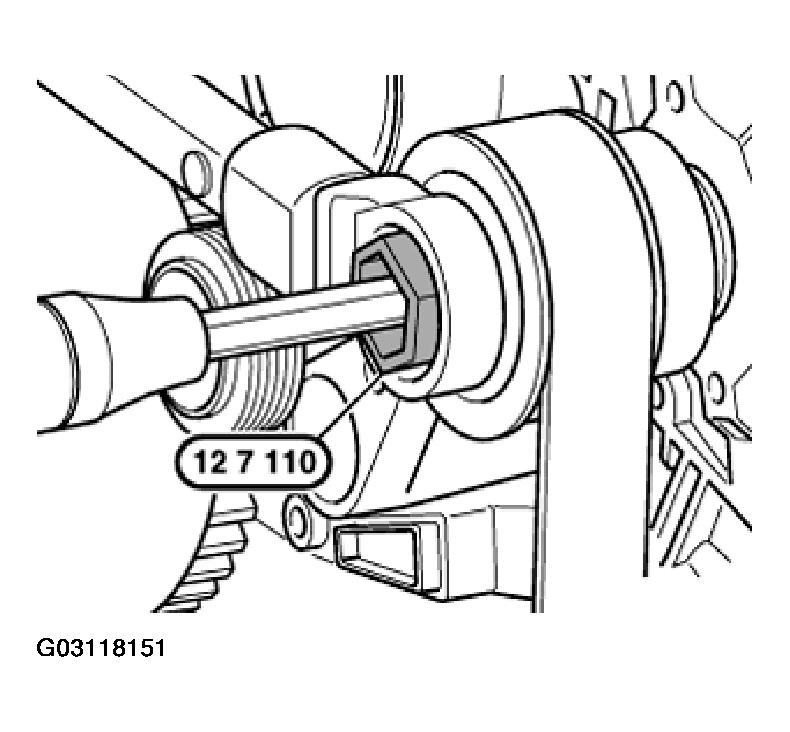

Fig 1: Releasing Nut With Special Tool 12 7 110

Courtesy of BMW OF NORTH AMERICA, INC.
