BUS Schematic

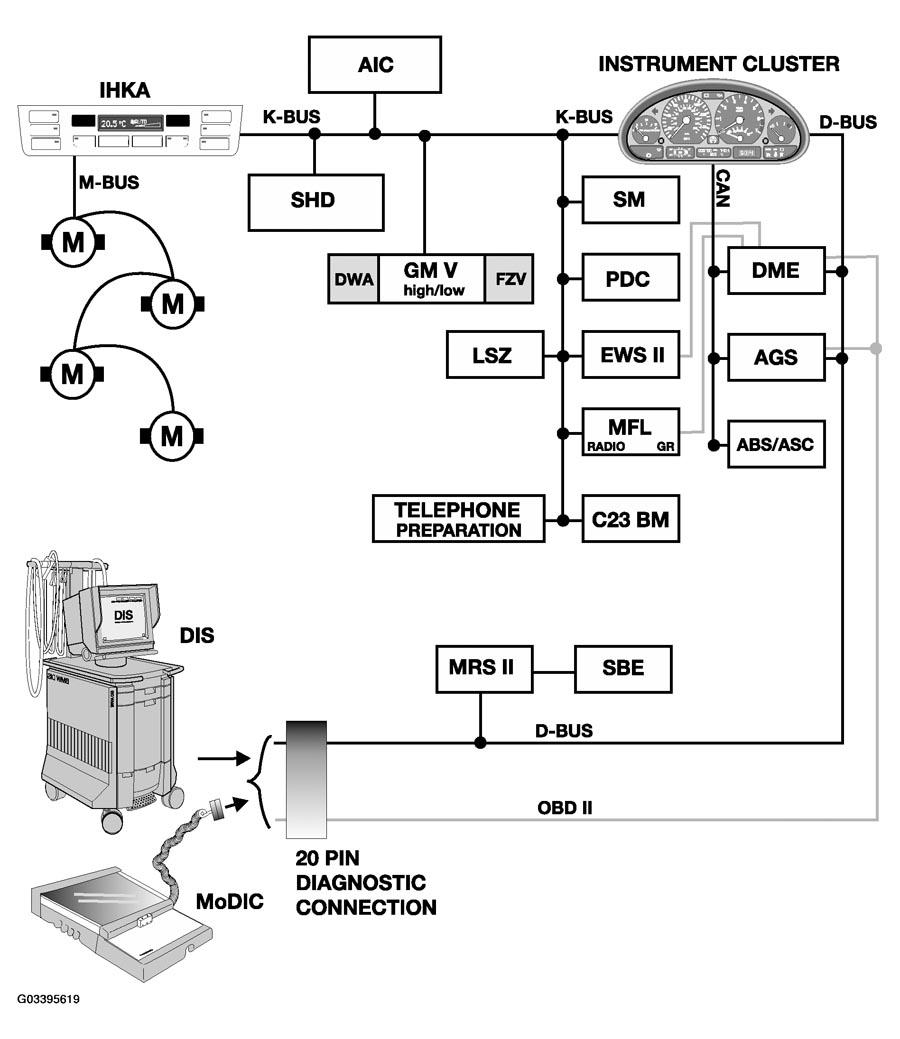

Fig 1: E46 Bus Systems Schematic Diagram

G03395619

Courtesy of BMW OF NORTH AMERICA, INC.
