CAN Interface

The DSC control module communicates over the CAN line for the following:

• Steering angle from the steering angle sensor
• Engine control module for engine intervention
• Transmission control module for shift intervention
• Instrument cluster for illumination of the warning indicator lamps

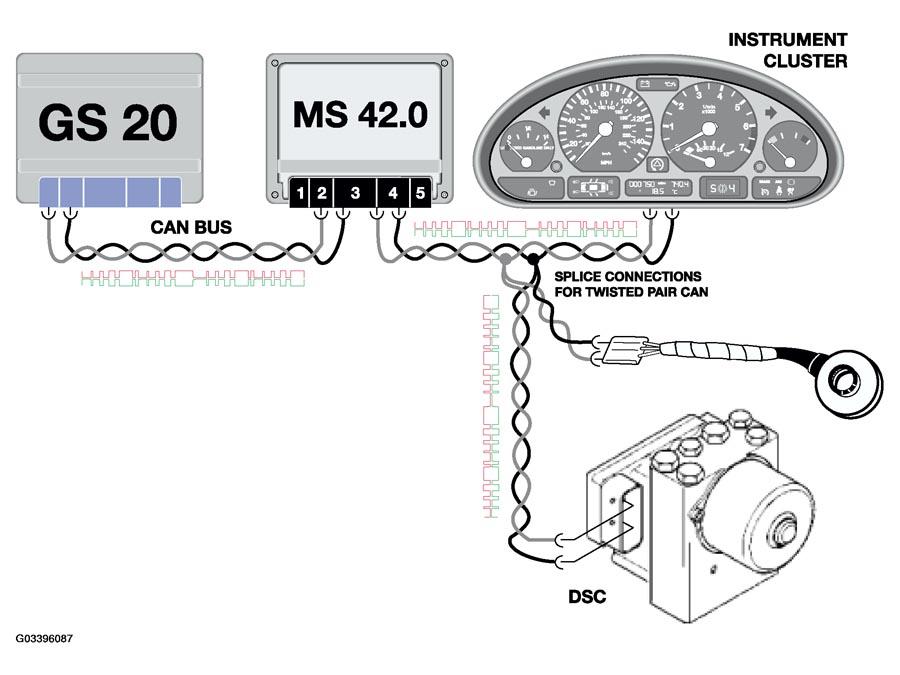

  Fig 1: DSC Control Module Communication Over CAN Line

  Courtesy of BMW OF NORTH AMERICA, INC.
