Brake Pressure Sensor

The brake pressure sensor is mounted on the DSC hydraulic unit in the front axle circuit. The sensor is provided with a 5V reference voltage by the DSC control unit.

The sensor provides the control unit with an analog signal proportional to brake pressure.

Voltage increases with increasing brake pressure.

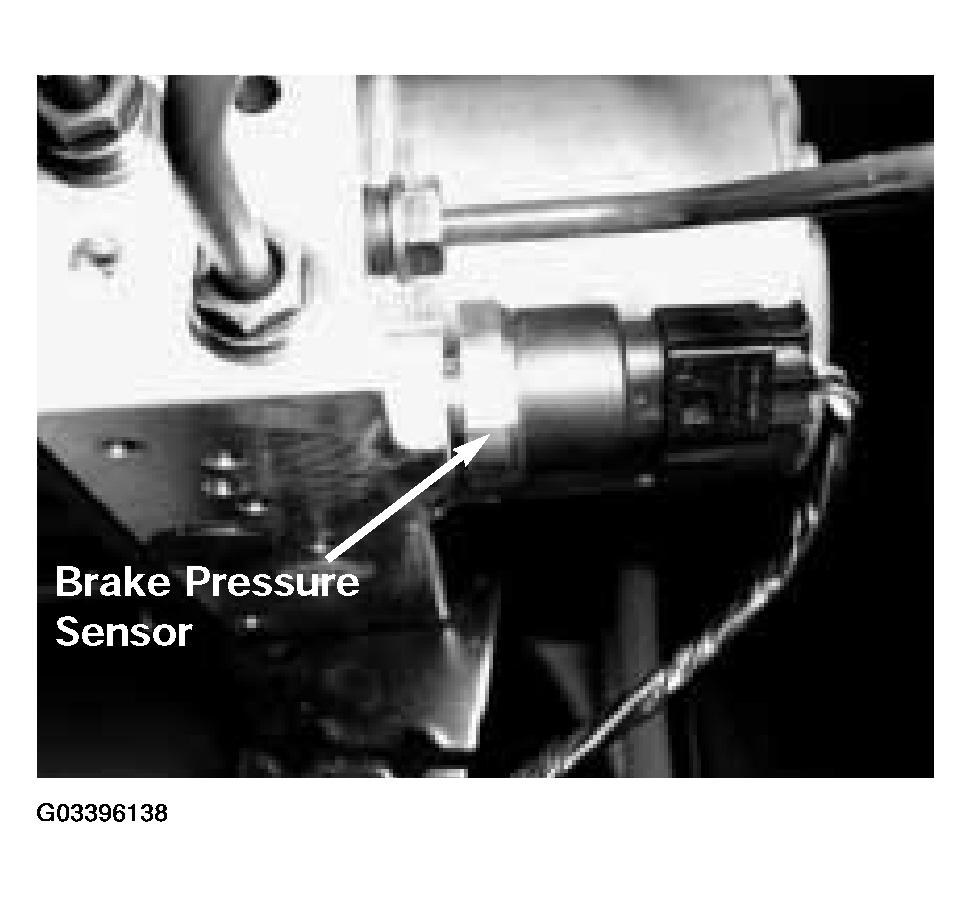

Fig 1: Identifying DSC III 5.7 Brake Pressure Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
