61 13 ... Base of tab connector housings

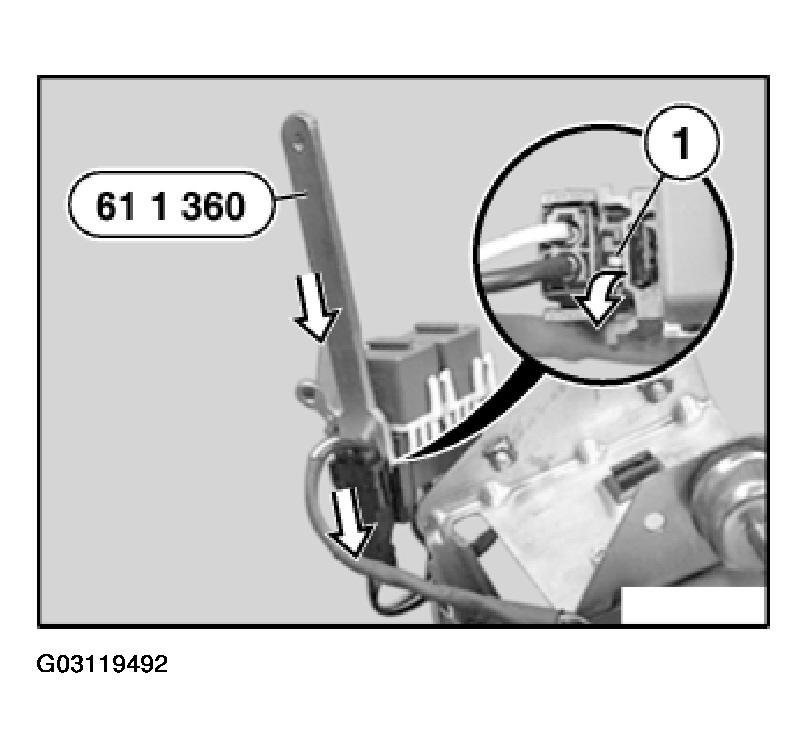

Unlock hook (1) with special tool 61 1 360 and slide plug housing downwards out of base.

Fig 1: Unlocking Hook
G03119492Courtesy of BMW OF NORTH AMERICA, INC.
