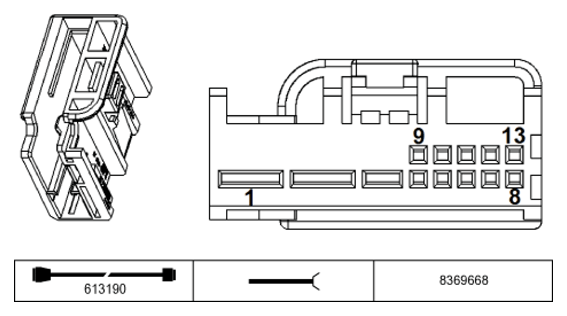

Sunroof Module X916 Connector End View
Pin Assignments X916
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Supply, terminal 30 | Fuse F66 |
| 2 | M | Ground | Ground point |
| 3 | Not occupied | ||
| 4 | E | Ground Sunroof switch | Sunroof switch |
| 5 | E | Signal, sunroof switch | Sunroof switch |
| 6 | E | Signal, sunroof switch | Sunroof switch |
| 7 | E | Signal, sunroof switch | Sunroof switch |
| 8 | A | Signal, locator lighting | Sunroof switch |
| 9 | Not occupied | ||
| 10 | Not occupied | ||
| 11 | Not occupied | ||
| 12 | A/E | Signal, CAN-bus | CAN-bus connector |
| 13 | A/E | Signal, CAN-bus | CAN-bus connector |
