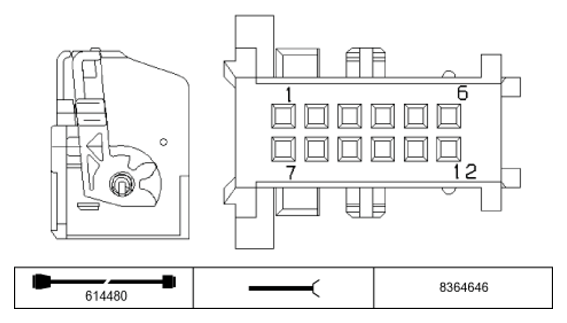

Park Distance Control Module (PDC) X300 Connector End View
Pin Assignments X300
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | E | Supply Park distance control module (PDC) | Power module |
| 2 | E/A | Signal, CAN-bus | CAN-bus connector |
| 3 | E | Signal, PDC switch | Switch, park distance control (PDC) |
| 4 | Not occupied | ||
| 5 | Not occupied | ||
| 6 | M | Ground | Ground point |
| 7 | Not occupied | ||
| 8 | E/A | Signal, CAN-bus | CAN-bus connector |
| 9 | A | Signal, LED PDC switch | Switch, park distance control (PDC) |
| 10 | Not occupied | ||
| 11 | Not occupied | ||
| 12 | Not occupied |
